Wilwood 120-8374 PS 1 LH Caliper, 1.12 Inch Pistons / .190" Disc
Wilwood 120-8374 PS 1 LH Caliper, 1.12 Inch Pistons / .190" Disc

Wilwood 120-8374 PS 1 LH Caliper, 1.12 Inch Pistons / .190" Disc

Micro Sprint, Mini Sprint, Quarter Midget, Two Caliper Pistons, 0.19" Rotor Thickness, Aluminum

0 Reviews | 0 Answered Questions
In Stock
Can Ship FREE
Select your vehicle to verify fitment.
Select Vehicle
Wilwood 120-8374 PS 1 LH Caliper, 1.12 Inch Pistons / .190" Disc
Wilwood 120-8374 PS 1 LH Caliper, 1.12 Inch Pistons / .190" Disc
X
Zoomed In Image
Part # 8351208374
Save 7%
$84.99
$91.74
each
Quantity:
Add to Cart
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles

Important Messages:

  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.

Details

Caliper Pistons:
Two
Rotor Thickness:
0.19"
Material Type:
Aluminum
Finish:
Clear Anodized
MFG. Part #:
120-8374
Bore Size:
1.12"
Color:
Natural
Centerline of Holes:
2.50"
Thread Pitch:
M10 x 1.25
Rotor Diameter:
9 Inch
Caliper Mounting Type:
Lug
Mounting Side:
Left Hand
Total Piston Area:
0.99 sq. in.
Mount Hole Size:
0.32"
Mounted Height:
1.22"
Pad Area:
2.00 sq. in.
Pad Volume:
0.36 cu. in.
GTIN Code:
889545006162
Position:
Left

Info

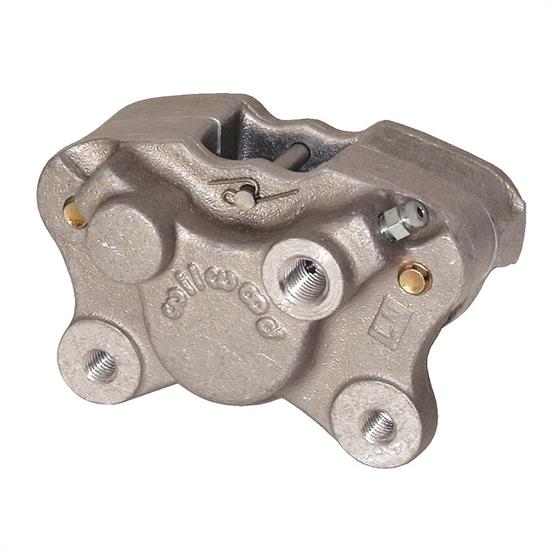

The PS-1 Caliper is compact, lightweight (.93 pounds) and combines the strength of cast aluminum construction with a sleek low profile design. This caliper utilizes two stainless steel deep cup pistons to minimize heat transfer from the .30 thick pad to the brake fluid while employing high temperature square piston seals to control piston retraction. Internal crossover brake fluid passages eliminate the use of external crossover tubes. The PS-1 fits rotors with diameters ranging from 6.00 to 9.00 , thickness sizes from .15 to .20 .
Some parts are not legal for use in California or other states with similar laws/regulations
