Wilwood 120-5456 PS 1 LH Caliper, 1.00 Inch Pistons / .200" Disc
Wilwood 120-5456 PS 1 LH Caliper, 1.00 Inch Pistons / .200" Disc
Micro Sprint, Mini Sprint, Quarter Midget, Two Caliper Pistons, 0.19" Rotor Thickness, Aluminum
In Stock
Can Ship FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select Vehicle
Wilwood 120-5456 PS 1 LH Caliper, 1.00 Inch Pistons / .200" Disc
X
Part # 8351205456
$84.95
$91.74
each
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles
Details
Caliper Pistons:
Two
Rotor Thickness:
0.19"
Material Type:
Aluminum
Finish:
Clear Anodized
Rotor Diameter:
9 Inch
Mounting Side:
Left Hand
Bore Size:
1.00"
Caliper Mounting Type:
Lug
Color:
Natural
Centerline of Holes:
2.50"
Thread Pitch:
1/8-27 NPT
Total Piston Area:
0.79 sq. in.
Mount Hole Size:
0.32"
Mounted Height:
1.22"
Pad Area:
2.00 sq. in.
Pad Volume:
0.36 cu. in.
Position:
Left
MFG. Part #:
120-5456
GTIN Code:
889545004137
Info

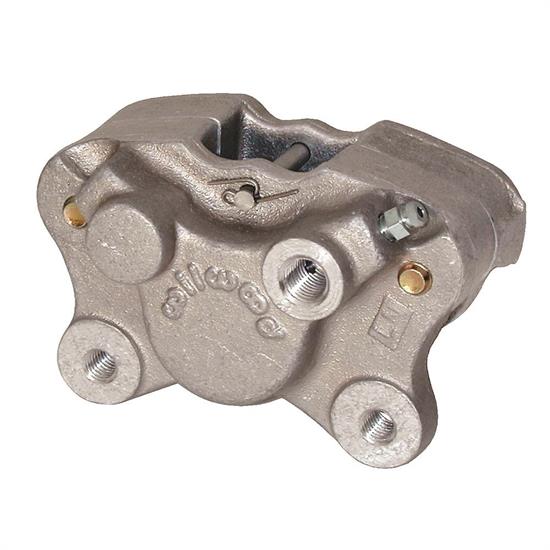

The PS-1 Caliper is compact, lightweight (.93 pounds) and combines the strength of cast aluminum construction with a sleek low profile design. This caliper utilizes two stainless steel deep cup pistons to minimize heat transfer from the .30 thick pad to the brake fluid while employing high temperature square piston seals to control piston retraction. Internal crossover brake fluid passages eliminate the use of external crossover tubes. The PS-1 fits rotors with diameters ranging from 6.00 to 9.00 , thickness sizes from .15 to .20 .
Important Messages
- Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
Some parts are not legal for use in California or other states with similar laws/regulations
