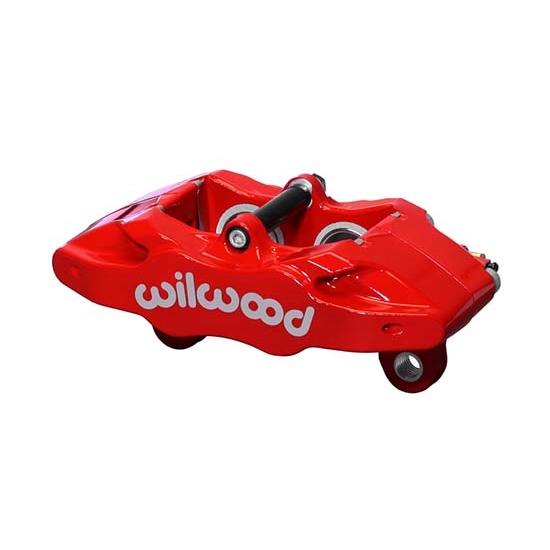

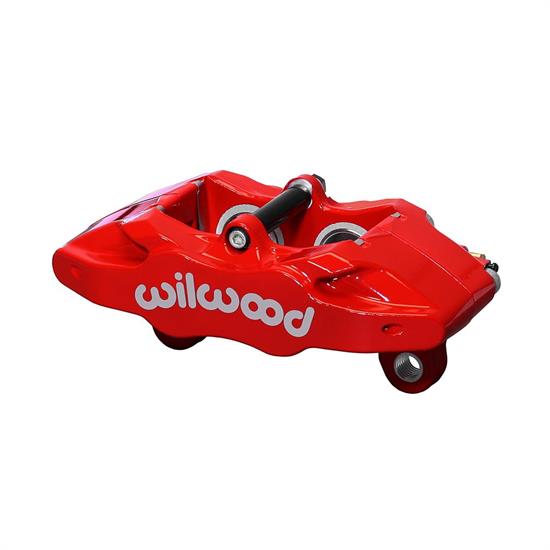

Wilwood 120-13916-RD DPC56 Red Caliper for 1.04 Inch Rotor
Wilwood 120-13916-RD DPC56 Red Caliper for 1.04 Inch Rotor

Wilwood 120-13916-RD DPC56 Red Caliper for 1.04 Inch Rotor

Four Caliper Pistons, Powder Coated, Red, 12 Inch Rotor Diameter, Lug Caliper Mounting Type

0 Reviews | 0 Answered Questions
Factory Shipped
Ships FREE
Select your vehicle to verify fitment.
Select Vehicle
Wilwood 120-13916-RD DPC56 Red Caliper for 1.04 Inch Rotor
Wilwood 120-13916-RD DPC56 Red Caliper for 1.04 Inch Rotor
Zoomed In Image
We estimate this item will ship on or before August 22nd.
Part # 83512013916RD
$291.99
each
Quantity:
Add to Cart
Call to Order
Add to Buildlist
Compare

Details
Reviews
Q&A
Videos & Articles

Important Messages:

  • This item ships directly from the manufacturer. It may take an additional 3 business days for Wilwood to ship this item.
  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
  • This item ships via Ground Shipping only. Expedited and Air shipping options are not available.

Details

Caliper Pistons:
Four
Finish:
Powder Coated
MFG. Part #:
120-13916-RD
Color:
Red
Sold in Quantity:
Each
Rotor Diameter:
12 Inch
Caliper Mounting Type:
Lug
Mounting Side:
Universal
Total Piston Area:
2.46 sq. in.
Pad Area:
5.1 sq. in.
Pad Volume:
1.71 cu. in.
Mount Type:
Lug
Caliper Type:
DPC56
Caliper Finish:
Powder Coated
Piston Type:
Stainless
GTIN Code:
889545071085

Info

Wilwood has engineered this DPC56 rear caliper to be high performance and custom replacement for Corvettes and hot rods using Corvette suspension. These calipers add high-tech styling and provide the positive response & balance pad loading provided by a fixed mount, four piston caliper. These rear calipers are direct bolt-on replacements for the OE calipers on all models of 1997-2004 C5's and all base model 2005-2013 C6's using 12" diameter front rotors. You won't have to worry about fitment as the calipers attach directly to the Corvette spindle without the need for brackets or adapters and accept all types of OE banjo bolt style brake hoses.

The DPC56 rear caliper is based on the top performing DynaPro low profile caliper series. These rear calipers feature an ultra-high strength forged aluminum body, stainless steel pistons, internal bore seals, internal piston damping springs, stainless steel bridge wear plates, and a single screw bleed system. These front calipers accept the same type 4812 12mm thick brake pads as used in all DynaPro series calipers.



The OE piston volume is matched with these DPC56 rear calipers. This makes the calipers fully compatible with the output of the OE master cyluinder and ABS system. In addition, front to rear brake bias and pedal travel remain as stock. If you're doing a custom build, the caliper volume is also easily matched to other styles of manual or power brake pedals with proper master cylinder sizing.



Internally, all surfaces and passages are anodized to provide corrosion resistance with a durable wear surface for stainless pistons inside. Externally, these front calipers are finished with a high gloss protective powder coating process that is both brake fluid and heat resistant for extra corrosion resistance. These calipers will look as great as they will perform for many miles to come.



  • Piston Count: 4
  • Piston Area: 2.46"
  • Piston Type: Stainless
  • Mount Type: Lug
  • Material: Aluminum
  • Inlet Thread Size: M10 x 1.00
  • Mount Side: Universal
  • Mount Center: 5.04"
  • Weight: 6.3lbs
  • Finish: Red Powder Coat

Mount Dimensions (GIF)

Rotor Compatibility-

  • Rotor Width: 1.04"
  • Max. Rotor Width: 1.04"
  • Min. Rotor Width: 0.98"
  • Max. Rotor Diameter: 12"
  • Min. Rotor Diameter: 12"

Piston Specifications-

  • Piston 1 Bore: 1.25"
  • Piston 2 Bore: 1.25"
  • Total Piston Area: 2.46"

Brake Pad Specifications-

  • Brake Pad Type 1: 4812
  • Total Pad Area: 5.1"
  • Total Pad Volume: 1.71"



Wilwood fitment note: These DPC56 calipers have been checked to clear Z06 model wheels. All other OE production and aftermarket wheels should be checked for proper clearance prior to installation. Wheel spacers may be required on some applications. Please refer to the wheel clearance diagram for additional information on backdrop spacing and radial clearance requirements.



Application

  • Chevrolet Corvette 2009-2013 Base
  • Chevrolet Corvette 1997-2004 C-5 & Z06
  • Chevrolet Corvette 2005-2008 C-6 - Base
Some parts are not legal for use in California or other states with similar laws/regulations
