Product Summary

Universal Fit, Four Caliper Pistons, 1.75" Bore Size

    Key Specs

    MFG. Part #120-13844-P
    Caliper PistonsFour

    Need To Know

    This Product Will Ship Free

    Shipping Policies & FAQs

    Quick and Easy Returns

    Return Policy

    Wilwood 120-13844-P Details

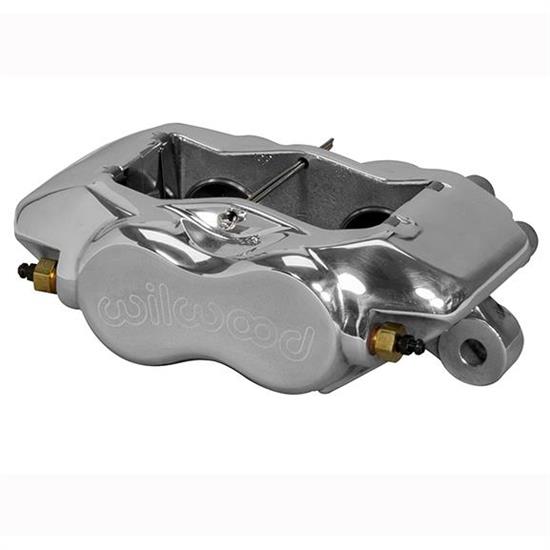

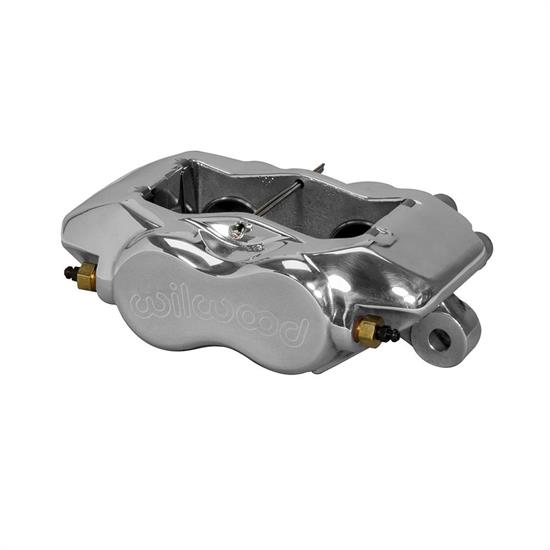

    The Forged Billet Dynalite Internal is the next generation enhancement of the venerable Forged Dynalite series calipers. Designed with a single split bridge and spacer less design to enhance strength and appearance. These latest applied developments and innovations in caliper design and manufacturing processes have resulted in substantial improvements in strength and performance over all comparable models. This new spacer-less design of the Forged Dynalite series of calipers, makes this the stiffest and most visual pleasing design so far.

    The Forged Billet Dynalite Internal is the strongest caliper in the class, with weights starting at 3.00 pounds. The process of stress-flow forging re-aligns the metal's grain structure within the contour of the caliper body. This process eliminates the breaks and interruptions to the internal grain structure that occur when machining a straight block billet. The FEA generated radial transition design eliminates steps and shoulders in the area between the piston housing body and the caliper bridges. Structural deflection and volume displacement tests have proven the Forged Dynalite to outperform all existing styles of this popular caliper size.

    *Note-Pads are not included.

    • Rotor Width: 0.81"
    • Piston Bore: 1.75"



    Driving Environment / Application Duty

    • Street Rods                (Heavy Duty)
    • Street Performance    (Heavy Duty)
    • Rally                           (Medium Duty)
    • Road Race                  (Medium Duty)
    • Late Model Dirt           (Heavy Duty)
    • Drag Racing               (Heavy Duty)
    • Northeast Modified     (Medium Duty)
    • Open Wheel               (Medium Duty)
    • Off Road                     (Medium Duty)

    Wilwood 120-13844-P Specifications

    MFG. Part #120-13844-P
    Caliper PistonsFour
    Caliper Mounting TypeLug
    Sold in QuantityEach
    Rotor Diameter13.06 Inch
    Mounting SideUniversal
    Bore Size1.75"
    Rotor Thickness0.81"
    Material TypeForged Aluminum
    Bore 2 Size1.75"
    Pad Area6.36 sq. in.
    Pad Volume2.1 cu. in.
    Mount TypeLug
    GTIN Code889545070972
