Product Summary

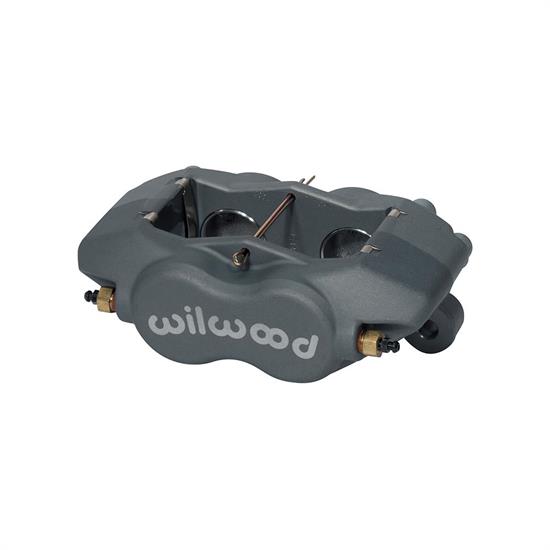

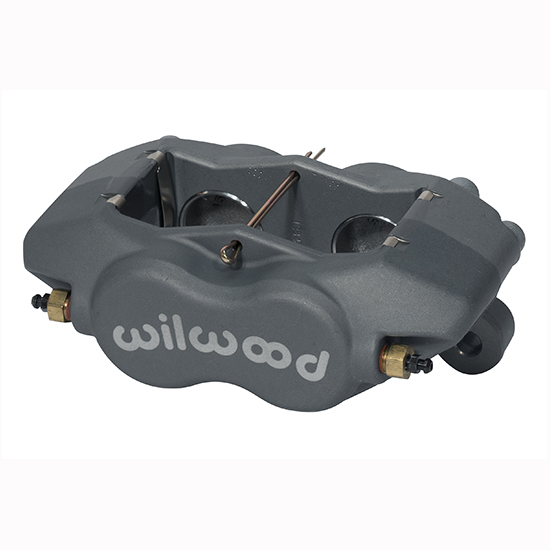

Universal Fit, Four Caliper Pistons, Forged Aluminum

    Key Specs

    MFG. Part #120-13844
    BrandWilwood

    Need To Know

    This Product Will Ship Free

    Shipping Policies & FAQs

    Quick and Easy Returns

    Return Policy

    Details

    The Forged Billet Dynalite Internal is the next generation enhancement of the venerable Forged Dynalite series calipers. Designed with a single split bridge and spacer less design to enhance strength and appearance. These latest applied developments and innovations in caliper design and manufacturing processes have resulted in substantial improvements in strength and performance over all comparable models. This new spacer-less design of the Forged Dynalite series of calipers, makes this the stiffest and most visual pleasing design so far.

    The Forged Billet Dynalite Internal is the strongest caliper in the class, with weights starting at 3.00 pounds. The process of stress-flow forging re-aligns the metal's grain structure within the contour of the caliper body. This process eliminates the breaks and interruptions to the internal grain structure that occur when machining a straight block billet. The FEA generated radial transition design eliminates steps and shoulders in the area between the piston housing body and the caliper bridges. Structural deflection and volume displacement tests have proven the Forged Dynalite to outperform all existing styles of this popular caliper size.

    *Note-Pads are not included.

    • Rotor Width: 0.81"
    • Piston Bore: 1.75"



    Application

    Driving Environment / Application Duty

    • Street Rods                (Heavy Duty)
    • Street Performance    (Heavy Duty)
    • Rally                           (Medium Duty)
    • Road Race                  (Medium Duty)
    • Late Model Dirt           (Heavy Duty)
    • Drag Racing               (Heavy Duty)
    • Northeast Modified     (Medium Duty)
    • Open Wheel               (Medium Duty)
    • Off Road                     (Medium Duty)

    Specifications

    KEY SPECS
    MFG. Part #120-13844
    BrandWilwood
    GENERAL
    Caliper PistonsFour
    Rotor Thickness0.81"
    Material TypeForged Aluminum
    FinishType III Anodized
    Rotor Diameter13.06 Inch
    ColorGray
    Pad Area6.36 sq. in.
    Pad Volume2.1 cu. in.
    Mount TypeLug
    GTIN Code889545070958
    Sold in QuantityEach
