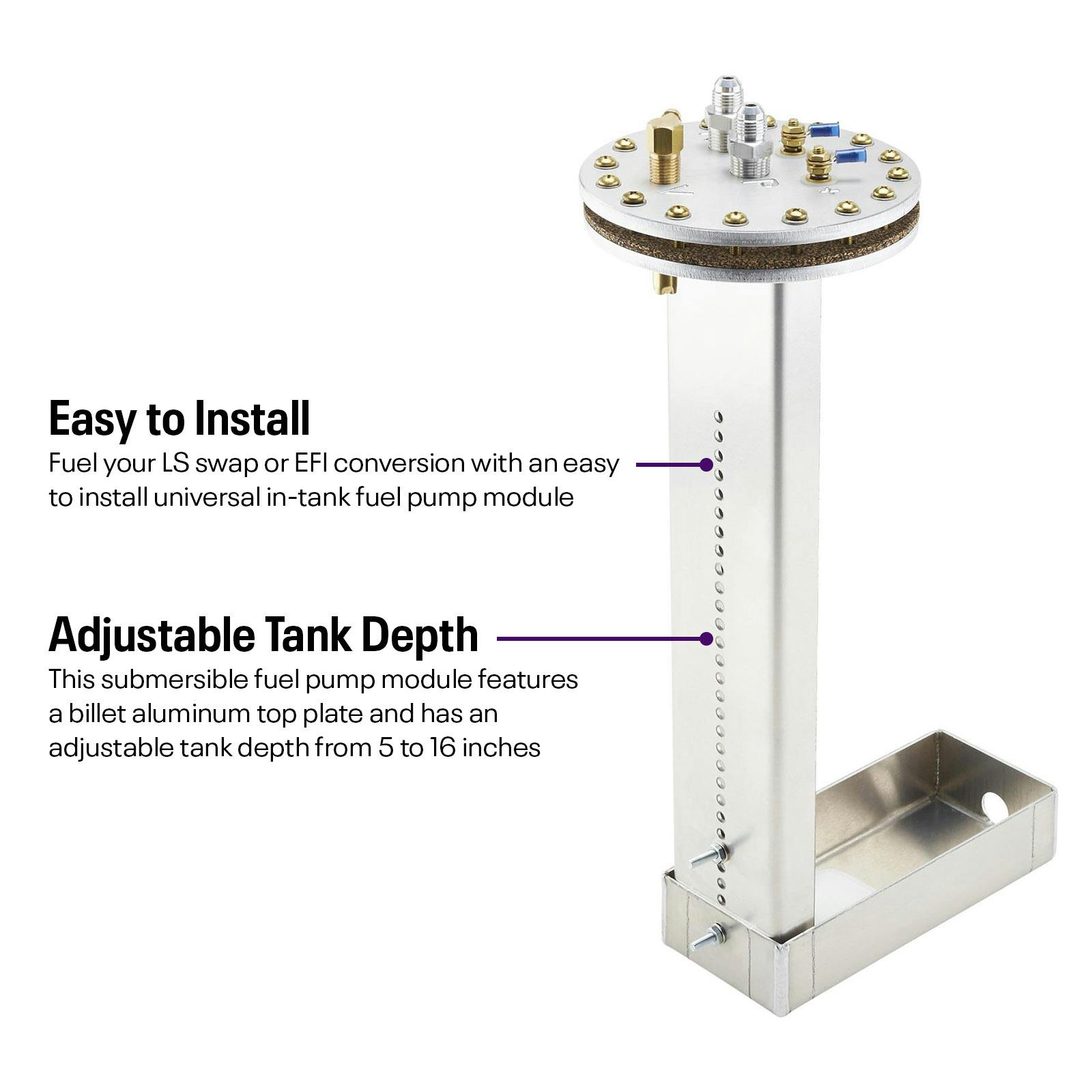

Universal In-Tank Electric Fuel Pump Module, Retrofit EFI/LS Swap

• Designed to retrofit into any tank with a suitable mounting surface
• Requires a minimum of 5-inches of tank depth for installation
• Fits tanks up to 16 inches deep and can be trimmed to length in 3/8-inch increments
• Supports fuel injected engines, including multiport and throttle body systems
• Perfect for LS swap fuel system needs and most factory or aftermarket EFI systems
• Works with all popular aftermarket EFI systems such as FiTech Go EFI and Holley Sniper
• 255 LPH Walbro gerotor style pump designed for return-style EFI system use only
• Built in reservoir eliminates fuel starvation and need for custom EFI fuel tank
• Suitable for use with non-ethanol fuels and standard pump gas (up to E-10)
• Not to be used for E85 fuel systems or in any “flex fuel” capacity
• Features high flow AN 6 inlet and outlet fittings with billet mounting plate
• Supports 500 plus horsepower, including low boost supercharger or turbo systems

Convert Your Muscle Car or Classic Truck Project to EFI With Our in Tank Fuel Pump

The efficiency and driveability of a electronic fuel injection system is certainly well known by enthusiasts. Once the initial hurdle of cost has been cleared the next set of questions are what EFI system to run based on application needs, how to provide suitable fuel flow and pressure to it, and how is it tuned. We’ll save the EFI system comparison for another time, but the fuel demand can easily be handled by retrofitting a universal in tank fuel pump to your existing fuel tank. Providing your existing tank is in good condition and has an available flat mounting surface for a retrofit in tank fuel pump mounting flange, our electric universal fuel pump kit will save you a lot of expense over the typical EFI fuel tank conversion kit.

Installing an inline electric universal fuel pump was the only option in the early days of EFI retrofits, but these frame rail mounted pumps often only solved one problem (providing EFI fuel pressure levels) while creating several new problems (pump noise, pump exposure to heat, mounting restrictions, low fuel levels creating inconsistent fuel pressure, and more!). The earliest in tank fuel pump solutions required an EFI specific fuel tank to retrofit, increasing cost. Many of these EFI retrofit fuel tanks were only available for popular models too. Great if you have a ’68 Mustang or ’69 Camaro, but not so great if you’re trying to add EFI to your ’63 Plymouth Valiant! Today’s universal in tank fuel pump retrofit modules are the best option to deliver the proper EFI spec fuel pressure to your fuel injection system. They eliminate fuel starvation, mounting issues, fuel pump noise, and all the other headaches a frame mounted pump used to cause.

Designed To Fit Most Factory Fuel Tanks or Fuel Cells

At the heart of our universal electric fuel pump in tank assembly is a genuine Walbro GSS340 gerotor-style submersible fuel pump. This fuel pump is rated for 255 LPH (67 GPH) and is an OEM level replacement fuel pump designed for a universal mounting solution. The pump is extremely quiet, allowing you to hear your tunes, your exhaust, or the person riding with you (if you so choose!) instead of the unruly growl of a frame mounted universal electric fuel pump. The gerotor design is highly efficient, creating superior suction on the inlet side for consistent fuel pressure. The Walbro GSS340 can support over 500 horsepower naturally aspirated and is also suitable for low boost applications. While tested to over 100 psi, this electric fuel pump with return line is a perfect for use as an EFI-rated pump and will last many years at the typical 40-60 psi of factory or aftermarket EFI systems. These pumps are perfect for use as your LS swap fuel pump kit. Note that we do not recommend this as an in tank fuel pump for carburetor applications.

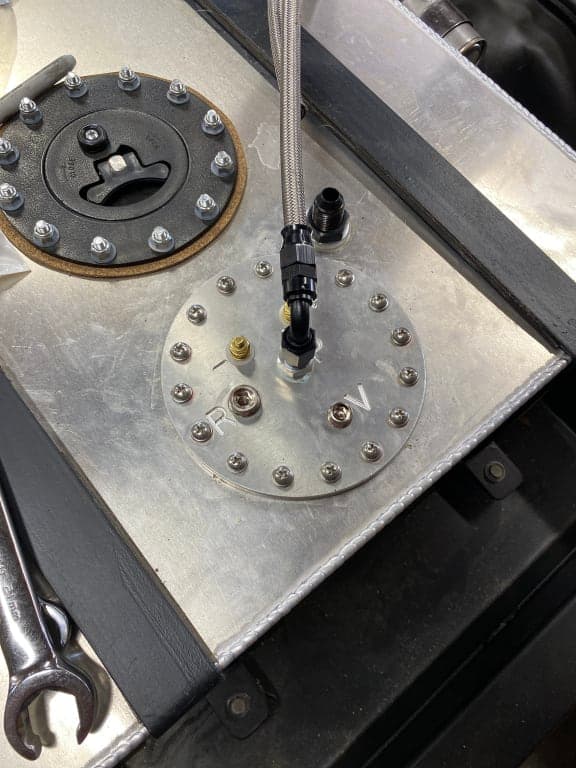

The rest of our universal electric fuel pump conversion kit consists of a billet aluminum mounting flange with mounting bracket (cut to fit for tank depth), a bolt on fuel pickup sump, AN 6 inlet and outlet fittings, as well as a vent valve, mounting hardware, and more. Unlike other products on the market that make do with 1/4-inch fittings that require NPT adapters, our AN 6 fittings provide a generous 3/8-inch feed and return for your EFI system. Furthermore, our billet mounting flange prevents confusion by providing engraved port identification right on the face of the flange. If you’ve ever mixed up your supply and return lines you know it can be a real head scratcher as to why your brand new EFI system will not run! We know we’ve mentioned it previously, but this truly is a great LS swap in-tank fuel pump kit solution.

Simple Installation Using Hand Tools with Just a Single Mounting Hole Required

Dedicated EFI fuel tanks are complicated affairs. They have welded in baffles, wiring bulkheads and pass through fittings, or large removable fuel pump modules. Some even require modifications to your frame or body for mounting. As we mentioned earlier, you’ll also only find them for the most popular applications, so if you’re blazing an unfamiliar trail or possibly fitting some obscure factory tank between your pinched and notched frame rails, using a retrofit in-tank fuel pump assembly kit like this is certainly your best answer.

As long as you have a suitable top surface that is flat with sufficient room for the mounting flange you’re good to go with a single 4-inch hole that is drilled with a common hole saw blade. This kit can certainly be used as a fuel cell intank pump conversion as well. The pump assembly can fit tank depths from 5 to 16 inches and the pump bracket can be trimmed in 3/8-inch increments to place the sump tray at the bottom of the tank. The sump tray prevents fuel starvation to the pump’s inlet by keeping the inlet filter screen submersed in fuel at all times, whether hard cornering, braking, or acceleration. You won’t have to worry about lean fuel conditions as the fuel tank level drops as you would with a frame rail mounted universal electric fuel pump conversion kit.

Connections are industry standard AN6 that allow you to plumb your fuel system with your choice of AN fittings and hose to your fuel rails and pressure regulator. A pressure regulator is required for this fuel pump on most EFI systems unless it is a throttle body based unit with built in regulator. A popular option is our Deluxe LS fuel filter and regulator combo. This provides a short return line path and provides the proper post pump filtration and the proper LS fuel pressure of 58 psi (the same pressure is used in most aftermarket EFI systems as well) without the need for the cost and mounting hassle of an external regulator. Installation can be handled in under an hour and our in tank fuel pump module is the perfect LS swap fuel system solution. Of course, it works well on just about any GM, Ford, or Mopar engine using stock or aftermarket EFI components.
