#120U101134

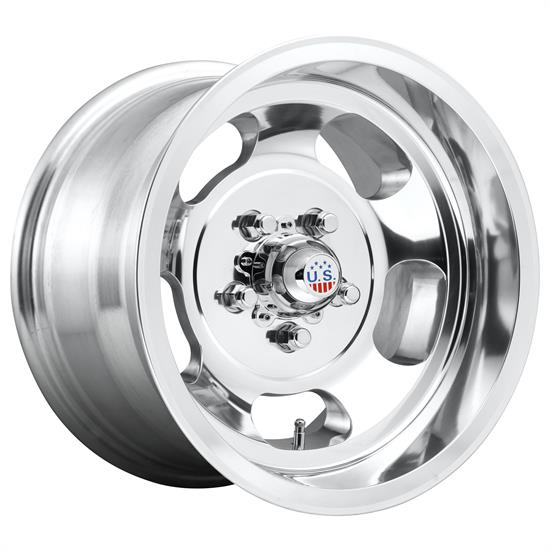

US Mags U10117008245 Indy Wheel, 17x10, High Luster Polished
- Features a lightweight, cast aluminum construction with a polished finish
- Has a wheel diameter of 17 Inches with a width of 10 inches
- They come pre-drilled with the 8x6.5 in. bolt pattern and is a true one piece construction
$417.00
/each
Factory Shipped
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Universal Fit, 17 Inch Wheel Diameter, 10" Width
- Features a lightweight, cast aluminum construction with a polished finish
- Has a wheel diameter of 17 Inches with a width of 10 inches
- They come pre-drilled with the 8x6.5 in. bolt pattern and is a true one piece construction
- Wheels have a 4.52" backspace and a -25mm offset
- Each wheel has a load capacity of 3,500 lbs. and weighs only 32 lbs.
Key Specs
| Wheel Diameter | 17 Inch |
| Width | 10" |
| Wheel Bolt Pattern (in.) | 8x6.5 in. |
| Wheel Bolt Pattern (mm) | 8x165.1 mm |
| Wheel Backspace | 4.52" |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicyUS Mags U10117008245 Details
US Mags U10117008245 Details
Founded during an era of history defining vintage racing and tradition - US Mags Custom Wheels offers a top of the line wheel product using modern manufacturing and tooling technology to recreate and reimagine the hottest classic wheel styles from the past. Founded by a family of hot rodders and racers, US Mags is committed to providing the best quality vintage wheels for your classic muscle car or hot rod restoration! US Mags Custom Wheels are available in a multitude of modern sizes, finishes, and built using various metals and manufacturing processes to provide a vast collection of wheel options to suite your needs; from the showroom floor to the dusty backroad cruises, US Mags Custom Wheels will keep you rolling!
- Features a Polished Finish
- Wheel diameter of 17 Inches with a width of 10 inches
- 8 X 6.5 Inch Bolt Pattern
- Made from Cast Aluminum
- 1-year warranty on wheel finish
Guides & Documents
US Mags U10117008245 Specifications
US Mags U10117008245 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | U10117008245 |
| Brand | US Mags |
| Wheel Diameter | 17 Inch |
| Width | 10" |
| Wheel Bolt Pattern (in.) | 8x6.5 in. |
| Wheel Bolt Pattern (mm) | 8x165.1 mm |
| Wheel Backspace | 4.52" |
| Wheel Material Type | Cast Aluminum |
| Wheel Offset | -25 mm |
| Wheel Backspace Range | 4.500" - 4.999" |
| Finish | Polished |
| Color | Natural |
| Beadlock Included | No |
| Material Type | Cast Aluminum |
| GENERAL | |
| DOT-Approved | Yes |
| Center Bore Diameter | 5.122 mm |
| Weight | 32 lbs. |
| Load Capacity | 3500 lbs. |
| Valve Stem Included | No |
| GTIN Code | 885463896656 |
| TPMS Sensor Compatible | Yes |
| Wheel Construction | 1-Piece |
| Lug Nut Seat Style | 60 Degree Conical |
| Center Cap Included | No |
| Lug Nuts Included | No |
