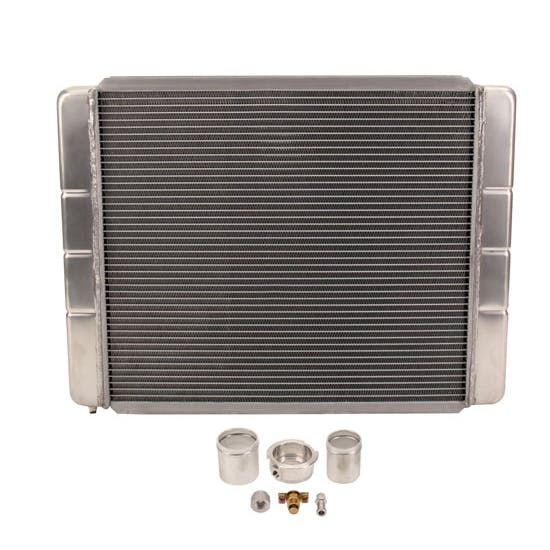

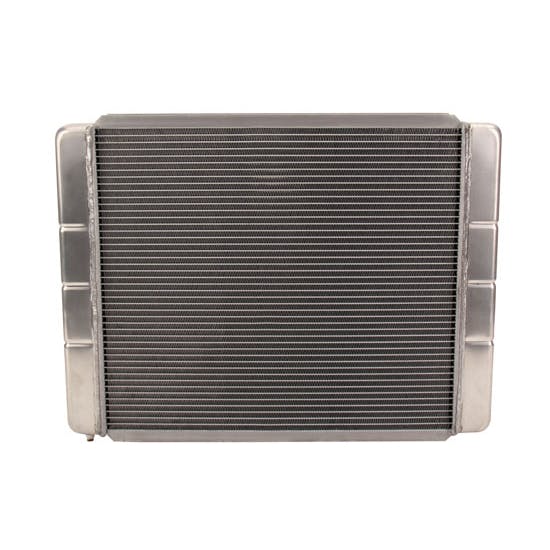

U-Weld-It Custom Aluminum Radiator Kit, 22 x 19 Inch

Our line of universal U-Weld-It radiators makes it easy for budget-minded builders to get a custom, professional-quality, no compromises aluminum radiator.

Performs Under Pressure

Constructed of lightweight, 100% aluminum, we furnace braze the radiator assembly for maximum durability and performance, no epoxy and gaskets here! Epoxy acts as an insulator, causing radiators to heat unevenly, and this stress combined with the vibration from racing can break epoxy seals and leak or separate over time. Furnace-brazing minimizes fatigue from the rapid heating and cooling cycles. Since all the metal parts are fused together with a metal joint, they conduct heat evenly between the tanks and the rest of the assembly, preventing uneven expansion between the fused pieces, keeping the joint strong.

We include a billet filler neck to ensure a strong seal under high pressures that will outperform cast filler necks with an industry standard 1-5/8” inner cap diameter and a 1/8” NPT overflow port.

Maximum Cooling Performance

For your custom build, this u-weld-it kit can be configured in a downflow or cross-flow configuration depending on your application. Our single pass design uses two rows of 1” wide aluminum tubes which have more surface area than copper radiators, cooling the same as five rows of copper tubes.

A dense fin structure adds an additional layer of strength to the support tubes, better directs air flow and has more area to transfer heat. The core is 2.25”, a perfect balance of maximizing directed airflow and heat transfer. This radiator is built for one purpose, cooling your engine. No transmission cooler maximizes cooling efficiency.

Easy to Configure, Multiple Sizes

Our universal radiator isn’t made for any one specific car or truck, but we offer options to make it fit your race car or custom project. Since we didn’t add mounting brackets, this means you can easily adapt our radiator to any build. We offer universal insulated mounting brackets which clamp to the core and tanks, as well as shrouds for electric and mechanical fans, or pre-made fan/shroud kits. This radiator is in  the common configuration of 1.5” inlet and 1.75” outlet.

A lightweight, customizable, race-grade radiator is now within your budget with our Universal Fit U-Weld-It Aluminum Radiator.

Features

• U-Weld-It design for your custom application
• A professional quality, lightweight, all-aluminum race-grade radiator at a budget-friendly price
• Furnace-brazed construction is more durable and improves performance vs. epoxy and gasket construction
• Two-rows of 1” aluminum tubes cool better than 5 rows of traditional copper tubes
• Dense fin structure improves airflow and adds rigidity
• Billet aluminum filler neck guarantees a long-lasting seal under high pressures
• Overall Dimensions:  21-5/8" x 19-9/16" x 3-1/8", configurable as cross or down-flow
• Single-pass, design with 2.25” core
• Basic design for universal fit and focus on engine cooling
• 1.5” inlet, 1.75” outlet

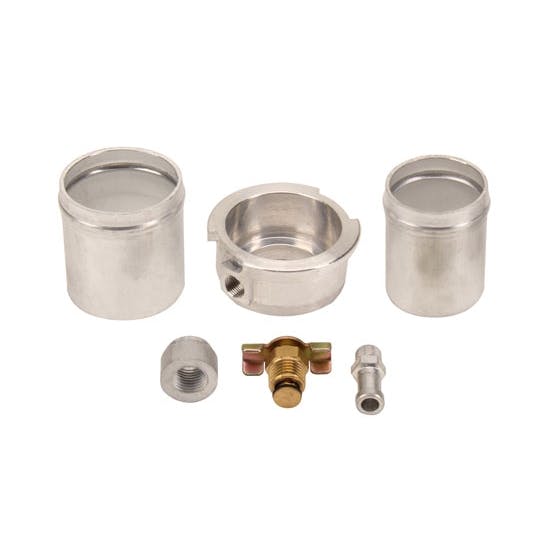

Kit Includes:

• (1) 1-1/2" Hose connection
• (1) 1-3/4" Hose connection
• (1) Billet Aluminum filler neck
• (1) Overflow tube
• (1) Weld-on Bung
• (1) Draincock

Aluminum Fan Shroud Kits available:

For 22" radiator, fan shroud kit # 917-4020

Because this kit is sold unfinished, and requires outside welding and fabrication, standard warranties do not apply.
