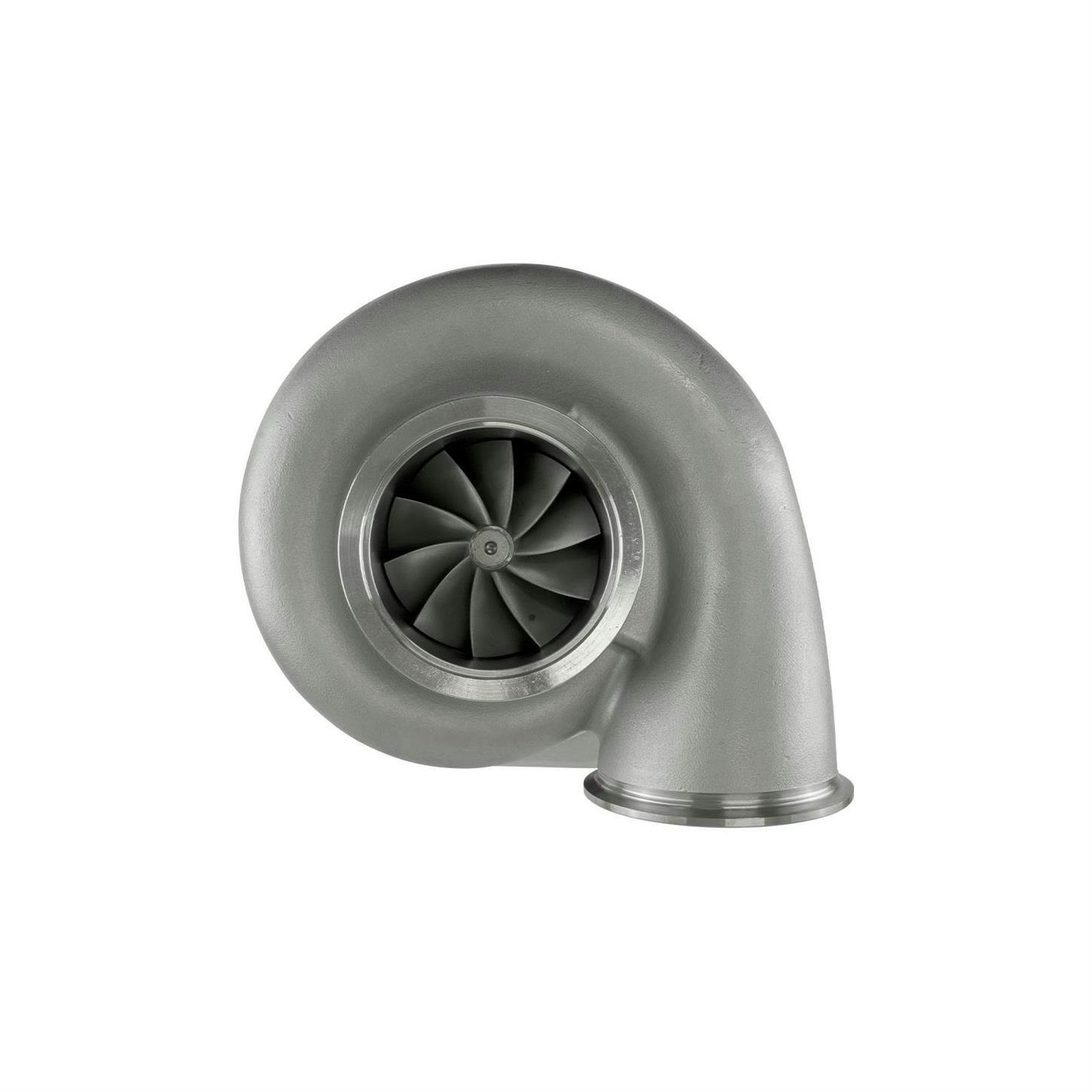

Turbosmart TS-2-7170VB096E Turbocharger, 7170, Water, V-Band

#37527170VB

Turbosmart TS-2-7170VB096E Turbocharger, 7170, Water, V-Band

Developed with modern materials, design, and manufacturing techniques
Water and oil-cooled turbochargers with lightweight investment cast turbine housings
Unique bearing and central shaft combination for unparalleled transient response

$2,549.95

/each

Factory Shipped

Quantity

Need Help? Call to Order

Add to a list

Developed with modern materials, design, and manufacturing techniques
Water and oil-cooled turbochargers with lightweight investment cast turbine housings
Unique bearing and central shaft combination for unparalleled transient response
Aggressive compressor aerodynamics ensure high performance at lower shaft speeds
Engine end-to-end approach for increased power through reduced back pressure and high-performance turbines

Key Specs

MFG. Part #	TS-2-7170VB096E
Brand	Turbosmart

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Turbosmart TS-2-7170VB096E Details

Smaller, Lighter and Faster andndash; The Turbosmart TS-2 turbocharger series has been developed to leverage modern materials, design and manufacturing techniques to create a Turbocharger range that meets the demands of both motorsport, and performance enthusiasts alike.

The TS-2 series is water and oil-cooled turbochargers with lightweight Investment cast turbine housings, a proprietary bearing and a central shaft combination that will provide the transient response you never knew possible with the type of performance, quality, reliability and support you've come to know Turbosmart for.

The ultra-low rotating mass of our unique bearing and shaft assembly is matched to aggressive compressor aerodynamics to ensure high levels of performance at lower shaft speeds, which is mated with a unique turbine wheel to ensure power at high loads and flow is maintained.

The TS-2 turbocharger series has taken an engine end-to-end approach aiming to achieve power through reduced back pressure and high-performance turbines andndash; While being smaller, lighter and faster in response than other solutions on the market.

Features

Unparalleled transient response
Aggressive aerodynamics with 7+7 splitter wheels
Lightweight 310s stainless steel investment cast turbine housings
Lightweight, Aluminium compressor covers
CFD-driven designed housings for optimal ARs and flow
T14 Inconel turbine wheel for extreme EGTs
VSR speed balanced
Proprietary dual ceramic bearing system
Integrated Iron backplate on center housing

Specs

Compressor Inlet: 4andPrime; / 101.6mm
Compressor Inducer: 71mm
Turbine Inlet: V-Band (2.25")
Turbine Exducer: 70mm
Turbine AR: 0.96
Turbine Outlet: V-Band (3.00")
Weight: 6.06kg / 13.3lbs
Horsepower Rating: 850-1025HP

CARB Warning

For race/ off road use only

Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.
