#9106550
Tuff Stuff Super-Lite Chevy Starter
4 Reviews
|
7 Questions
- Designed to be the smallest and lightest mini starter for Chevy engines
- Weighs only 7.5 lbs. and will work with automatic or manual transmissions
- Starter allows you to index it to clear headers or exhaust
See More
Starting from
$167.99
each
In Stock
$182.99
Save $15.00
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
396, 402, 427, 454, 496, 502, 572, Mini Starter Size
- Designed to be the smallest and lightest mini starter for Chevy engines
- Weighs only 7.5 lbs. and will work with automatic or manual transmissions
- Starter allows you to index it to clear headers or exhaust
- Features a 6:1 gear reduction and has a permanent magnet motor rated at 1.6 hp
- Dimensions measure 7" in length and 4-3/4" in height
See more details
Key Specs
| MFG. Part # | Select Finish |
| Brand | Tuff Stuff |
| Starter Size | Mini |
| Flywheel/Flexplate Tooth Count | 153-tooth/168-tooth |
| Finish | Select Finish |
See more specs
Need To Know
This Product Will Ship Free
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicyDetails
Details
This is the smallest, lightest mini starter made for Chevy engines. Weighing in at only 7.5 lbs., this starter allows you to index it to clear headers or exhaust. It has a 6:1 gear reduction and has a permanent magnet motor rated at 1.6 hp.

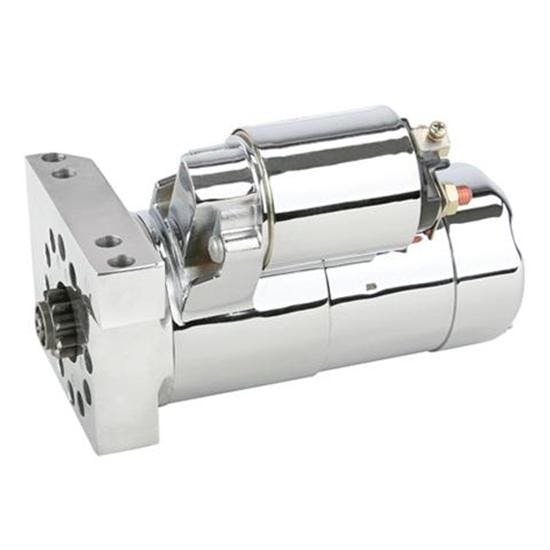

Available in plain or chrome finishes. Fits 153 or 168 tooth flywheels.
Specifications
Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | Select Finish to see |
| Brand | Tuff Stuff |
| Starter Size | Mini |
| Flywheel/Flexplate Tooth Count | 153-tooth/168-tooth |
| Finish | Select Finish to see |
| GENERAL | |
| Transmission Type | Automatic and Manual |
| Starter Output (kW/hp) | Select Finish to see |
| Color | Natural |
| Clockable | Yes |
| Tooth Count | 10 |
| Gear Rotation | Standard |
| Gear Ratio | 6.00:1 |
| Compression Ratio | 11.0:1 |
| Starter Style | Hitachi |
| Weight | 7.50 lbs. |
| Overall Length | 7.00" |
| Overall Height | 4.75" |
| Shaft Diameter | 1.10" |
| Sold in Quantity | Each |
| Notes | Deph of teeth from housing is .25" |
| GTIN Code | Select Finish to see |
| Mounting Block Material | Billet Aluminum |
