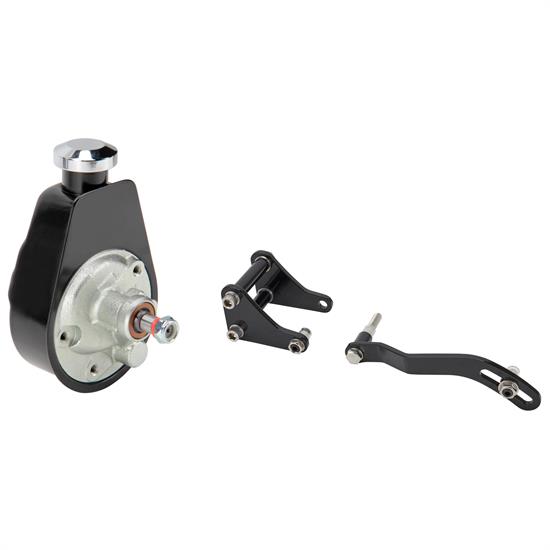

Tuff Stuff GM Saginaw Power Steering Pump w/300 Series Bracket

Install your power steering pump stress-free with this convenient pump and bracket combo kit for Small Block Chevy engines.

Kit Includes:

• (1) Tuff Stuff Black Chevy Saginaw Power Steering Pump-Reservoir/Cap
• (1) Bills Hot Rod Co.300 Series SBC PS Pump Bracket-Short Pump



Saginaw Power Steering Pump

• New reservoir, billet cap, chrome hardware, and new dipstick
• Desirable early style 1965-79 "Type 1" pump with threaded and keyed shaft for easy pulley installation
• Powder coated black finish
• Pump has a 3/8" hose barb for return line and a female 5/8"-18 inverted flare fitting for the high pressure outlet
• Pulley not included



SBC PS Pump Bracket

• Fabricated from 1/4" mild steel with stainless/chrome Allen head hardware
• Simple installation; all brackets are pre-assembled
• Drilling or tapping is not required
• Attaches to the lower left front of the block using the two lower bolt holes located by the timing cover (the old front motor mount holes)
• The adjusting arm mounts to the lower water pump hole
• Mounts low on drivers side
• Two positions for superior adjustability
• Works with SHORT & LONG style water pumps
• Use with GM Saginaw pumps with attached reservoir, "type 1" p.s. pumps
• Works with stock steel or aluminum aftermarket pulleys
• All brackets are made in the U.S.A.
• Brackets come completely assembled with all stainless steel bolts and washers, an illustrated instruction sheet and belt size recommendations with adjusting tips



Equivalent to to original pump found on:

• 1970-74 Camaro/Firebird
• 1970-74 Nova
• 1970-74 Chevelle/Malibu
• 1970-74 Monte Carlo

• Can also be used with 1982-88 T-Bird Rack & Pinion kits 910-35341, 910-34340-POW, and 916-03048, and hose kits 910-32535, and 617-4835. Pressure reducing flow valve 910-32918 may be needed depending on your specific application.
