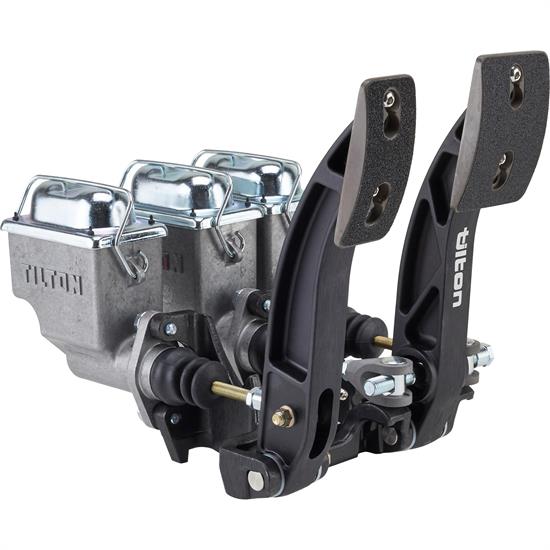

Tilton 72-604 2-Pedal Floor Mount w/73 Series Master Cylinders

#9109413

Tilton 72-604 2-Pedal Floor Mount w/73 Series Master Cylinders

This kit is universal and can be used in many applications
Adjustable pedal ratios enable the brake pedal to be tuned to driver preference without having to change master cylinder bore size
All necessary hardware included

Type:

2-Pedal W/ 73 Series

2-Pedal W/ 75 Series 2-Pedal W/ 74 Series2-Pedal (Pedal Only)3-Pedal W/ 75 Series 3-Pedal W/ 74 Series 3-Pedal W/ 73 Series 3-Pedal (Pedal Only)

$570.35

In Stock

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Floor Mount Position, Clutch/Brake Pedals Included

This kit is universal and can be used in many applications
Adjustable pedal ratios enable the brake pedal to be tuned to driver preference without having to change master cylinder bore size
All necessary hardware included
Pedals are made from a lightweight aluminum frame
PTFE coated aluminum clevises for increased durability and reduced friction

Comes as a Kit

View Kit Components

See more details

Key Specs

Brand

Tilton

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Details

Kit Includes:

(1) Tilton 72-604 600 Series 2-Pedal Aluminum Floor Mount Assembly
(3) Tilton 73 Series Master Cylinder Kits

Tilton 72-604 600 Series 2-Pedal Aluminum Floor Mount Assembly

Tilton’s 600-Series pedal assemblies feature traditional fixed-mount master cylinder and balance bar technology and provide excellent performance at competitive prices. Pedal assemblies are available in floor-mount, firewall-mount, and overhung configurations.

Forged aluminum pedals with adjustable (vertical & horizontal) foot pads and anti-slip surfaces.
Adjustable pedal ratios (5.29:1, 5.44:1, 5.61:1, 5.75:1) enable the brake pedal to be tuned to driver preference without having to change master cylinder bore size.
Large diameter 7/16”-20 balance bar provides maximum rigidity. PTFE coated aluminum clevises for increased durability and reduced friction.
Pedal pivots feature wave washers to reduce lateral pedal movement and oil-impregnated bronze bushings decrease stiction.
Lightweight aluminum frame features guide “ramps” to reduce balance bar tipping, decreasing friction and improving brake repeatability.
Adjustable clutch pedal stop prevents clutch over-stroking.

Tilton 73 Series Master Cylinder Kit

73-Series master cylinders are designed for applications that require large fluid capacity in a leak-proof integral reservoir. These cylinders are also unique in that they may be temporarily inverted without loss of fluid. Fluid chamber is completely sealed from the outside environment while still allowing fluid level changes. Available in the most popular bore sizes, these cylinders are an affordable solution for the budget racer.

Guides & Documents

Effects of Master Cylinder Bore Size on Your Brake System

Brake Pedal Assemblies Installation Instructions (70172604)

Specifications

KEY SPECS
Brand	Tilton

GENERAL
Position	Floor Mount
Master Cylinder Mount Type	Forward
Pedals Included	Clutch/Brake
Master Cylinder Count	3
Outlet Count	Single
Outlet Fitting	3/16" IFF
Master Cylinder Material	Aluminum
Finish	Anodized
Brake Booster Included	No
Hardware Included	Yes
Sold in Quantity	Kit

Ratings & Reviews

Be the first to write a review.

Questions & Answers

1 Question • 1 Answer

Sort Questions

I'm wanting to use this with a Empi Billet Pedal Slide for Hydraulic Pedal Assemblies, set up. and I'm trying to figure out if the mounting holes will line up with the slider

by Nick

• 2 years ago

1 answer

View Answer

1 of 1 questions shown
