Tilton 72-603 3-Pedal Floor Mount w/75-Series Master Cylinders
Tilton 72-603 3-Pedal Floor Mount w/75-Series Master Cylinders

Tilton 72-603 3-Pedal Floor Mount w/75-Series Master Cylinders

Universal Fit, Floor Mount Position, Forward Master Cylinder Mount Type

0 Reviews | 0 Answered Questions
In Stock
Ships FREE
Select your vehicle to verify fitment.
Select Vehicle
Tilton 72-603 3-Pedal Floor Mount w/75-Series Master Cylinders
Tilton 72-603 3-Pedal Floor Mount w/75-Series Master Cylinders
Tilton 72-603 3-Pedal Floor Mount w/75-Series Master Cylinders
Tilton 72-603 3-Pedal Floor Mount w/75-Series Master Cylinders
Tilton 72-603 3-Pedal Floor Mount w/75-Series Master Cylinders
Tilton 72-603 3-Pedal Floor Mount w/75-Series Master Cylinders
Tilton 72-603 3-Pedal Floor Mount w/75-Series Master Cylinders
Tilton 72-603 3-Pedal Floor Mount w/75-Series Master Cylinders
Tilton 72-603 3-Pedal Floor Mount w/75-Series Master Cylinders
Tilton 72-603 3-Pedal Floor Mount w/75-Series Master Cylinders
Tilton 72-603 3-Pedal Floor Mount w/75-Series Master Cylinders
X
Tilton 72-603 3-Pedal Floor Mount w/75-Series Master Cylinders
Tilton 72-603 3-Pedal Floor Mount w/75-Series Master Cylinders
Tilton 72-603 3-Pedal Floor Mount w/75-Series Master Cylinders
Tilton 72-603 3-Pedal Floor Mount w/75-Series Master Cylinders
Tilton 72-603 3-Pedal Floor Mount w/75-Series Master Cylinders
Tilton 72-603 3-Pedal Floor Mount w/75-Series Master Cylinders
Tilton 72-603 3-Pedal Floor Mount w/75-Series Master Cylinders
Tilton 72-603 3-Pedal Floor Mount w/75-Series Master Cylinders
Tilton 72-603 3-Pedal Floor Mount w/75-Series Master Cylinders
Zoomed In Image
Part # 9109410
Save 15%
$714.99
$847.00
kit
Call to Order
Add to Buildlist
Compare
Details
What's In The Kit
Reviews
Q&A
Videos & Articles
  • This kit is universal and can be used in many applications
  • Adjustable pedal ratios enable the brake pedal to be tuned to driver preference without having to change master cylinder bore size
  • All necessary hardware included
  • Pedals are made from a lightweight aluminum frame
  • PTFE coated aluminum clevises for increased durability and reduced friction

Build Your Kit

You're almost there! This kit has an option or two for you to select. Let us know which options you want for your new kit.
Item 1 of 3
Tilton 75 Series Master Cylinder Kit
Tilton 75 Series Master Cylinder Kit
Quantity: 1
Item 2 of 3
Tilton 75 Series Master Cylinder Kit
Tilton 75 Series Master Cylinder Kit
Quantity: 1
Item 3 of 3
Tilton 75 Series Master Cylinder Kit
Tilton 75 Series Master Cylinder Kit
Quantity: 1
Next
Add to Cart

Details

Position:
Floor Mount
Master Cylinder Mount Type:
Forward
Pedals Included:
Clutch/Brake/Throttle
Master Cylinder Count:
3
Master Cylinder Material:
Aluminum
Finish:
Anodized Black
Fluid Capacity:
6.8 oz
Hardware Included:
Yes
Sold in Quantity:
Kit

Info

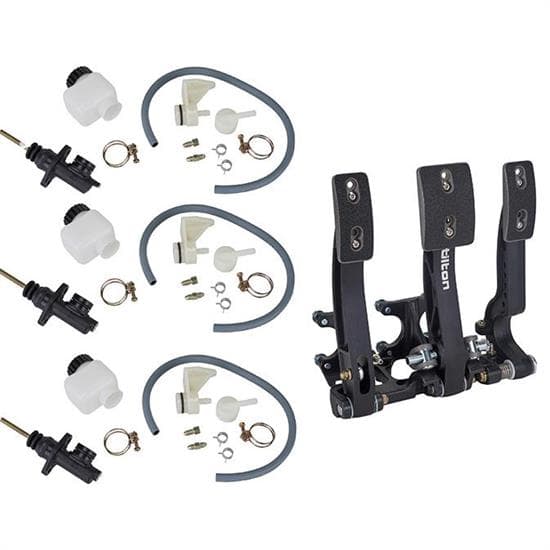

Kit Includes:

  • (1) Tilton 72-603 600 Series 3-Pedal Aluminum Floor Mount Assembly
  • (3) Tilton 75 Series Master Cylinder Kits

Tilton 72-603 600 Series 3-Pedal Aluminum Floor Mount Assembly

Tilton’s 600-Series 3-pedal floor mount assembly features traditional fixed-mount master cylinder and balance bar technology and provides excellent performance at competitive prices. Pedal assemblies are available in floor-mount, firewall-mount, and overhung configurations.

Details:

  • Forged aluminum pedals with adjustable (vertical & horizontal) foot pads and anti-slip surfaces.
  • Adjustable pedal ratio (5.29:1, 5.44:1, 5.61:1, 5.75:1) enable the brake pedal to be tuned to driver preference without having to change master cylinder bore size.
  • Large diameter 7/16”-20 balance bar provides maximum rigidity.  PTFE coated aluminum clevises for increased durability and reduced friction.
  • Pedal pivots feature wave washers to reduce lateral pedal movement and oil impregnated bronze bushings decrease stiction.
  • Lightweight aluminum frame features guide “ramps” to reduce balance bar tipping, decreasing friction and improving brake repeatability.
  • Adjustable clutch pedal stop prevents clutch over-stroking.

Tilton 75 Series Master Cylinder Kit

75-Series Master Cylinder kits offer great flexibility at an affordable price. Continuously improved since their introduction in 1986, the venerable 74-Series master cylinder has become a trusted favorite of car builders and race teams due to their reliability and value.

  • Aluminum Master cylinder
  • 6.8 oz reservoir
  • Remote reservoir mounting components

Application

Instruction Sheet (PDF)

Installation Diagram (PDF)

Instruction Sheet (PDF)

Important Messages:

  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
Some parts are not legal for use in California or other states with similar laws/regulations

Related Products

What's In The Kit

Each kit from Speedway Motors is carefully packaged and delivered right to your door. Below is a list of all the items you should expect to receive when you order this kit. Some of these items may also be available for sale individually if you're here looking for replacement parts.
  • Tilton 72-603 600 Series 3-Pedal Aluminum Floor Mount Assembly
    Qty x 1
  • Tilton 75 Series Master Cylinder Kit
    Qty x 1
  • Tilton 75 Series Master Cylinder Kit
    Qty x 1
  • Tilton 75 Series Master Cylinder Kit
    Qty x 1
