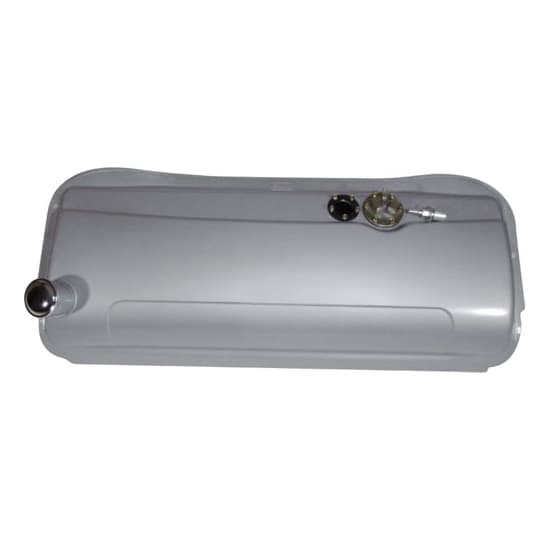

Tanks 32Z-D2 1932 Ford Steel Fuel Tank - Extra Capacity

-16%

#910851000

Tanks 32Z-D2 1932 Ford Steel Fuel Tank - Extra Capacity

High Quality Die Stamped Construction
Alloy Coated Steel - For Rust Prevention
Top Mounted Bolt In Pickup Tube and Vent (1/4 Inch NPT Pickup and Return)

Type:

Steel / Extra Capacity

Steel / Stock Capacity Stainless Steel / Stock CapacityPolyethylene / Extra Capacity

$376.99

/each

Factory Shipped

$450.00

Save $73.01

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

1932 Ford, Custom Replacement Fuel Tank Style, Steel

High Quality Die Stamped Construction
Alloy Coated Steel - For Rust Prevention
Top Mounted Bolt In Pickup Tube and Vent (1/4 Inch NPT Pickup and Return)
Internal Reservoir Tray - Great for Carbs...Absolutely Necessary for Fuel Injection
Fully Baffled Fuel Tank

See more details

Key Specs

Fuel Tank Style	Custom Replacement
Fuel System Type	EFI \| Carb
Capacity	14.5 gallons
Material Type	Steel
Finish	Galvanized

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Tanks 32Z-D2 Details

1932 Ford Gas Tanks are stamped on our dies to look original, but with added Street Rod Features.

High Quality Die Stamped Construction
Alloy Coated Steel - For Rust Prevention
Top Mounted Bolt In Pickup Tube and Vent (1/4 Inch NPT Pickup and Return)
Internal Reservoir Tray - Great for Carbs...Absolutely Necessary for Fuel Injection
Fully Baffled Fuel Tank
Non-vented Stainless Steel Fuel Cap
14.5 Gallon Extra Deep Capacity
Deep Size: 39 Inch x 17 Inch x 10 Inch (1 Inch Deeper than Stock)
Accepts All 5-Hole Senders - VDO, SW, Classic, etc. If using tube or reed sender, length is 9 Inch.
Optional In-Tank Fuel Pumps Available
Leak Tested...Twice - For Safety

This tank has a bolt in pickup tube assembly for carbureted applications.

Warranty Information

Speedway Motors cannot facilitate the return of defective Tanks Inc.’s products as they have requested to handle these directly with the consumer. For defective product support and Return Authorization, please contact Tanks Inc. at (319) 465-3522 or (877)

CARB Warning

For race/ off road use only

Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.

CA WARNING:

Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov

CARB warning

Tanks 32Z-D2 Specifications

KEY SPECS
MFG. Part #	32Z-D2
Brand	Tanks
Fuel Tank Style	Custom Replacement
Fuel System Type	EFI \| Carb
Capacity	14.5 gallons
Material Type	Steel
Finish	Galvanized
Color	Silver
Sending Unit Included	No
Fuel Pump Included	No
Tank Straps Included	No
Overall Length	39"
Overall Width	17"
Overall Height	10"

GENERAL
Fuel Type	Gasoline
Baffled	Yes
Filler Neck Included	Yes

Ratings & Reviews

Be the first to write a review.

Questions & Answers

Be the first to ask a question.

Fitment

1932 Ford 1 Ton Pickup

1932 Ford 1/2 Ton Pickup

1932 Ford 3/4 Ton Pickup

1932 Ford Model 18

1932 Ford Model B

1932 Ford Model BB

1932 Ford Sedan Delivery
