All TCI Electric Reversible Fan Kits either push or pull air by simply reversing the blades. The fans are constructed out of lightweight nylon 6/6 high temperature plastic with a low profile design. Where room is a premium, TCI 10" and 12" units are both under 3" at the thickest part. Each fan comes complete with all necessary hardware and a quick mount connector kit.

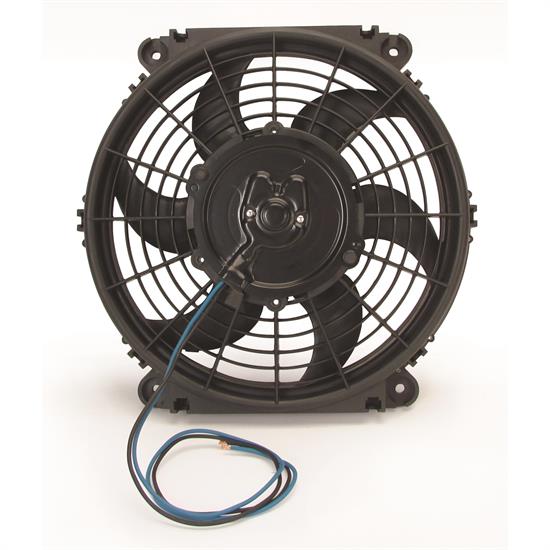

This 10" TCI Reversible Electric Fan provides up to 650 CFM as a Pusher Fan and 600 CFM as a Puller Fan. Great for moving cool air past your transmission/engine/power steering coolers.

Guides & Documents

How to Choose the Best Electric Radiator Fan | Size & Setup Guide

Warranty Information

TCI Automotive provides a limited warranty covering manufacturing defects for 30 days on racing equipment and 90 days on street/strip equipment, valid only for the original purchaser with proof of purchase. Approved transmission fluid and cooler flush products are required, and claims must be authorized through Edelbrock Group Tech Support. The warranty excludes modified, improperly installed or maintained, abused, accident‑damaged, improperly cooled, or unauthorized repaired products.

CA WARNING:

Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov

TCI Automotive 827000 Specifications

KEY SPECS
MFG. Part #	827000
Brand	TCI Automotive
Fan Diameter	10 Inch
Maximum Fan CFM	650 CFM
Fan Flow Type	Reversible
Rotation	CW/CCW
Blade Material	Plastic
Overall Width	10.5"
Overall Height	10.5"
Overall Thickness	2.5"
Depth	2.500"

GENERAL
Fan Quantity	Single
Maximum Fan RPM	2700 RPM
Blade Style	Curved
Blade Count	6-blade
Blade Color	Black
Hub Finish	Natural
Hub Color	Black
Amperage	5.3 amps
Voltage	12 volts
Shroud Included	Yes
Sold in Quantity	Each
GTIN Code	788120019415
Mounting Bracket Included	Yes
Mounting Hardware Included	Yes
