#9106151
$100.99
/each
In Stock
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
Universal Fit, Single Joint Universal Joint Style
| Universal Joint Style | Single Joint |

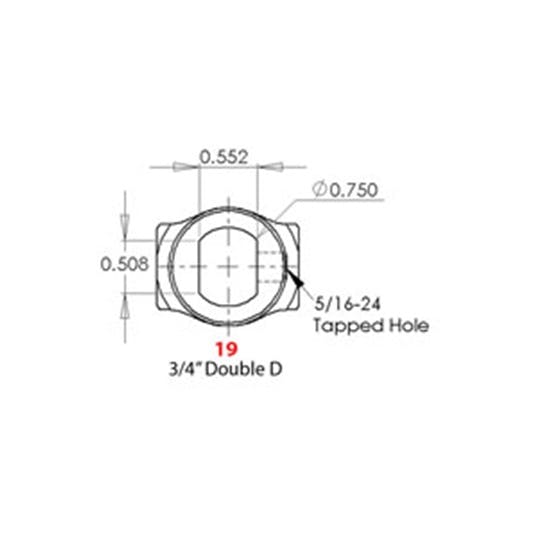

| End #1 | 3/4" DD |

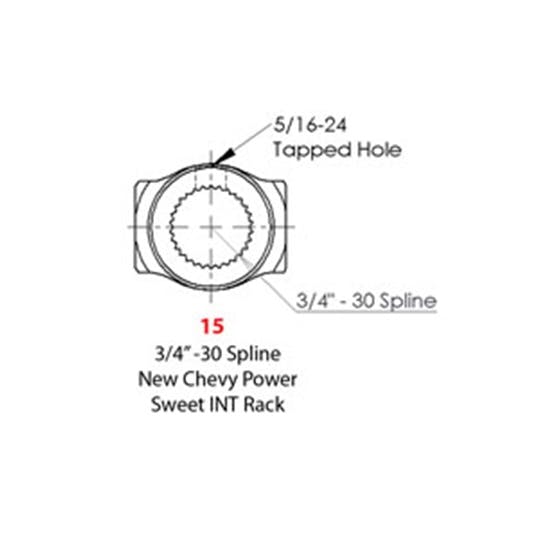

| End #2 | 3/4"-30 Spline |
| Shaft Diameter | 0.75" |
| Spline Count | 30 |
Need help?
855.313.9176Quick and Easy Returns

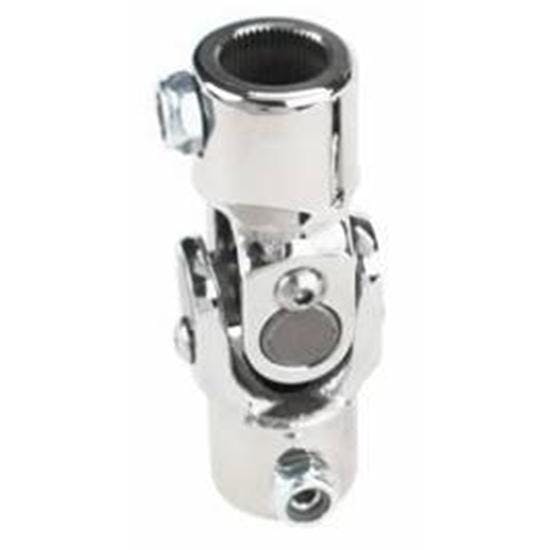

Return PolicyDont jeopardize your safety with inferior quality steering components. Speedway offers only the finest steering U-joints available. Made by Sweet Manufacturing. These steering universal joints feature a double D end to make use of the double D shaft.
Note: GM columns measure slightly less than 1" while IDIDIT and Flaming River columns measure a true 1". DO NOT interchange these u-joints.
Application
STEP 1

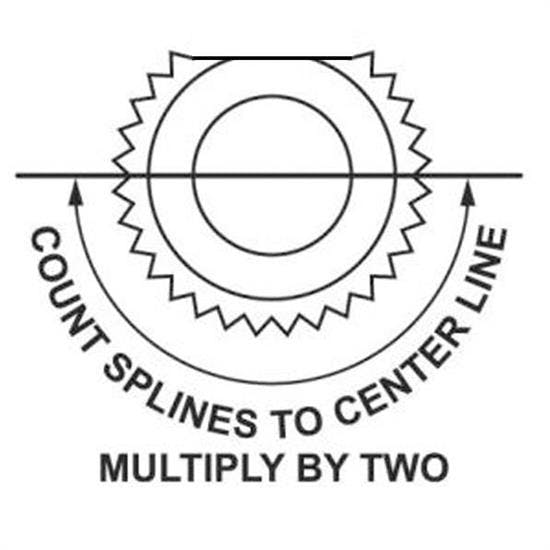

Be sure to measure the diameter of the shaft and count the number of splines on the shaft. Some shafts have a blank spot ground on one side. To get the correct number of splines, use a flat edge and cover the blank half of the shaft through the diameter and count the splines on the other half. Multiply that number by 2, thus giving you the total number of splines on the full circumference of the shaft.
STEP 2
Choose which shaft type best suits your application: 3/4" weld on, 3/4" DD or 1" DD.
STEP 3
With these two pieces of information at hand, refer to our chart to find the appropriate part number of the ujoint for your specific application.
Guides & Documents
CA WARNING:
Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov
| KEY SPECS | |
|---|---|
| MFG. Part # | 401-61519 |
| Brand | Sweet Manufacturing |
| Universal Joint Style | Single Joint |
| End #1 | 3/4" DD |
| End #2 | 3/4"-30 Spline |
| Shaft Diameter | 0.75" |
| Spline Count | 30 |
| Spline OD | .750" |
| GENERAL | |
| Spline End | 3/4"-30 |
| Overall Length | 3.75" |
| Outside Diameter | 1.355" |
| Max Operating Angle | 30 ° |
| Set Screw Included | Yes |
| Material Type | Steel |
| Finish | Chrome |
| Sold in Quantity | Each |
5
3 Reviews
Customers appreciate the product's robust performance, equal to that of renowned brands. The smaller collar size is seen as an advantage for Jeep applications, fitting perfectly beside power steering and brake lines, implying its practicality and adaptability. Users commend its excellent usability, specifically in steering shaft assembly, and its success in handling large vehicle components like 35-inch wheels. The material quality is implied to be highly competent, given its positive comparison to other recognized brands, indicating high safety standards and durability, making it highly recommended among users.
5
3 reviews
5
3
4
0
3
0
2
0
1
0
Filter by Ratings
Fits when others did not!
5.0
a year ago
Ed
Houston TX
Verified
1967 Chevelle big block. Lemons headers, serpentine and a super tight fit!
DEFINATELY
5.0
2 years ago
TUKO
WINDSOR CA
Verified
JOINT WAS JUST AS GOOD AS ANY NAME BRAND OUT THERE . WORKED VERY WELL IN THE STEERING SHAFT THAT WAS BUILT
Would Recommend
Smaller size which is great
5.0
12 years ago
85jeep
Undisclosed
Verified
When I first opened package I was concerned as the collars were smaller than the other brands, but upon closer inspection the u joint used is the same size. The smaller collars work very well for my jeep application as in the same area there are power steering and brake lines. Been using for a couple of weeks now and it is turning my 35's great
Would Recommend
Showing 3 of 3 reviews
1 Question • 1 Answer
what does DD mean ? my steering has a rectangle shaped end on it 3/4 by 5/8 approx. will this u joint work ? the steering colum & gearbox is out of a 1995 jeep cheroke .
by Steve
• 11 years ago
1 answer
View Answer
1 of 1 questions shown
