Street Small Block Chevy 400 Rotating Assembly, Dish Dome, 6 Inch Rod
400 Chevy Small Block V8, 400 mains Main Journal Style, 3.750" Engine Stroke, Dish Piston Style
Build Your KitYou're almost there! This kit has an option or two for you to select. Let us know which options you want for your new kit.
These rotating assembly engine rebuild kits are designed for street use and include Keith Black Hypereutectic pistons, Speedway 5140 I-beam rods, main/rod bearings and a Speedway Cast Steel crankshaft. Rings not included. Journals are standard size.
Due to larger journal side radius on this aftermarket crankshaft, you must use Clevite H-series, King bearings (included in kit) or equivalent.
These assemblies will require balancing either by us or your machine shop.
All balancing is done with our state-of-the-art Hines balancer by race mechanics with over 30 years of experience! A kit purchased with the optional balance job will ship in 24-48 hours.
- Speedway Cast Steel Crankshaft
- Two-piece rear main
- 80-60-06 cast steel
- Speedway 5140 I-Beam Connecting Rods
- Heat treated, shot peened and magnafluxed
- 6.0" length
- Bushed pin
- 597 grams
- Set of 8 rods
- KB Hypereutectic Dished Pistons
- T-5 heat treated aluminum construction
- 4.000" bore pistons available in .030, .040, or .060 sizes
- 4.125" bore pistons available in .030 or .040 sizes
- Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.

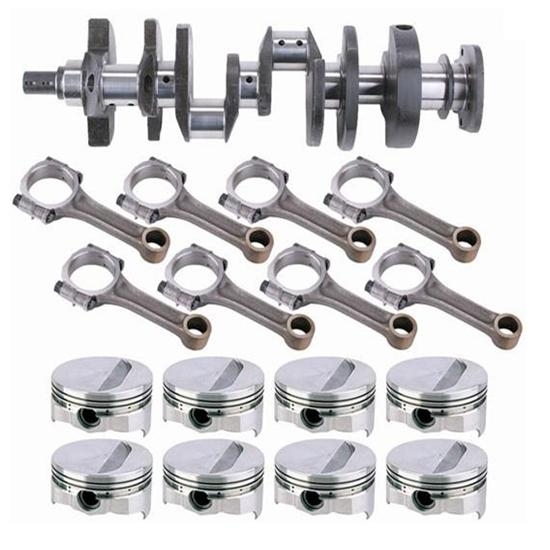

What's In The Kit
KB Chevy 400 Hypereutectic Pistons, Dish, 6.0 Inch RodPart # 474130Qty x 1
Small Block Chevy 5140 Steel I-Beam Rods, 6.0 Inch, Bushed PinPart # 91015398Qty x 1
Speedway 400 Chevy Crankshaft, Two-Piece MainPart # 91515400Qty x 1
King HP Series Chevy 350/400 Large Journal Engine Rod Bearings, StdPart # 910807HP-STDQty x 1
King MB 509HP HP Series Chevy 400 Large Journal Main BearingsPart # 910509HP-STDQty x 1
