400 mains Main Journal Style, 3.750" Engine Stroke
Comes as a Kit
View Kit Components
| MFG. Part # | 91510249 |
| Brand | Speedway Motors |
| Connecting Rod Type | I-Beam |
| Piston Style | Dish |
| Piston Material | Hypereutectic Aluminum |
Need help?
855.313.9176Quick and Easy Returns
Return PolicyThese rotating assembly engine rebuild kits are designed for street use and include Keith Black Hypereutectic pistons, Speedway 5140 I-beam rods, main/rod bearings and a Speedway Cast Steel crankshaft. Rings not included. Journals are standard size.
Due to larger journal side radius on this aftermarket crankshaft, you must use Clevite H-series, King bearings (included in kit) or equivalent.
These assemblies will require balancing either by us or your machine shop.
All balancing is done with our state-of-the-art Hines balancer by race mechanics with over 30 years of experience! A kit purchased with the optional balance job will ship in 24-48 hours.
Kit features:
Kit features:
| KEY SPECS | |
|---|---|
| MFG. Part # | 91510249 |
| Brand | Speedway Motors |
| Connecting Rod Type | I-Beam |
| Piston Style | Dish |
| Piston Material | Hypereutectic Aluminum |
| GENERAL | |
| Main Journal Style | 400 mains |
| Engine Stroke | 3.750" |
| Connecting Rod Length | 6.000" |
| Connecting Rod Material | Forged 5140 Steel |
| Connecting Rod Weight | 588 grams |
| Connecting Rod Bolt Diameter | 3/8" |
| Piston Weight | 430 grams |

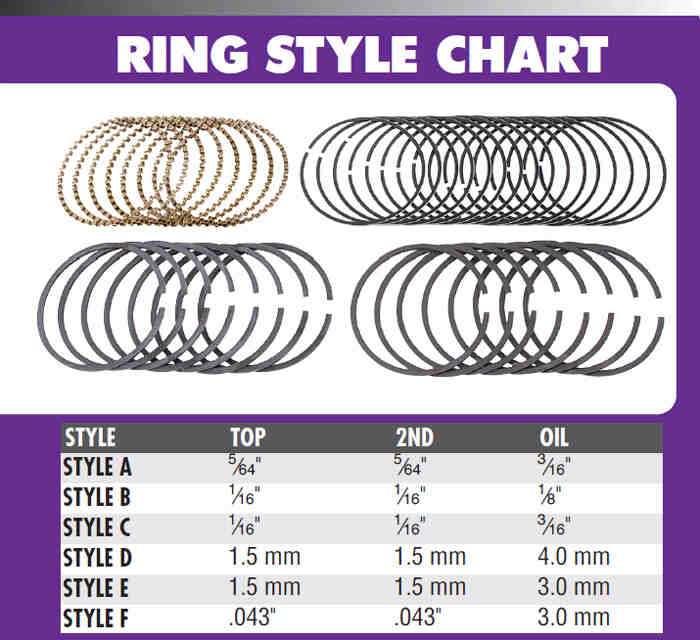

| Piston Ring Style | A |
| Crankshaft Material | Cast Steel |
| Rear Main Seal Style | 2-piece |
| Wrist Pin Diameter | 0.9272" |
| Wrist Pin Weight | 145 grams |
| Main Journal Diameter | 2.648" |
| Rod Journal Diameter | 2.10" |
| Bearing Construction | Bi-metal |
| Bearing Undersize | Standard |
| Narrowed Bearing | Yes |
| Coated Bearing | No |
| Sold in Quantity | Kit |
