Speedway Deluxe 65-68 Chevy Disc Conv. Kit, D/S Rotors, Red
$719.99
kit
Factory Shipped
This part will be shipped by the manufacturer. We estimate this item will ship on or before October 6th.
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Front Position, 5 on 4.75" Bolt Pattern, Powder Coated
Comes as a Kit
View Kit Components
See more details
Key Specs
| Position | Front |
| Bolt Pattern | 5 on 4.75" |
| Rotor Diameter | 11 Inch |
| Rotor Type | Vented |
| Caliper Pistons | One |
See more specs
Need To Know
This Product Will Ship Free
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicySpeedway Motors 91664026 Details
Speedway Motors 91664026 Details
Our all inclusive disc brake conversion kit makes it easy for the budget minded hot rod enthusiast to convert their drum brakes to disc brakes. The GM full size kits won't require you to swap out spindles, saving you time and money. Want power brakes? Add a power brake conversion and have full braking power. Booster conversion kits come in many finishes and sizes and can be configured to any kit.

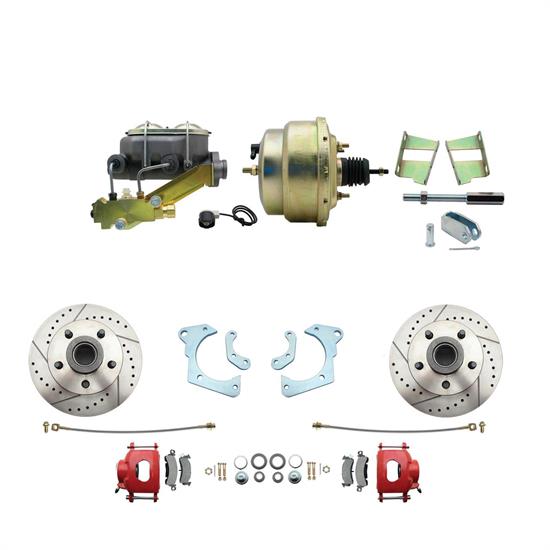

Full Size Chevy 1965-1968 Complete Stock Height Disc Brake Kit Includes
- 11" Drilled & Slotted Rotors
- Large Single Bore GM Powder Coated Red Calipers w/ Pads
- Caliper Brackets
- Hoses with Banjo Bolts
- Bearings
- Seals
- Dust Caps
- Spindle Nuts
- Spindle Washers
- All Hardware
1965-1968 GM Full Size 8" Dual Zinc Booster Conversion Kit (Impala, Bel Air, Biscayne)
Includes:
- 1" Bore Dual Bail Cast Iron Master Cylinder
- Brass Proportioning Valve Kit for Left Mount
- 8" Dual Zinc Booster w/ Firewall Brackets
- Pedal Extension & Clevis
Charts
Speedway Motors 91664026 Specifications
Speedway Motors 91664026 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 91664026 |
| Brand | Speedway Motors |
| Position | Front |
| Bolt Pattern | 5 on 4.75" |
| Rotor Diameter | 11 Inch |
| Rotor Type | Vented |
| Caliper Pistons | One |
| Caliper Finish | Powder Coated |
| Color | Red |
| Parking Brake Provision | No |
| Minimum Recommended Wheel Diameter | 15 Inch |
| Rotor Style | Drilled & Slotted |
| Front Rotor Included | Yes |
| Front Rotor Diameter | 11 Inch |
| Front Caliper Included | Yes |
| Front Caliper Piston Quantity | 1 |
| Front Caliper Finish | Powder Coated Red |
| Rear Caliper Included | No |
| Front Spindles Included | No |
| Master Cylinder Included | Yes |
| Brake Booster Included | Yes |
| Brake Hoses Included | Yes |
| Rear Rotor Included | No |
| GENERAL | |
| Rotor Thickness | 1" |
| Front Caliper Material | Cast Iron |
| Front Caliper Piston | Single Large Piston |
| Application Type | Disc/Drum |
| Brake Booster Diameter | 8 Inch |
| Brake Booster Finish | Zinc |
| Brake Booster Material | Steel |
| Brake Booster Type | Vacuum Diaphragm Dual |
| Brake Hose Material | Stainless Steel Braided |
| Master Cylinder Bail Type | Dual Bail |
| Master Cylinder Finish | Natural |
| Master Cylinder Material | Cast Iron |
| Mounting Bracket Included | Yes |
| Brake Pedal Rod Included | Yes |
| Proportioning Valve Location | Left Mount |
| Brake Booster Bracket Finish | Zinc |
