Speedway Adjustable Small Block Chevy IMCA Headers, Raw Finish

#91013168

Speedway Adjustable Small Block Chevy IMCA Headers, Raw Finish

Name: Speedway Adjustable Small Block Chevy IMCA Headers, Raw Finish
Brand: Speedway Motors
SKU: 91013168
Price: 217.99 USD
Availability: InStock
Rating: 5 (6 reviews)

6 Reviews

4 Questions

Fits S/B Chevy
Stepped header
1 5/8" to 1 3/4" primary, 3" collector

$217.99

/set

In Stock

Garage Sale alternatives: from $135.82

Quantity

Need Help? Call to Order

Add to a list

Select an engine to verify Fitment

Select Engine

Product Summary

Chassis Header Tube Type, Round Exhaust Port Shape, Raw

Fits S/B Chevy
Stepped header
1 5/8" to 1 3/4" primary, 3" collector
Includes 90 degree and 60 degree collectors, adjustable for power tuning and footbox location
Includes gaskets and header bolts

See more details

Key Specs

MFG. Part #	91013168
Header Tube Type	Chassis
Exhaust Port Shape	Round
Flange Style	Standard
Primary Tube Diameter	1-5/8"

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Speedway Motors 91013168 Details

Get your Modified breathing better and making maximum power for less money with Speedway adjustable IMCA headers. The stepped header design has adjustable-length primaries to allow for power tuning and variances in engine and foot box location. Adjustable pipe length allows you to shorten headers to work better on longer tracks, or leave pipes long for optimum performance on short tracks.

Quality construction with black steel finish
All the features of more expensive headers, without the high price tag
Adjustable-length primary pipes for performance tuning
Pipe length can be adjusted for foot box and engine location
Fits IMCA Modifieds with a S/B Chevy standard exhaust port pattern
Includes gaskets and header bolts
60-degree turnout on driver's side
90-degree turnout on passenger side

Charts

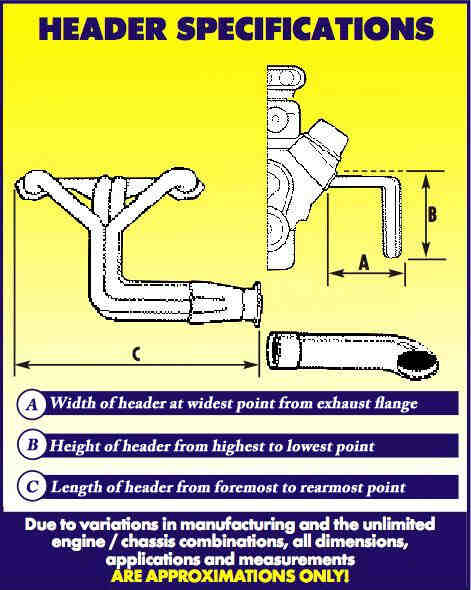

Header Dimension Chart (JPG)

Specs

Guides & Documents

Headers Sizing Chart (91013168)

Choosing the Right Headers

CARB Warning

For race/ off road use only

Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.

CA WARNING:

Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov

CARB warning

Speedway Motors 91013168 Specifications

KEY SPECS
MFG. Part #	91013168
Brand	Speedway Motors
Header Tube Type	Chassis
Exhaust Port Shape	Round
Flange Style	Standard
Primary Tube Diameter	1-5/8"
Material Type	Steel
Color	Natural
Weld-Up	No
Collector Diameter	3 Inch
Finish	Raw
Hardware Included	Yes
Gasket(s) Included	Yes
Collector Reducers Included	No
Collector Attachment Type	Slip fit

GENERAL
Sold in Quantity	Set
Collector Length	7.5"
Flange Thickness	0.31"
Port Height	1.51"
Port Width	1.51"

Ratings & Reviews

6 Reviews

Overall Assessment

Customers value our product for its excellent quality and practicality. They've found it particularly useful for dirt sports modifications, including fitting it on a 388 sbc and the metric frame modified. Appreciated for its adjustability, our product is also celebrated for its ease of customization, with users successfully cutting and welding to fit their chassis. They commend the inclusion of high-quality gaskets and bolts, clearly favoring our competitive pricing. Repeated purchases indicate customer satisfaction and confirmation of our product's superiority.

Write A Review

6 reviews

Filter by Ratings

Sort Reviews

yes

5.0

3 years ago

pickel

cincinnati ohio

Verified

i use on a dirt sport modifide with a 388 sbc..

Would Not Recommend

Great product

5.0

8 years ago

Dusty

West Virginia

Verified

Excellent

Would Recommend

Perfect fit

5.0

8 years ago

Marc200mph

Tioga, TX

Verified

Just what I needed for the metric frame modified, able to adjust length to fit car and very fast delivery time.

Would Recommend

Excellent product

5.0

9 years ago

Adam

Dublin ga

Verified

Very good

Would Recommend

Their great!

5.0

11 years ago

Racemayo2

Salt lake city

Verified

This were great to cut and weld to fit my chassis.

Would Recommend

Very nice headers.

5.0

12 years ago

PaceBrothersRacing

Undisclosed

Verified

Came with nice gaskets and bolts, not cheap stuff. Will buy again when need another set. Really like the price.

Would Recommend

Showing 6 of 6 reviews

Questions & Answers

4 Questions • 4 Answers

Sort Questions

Hi, I want to use these to possibly make fender well headers on my 61 olds gasser. What is the furthest they will reach out on dimension A with the 90's? I'd like to make them reach behind the front wheels.

by Squawk

• 2 years ago

1 answer

View Answer

Can you order just the end pieces to these heades?

by Billy

• 9 years ago

1 answer

View Answer

any idea if these will fit a 2000 D&M chassis? if so, consider them sold!!

by Randy

• 10 years ago

1 answer

View Answer

dimensions of part # 91013168 I need to know the header chart dimensions A and B. These headers look like they will work for a vintage open wheel center steer dirt modified I'm working on. But the frame rail could be close, with A and B I will know the headers will clear. Thank you, Jamie

by jamie99

• 12 years ago

1 answer

View Answer

4 of 4 questions shown
