9 Inch Ford Truck Rear End Disc Brake Kit

• Upgrade the braking system of your pre-1987 Ford truck or Bronco with this 9-Inch Ford Rear Disc Brake Conversion Kit
• Complete kit includes vented rotors, calipers with E-brake functionality, D154 brake pads, rubber hoses, mounting brackets, parking brake cables, and hardware
• Correct 5 on 5-1/2” bolt circle, allowing stock wheels to be retained
• Fits multiple Ford 9-inch axle flange styles, including Small Ford, Big Ford Old Style, and Big Ford New Style

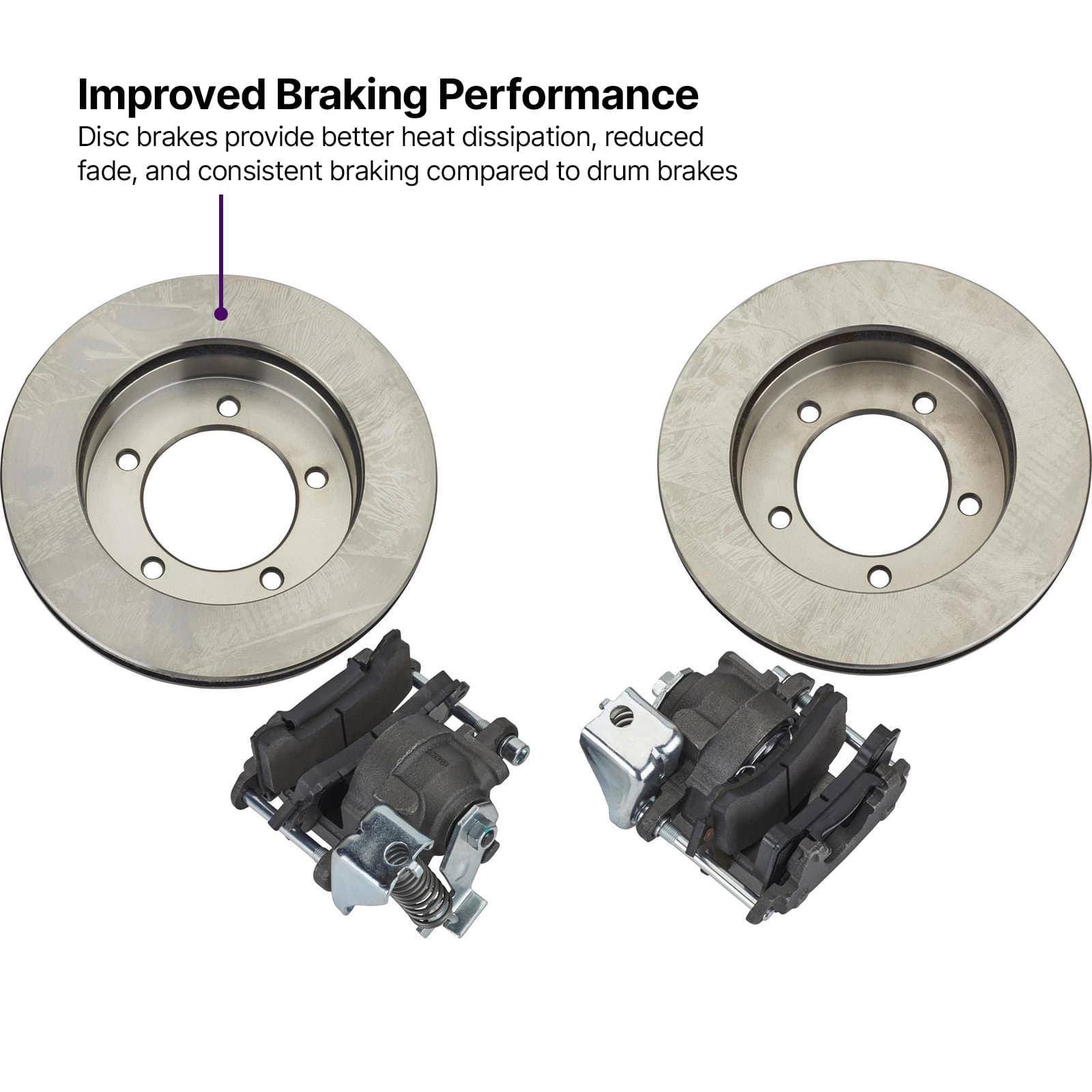

• 11-1/2” vented rotors and large single-piston calipers provide better heat dissipation, reduced fade, and consistent braking compared to drum brakes
• Emergency brake ready

Modern Braking for Classic Ford Trucks

In addition to being great looking trucks, full-size Ford trucks and Broncos well into the 80’s had a major benefit hidden underneath; the Ford 9-inch rearend. Many of them came from the factory with the now legendary 9-inch axle bolted up. This is the axle that hot rodders and off-roaders have been stuffing under just about everything for decades due to its legendary durability and ease of service. It has become the axle to have, and just one of the things that makes these Ford trucks great.

When these trucks and their venerated 9-inches were rolling off the assembly line, rear drum brakes were still considered the way to go, and generally got the job done in 70’s and 80’s traffic, but now those old drums are showing their age. When it’s time to add some stopping power to your pre-’87 Ford truck or Bronco, don’t spend a bunch of time and money wrestling with those heavy, rusty old drums. Instead, consider a rear disc brake conversion kit. Discs will add simplicity and most importantly some serious stopping power to your truck. But don’t use just any old 9-inch disc kit. This Speedway Motors 9-Inch Ford Truck Rear End Disc Brake Kit bolts right up to the three most common 9” axle flange styles and has the 5 on 5-1/2” wheel bolt circle that’s correct for your truck.

Complete Bolt-on Brake Kit with Emergency Brake

Not only will this kit bolt right up to your truck with no need for any welding or drilling, it’s also complete with all the hardware needed for installation. That means 11-1/2” vented rotors, calipers, slide bolts, brackets, and pads are all in the box. Even the rubber brake hoses with 3/8”-24 IFF adapter fittings and 54-1/2” and 64-1/2”-long emergency brake cables are included. A kit this complete will save the time, expense, and the annoyance of having to run around trying to source the odds and ends needed to complete the install on your truck.

The included caliper brackets are designed to work with three common Ford 9" rear axle flange sizes; Small Ford, Big Ford Old Style, and Big Ford New Style. They mount widely available single piston Cadillac Eldorado-style calipers with 10mm-1.5 inlets and a self-adjusting mechanical emergency brake. D154 brake pads are included, and these calipers use common GM Metric Brake Pads when it’s time for replacement. Replacement Rotors are also available to ensure a long service life for your disc kit.

It can be tricky to find a disc brake kit that retains the 5 on 5-1/2” bolt circle found on these trucks. It also happens that Ford has been using that bolt pattern since the 20’s. That means this brake kit is also an ideal upgrade for 9-inch equipped hot rods. With this kit, it’s possible to add disc brakes while keeping those cool vintage steelies or mags with the early Ford bolt pattern.

Installation Instructions (PDF)

Axle Flange Identification Chart (GIF)

The caliper piston pin needs to be aligned with the notch in the pad to avoid fitment issues.
