#910151

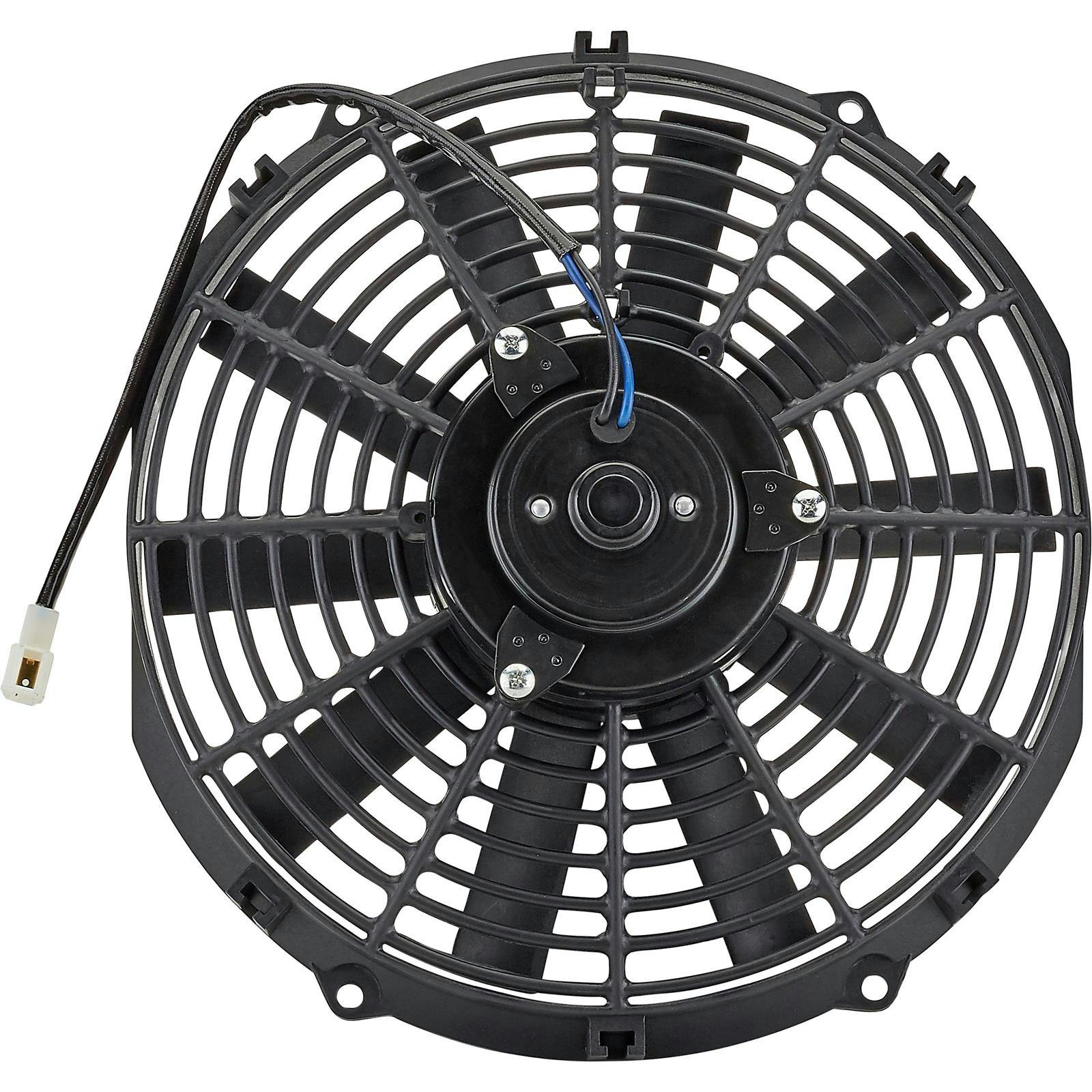

Speedway 6 Volt Electric Cooling Fan
- Help your vintage engine keep cool by adding this 6 volt electric cooling fan to your radiator
- Reversible design allows this fan to be mounted on either the front or back side of the radiator
- 6 volt fan motor works perfect for early cars with 6 volt electrical systems
Starting from
$106.99
/each
In Stock
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Universal Fit, Single Fan Quantity, CW/CCW Rotation
- Help your vintage engine keep cool by adding this 6 volt electric cooling fan to your radiator
- Reversible design allows this fan to be mounted on either the front or back side of the radiator
- 6 volt fan motor works perfect for early cars with 6 volt electrical systems
- Compatible with either positive or negative ground
- Mounting ears are included but straps or mounting kit is suggested to complete the installation and are sold separately
Key Specs
| Fan Diameter | Select Size (inches) |
| Fan Flow Type | Reversible |
| Rotation | CW/CCW |
| Blade Material | Plastic |
| Depth | Select Size (inches) |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicyDetails
Details
- Available in 12", 14" or 16" diameters
- Fans have 10 straight blades
- High impact plastic construction
- Sealed ball bearings for long life
- Can push or pull
- Works with positive or negative ground systems
- Includes mounting ears (straps not included)
For best results, be sure that your generator supplies enough current to power the fan. If it does not, check out our 6 Volt Alternator 91067169. It supplies additional current at idle to run electric accessories, unlike many factory generators. To learn more about the importance of using a fan shroud along with your cooling fan, read our tech article Radiator Cooling Performance.
*Relay and fan control sold separately.
Charts
Instructions (PDF)
Guides & Documents
Specifications
Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | Select Size (inches) to see |
| Brand | Speedway Motors |
| Fan Diameter | Select Size (inches) to see |
| Fan Flow Type | Reversible |
| Rotation | CW/CCW |
| Blade Material | Plastic |
| Depth | Select Size (inches) to see |
| GENERAL | |
| Fan Quantity | Single |
| Blade Count | 10-blade |
| Blade Finish | Natural |
| Blade Color | Black |
| Hub Material | Plastic |
| Hub Finish | Natural |
| Hub Color | Black |
| Amperage | Select Size (inches) to see |
| Voltage | 6 volts |
| Sold in Quantity | Each |
| Notes | Select Size (inches) to see |
Ratings & Reviews
4.7
36 Reviews
Customers find the 6 volt electric cooling fan to be highly practical, particularly for older cars such as '37 Buick, '54 Chevy, '41 Chevy coupe, '54 Plymouth Savoy that struggle with overheating, particularly in summer or heavy traffic. The product is lauded for its easy installation, although a few consumers noted the lack of mounting hardware. Despite this minor issue, the fan's effectiveness in cooling significant portions of the car, ease of wire reversal to modify air flow direction, and overall quality were widely praised. The fan's benefit specially stands out for 6V powered cars, which appear to have limited options in the market. Some users, however, mention that the product didn't quite meet their expectations, indicating possible variability in its effectiveness across different car models.
Ratings & Reviews
4.7
36 Reviews
Customers find the 6 volt electric cooling fan to be highly practical, particularly for older cars such as '37 Buick, '54 Chevy, '41 Chevy coupe, '54 Plymouth Savoy that struggle with overheating, particularly in summer or heavy traffic. The product is lauded for its easy installation, although a few consumers noted the lack of mounting hardware. Despite this minor issue, the fan's effectiveness in cooling significant portions of the car, ease of wire reversal to modify air flow direction, and overall quality were widely praised. The fan's benefit specially stands out for 6V powered cars, which appear to have limited options in the market. Some users, however, mention that the product didn't quite meet their expectations, indicating possible variability in its effectiveness across different car models.
4.7
36 reviews
5
28
4
6
3
1
2
0
1
1
Most Liked Positive Review
5.0
Helping hand when needed
My 54 plymouth savoy needed a little helpful when cruising the car shows or just on a hot day since my car still has the 6 volt postive ground electrical system. And still has its original flathead 6. The fan looks heavy duty and has some weight to it. I would defiantly look at your amp draws if anybody is worried about that, but this fan has very little draw which is very good on a older car like mine
Most Liked Negative Review
1.0
not what it said it was.
very pleased with the speed of the delivery; very pleased with customer service attention to me the customer; very pleased with the cost of shipping; very pleased with SPEEDWAY'S overall performance; not at all pleased with the product; it was advertised as .performing at 2500 cfm. it would not do this, it was very weak & would not cool my engine which was a 221cu", 85 hp flat head ford engine; had to send it back after installing & uninstalling. A serious disappointment & hassle for nothing.
Filter by Ratings
I like this fan
5.0
5 months ago
Jass
My
Verified
Put it on a 39 buick not easy but works great, thanks
Would Recommend
Fan blade NEEDS to be reversed for pusher!
4.0
6 months ago
Rosco
Swift, Current, Sk
Verified
Installed fan on front of radiator for 51 Chev Power Glide with stock radiator and engine. With the fan blade installed on the bracket as it arrived no air was felt through the rad no matter what direction the fan turned. More air was coming out the front! The fan has a dish shape to scoop the air. Reversing the fan blade made it push air through the rad. Speedway should update the instructions! P.S. I am a 45 year automotive journeyman technician.
Would Recommend
This if my third time for this fan!
5.0
6 months ago
Levi
Grayson GA
Verified
I have two others installed so obviously I'm pleased with the product.
Would Recommend
Nice quality cooling fan for an old 6 volt vehicle
5.0
a year ago
Driving Miss Gracie
Pittsburgh PA
Verified
I installed this on a 1949 Chevy truck as an auxiliary fan in addition to the mechanical fan on the engine, I mounted it in front of the radiator ( out of sight ) and reversed the wires to make the fan a pusher, so I have more cooling capability now. It was an easy install using a 30 amp relay and heavy duty toggle switch, I manually power it on/off as needed and it's wired to the ignition switch so it powers off when the engine is stopped. It's nice and quiet also.
Would Recommend
Yes
5.0
a year ago
None
Montana
Verified
None
Would Recommend
Great product
5.0
a year ago
Slick
Bayport Long Island
Verified
This cured my overheating problem with my 1946 Mercury Woodie
Would Recommend
Great Cooling Fan
5.0
a year ago
Bubba
Grayson, GA
Verified
Fan came as a puller. Since I was mounting on the front of the radiator, I simply turned the fan blade around. One small nut to remove, turn blade over and replace nut.
Would Recommend
Nice 6 volt electric fan!
4.0
2 years ago
Matt
Essex county Massachusetts
Verified
Can be used on a radiator, a/c condenser, large oil cooler,etc.Best as a puller fan.
Would Recommend
Looks like it will work great for what I needed it for.
5.0
2 years ago
Chris
Naples, FL
Verified
Radiator cooling fan.
Would Recommend
I would purchase this 6 volt electric cooling fan again.
5.0
3 years ago
Vinny C.
New York
Verified
This fan was easy to install and kept my '54 Chevy cool in traffic!
Would Recommend
Showing 10 of 36 reviews
