Product Summary

283, 302, 305, 307, 327, 350, 377, 383, 395, 400, Steel

  • Perfect for 1962-67 Chevy II gasser project
  • Thick flanges to prevent warping
  • Fully machined sealing bead to eliminate annoying leaks
  • Heavy gauge tubing for long header life
  • Armor Hot Coat® is a Speedway Motors custom ceramic heat proof coating that will keep the finish of these headers looking great for years to come

Key Specs

MFG. Part #930329H
BrandSpeedway Motors
Header Tube TypeFenderwell
FinishCeramic Coated
Material TypeSteel

Need To Know

This Product Will Ship Free

Shipping Policies & FAQs

Quick and Easy Returns

Return Policy

Details

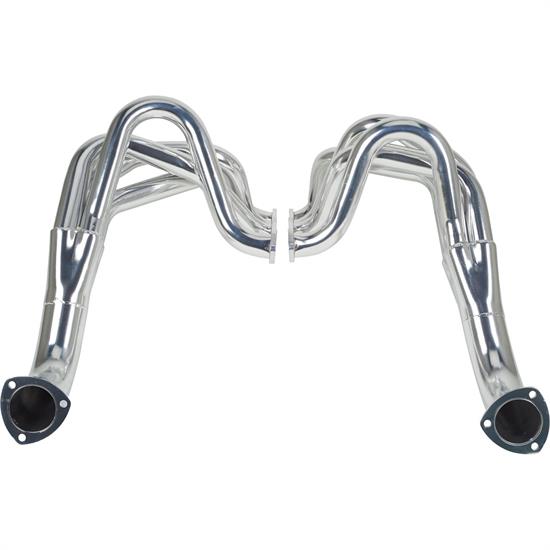

These Speedway brand fenderwell exit headers are perfect for your 1962-67 Chevy II gasser project. These headers feature thick flanges to prevent warping, a fully machined sealing bead to eliminate annoying leaks, and heavy gauge tubing for long header life. These fender well headers are finished with a polished ceramic coating for increased horsepower and long-lasting good looks.

  • Full-length
  • Armor Hot Coat®
  • 1-3/4" primary
  • 3" collector
  • Fits small block Chevy 283-400 V8
  • Includes gaskets, hardware and collector flanges

Charts

CARB Warning

For race/ off road use or for use on pre-1966 vehicles.

Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway, or if installed in vehicles model-year 1965 or older; motorcycles model-year 1977 or older; or off-highway recreational vehicles (such as off-road motorcycles and all-terrain vehicles) model-year 1996 and older. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.

Specifications

KEY SPECS
MFG. Part #930329H
BrandSpeedway Motors
Header Tube TypeFenderwell
FinishCeramic Coated
Material TypeSteel
GENERAL
Flange StyleStandard
Primary Tube Diameter1-3/4"
ColorSilver
Weld-UpNo
Exhaust Port ShapeSquare
Collector Diameter3 Inch
Collector Length15.75"
Flange Thickness.38"
Port Height1.63"
Port Width1.38"

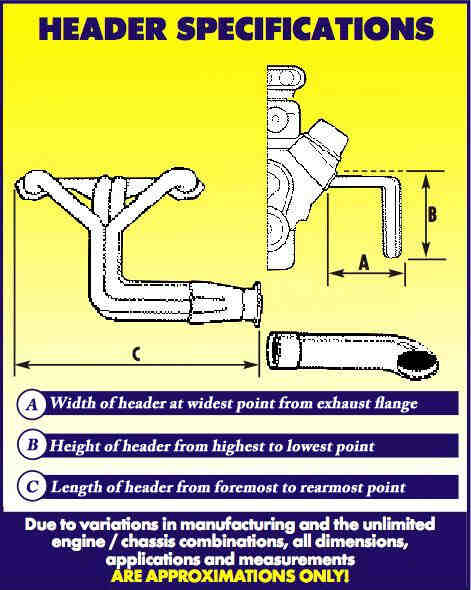

Drivers Side Dimension A15.75"
Drivers Side Dimension B14"
Drivers Side Dimension C28.75"
Passenger Side Dimension A16.5"
Passenger Side Dimension B12.5"
Passenger Side Dimension C29.5"
Hardware IncludedYes
Gasket(s) IncludedYes
Sold in QuantityPair
NotesIncludes gaskets, bolts, and reducers.
Collector Attachment Type3-bolt flange
Collector Reducers IncludedNo
Collector Reducer Exit Diameter2.5"
