Small Block Ford Lake Style Header Kit, 1-5/8 Tube, 4 Inch Cone
Small Block Ford Lake Style Header Kit, 1-5/8 Tube, 4 Inch Cone
Speedway Motors

|

#9300565

Small Block Ford Lake Style Header Kit, 1-5/8 Tube, 4 Inch Cone

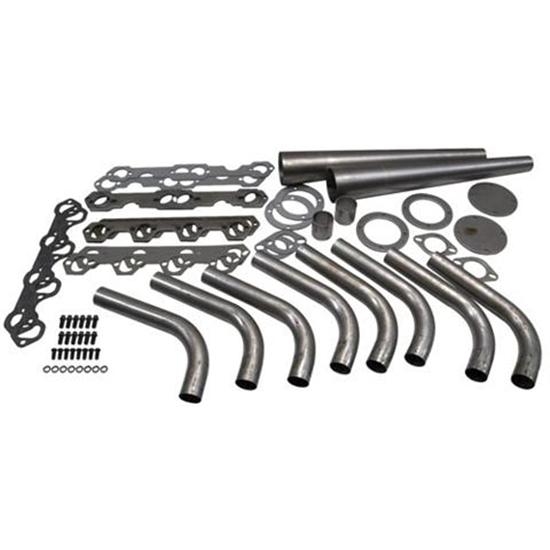

  • Kit include flange plates, pre-bent tubing, collector plates, block-off plates, gaskets, bolts and flanges for connection an under-car exhaust system
  • All tubing comes pre-bent
  • Choose 3 1/2" or 4" diameter cone
See More

$365.99

/set

In Stock

$372.72

Save $6.73


Quantity

Need Help? Call to Order

Add to a list

Share

Select an engine to verify Fitment

Select Engine

Product Summary

Universal Fit, Lake Style Header Tube Type, Steel, Raw

  • Kit include flange plates, pre-bent tubing, collector plates, block-off plates, gaskets, bolts and flanges for connection an under-car exhaust system
  • All tubing comes pre-bent
  • Choose 3 1/2" or 4" diameter cone
  • Tapered cones can be trimmed as needed
  • Fits Ford 289-351W

Comes as a Kit

View Kit Components

See more details

Key Specs

MFG. Part #9300565
Header Tube TypeLake Style
Exhaust Port ShapeOval
Flange StyleStandard
Primary Tube Diameter1-5/8"
See more specs

Need To Know

Need help?

855.313.9176
View the Help Center

Quick and Easy Returns

Return Policy

Speedway Motors 9300565 Details

Vintage style street rods are hotter than ever, and nothing gives your fenderless rod an authentic dry lakes competition look like a set of lakester headers. These lake style header kits allow you to build your own weld up headers and tailor them to your vehicle. Lakester header kit includes parts to complete both sides.

Include flange plates, pre-bent tubing, collector plates, block-off plates, gaskets, bolts and flanges for connecting an under-car exhaust system. Small block kits use 1-5/8" primary pipes. All tubing comes pre-bent. The 30" tapered cones can be trimmed as needed.  Fits Ford 289-351W.

Item Details

1-5/8" Tube, 4" Cone

Fits Ford 289-351W

Charts

Speedway Motors 9300565 Specifications

KEY SPECS
MFG. Part #9300565
BrandSpeedway Motors
Header Tube TypeLake Style
Exhaust Port ShapeOval
Flange StyleStandard
Primary Tube Diameter1-5/8"
Material TypeSteel
ColorNatural
Weld-UpYes
Collector Diameter4 Inch
FinishRaw
Hardware IncludedYes
Gasket(s) IncludedYes
GENERAL
Sold in QuantitySet
Notes30" x 4" cones. Includes (8) primary tubes, gaskets, hardware, and flanges.
Flange Thickness0.31"
Port Height1.94"
Port Width1.27"

Ratings & Reviews

5

6 Reviews

Overall Assessment

The product, a custom header kit, is highly recommended by customers for its quality, practicality, and usability. Customers rave about its excellent craftsmanship, consistency in tube bends, and the inclusion of necessary hardware. The kit's versatility has been praised, allowing users to tailor their headers to their liking. However, users do note that it requires a considerable amount of work to assemble, suggesting it's best suited for those competent in hands-on tasks. The kit was utilized successfully on various models, including a 50' f1 gasser and a 1930 Model A. A suggestion was made for the addition of an assembly guide to enhance ease of use.

Write A Review

5

6 reviews

5

6

4

0

3

0

2

0

1

0

Filter by Ratings

Great product

5.0

a year ago

Prostreethotrods

Ancaster.Ontario

Verified

Bolted right up to a ford 302...alittle welding and fitment..looks and performs well...sounds amazing

Would Recommend

Great headers when your into all custom

5.0

5 years ago

Roller

Santa fe N.M.

Used this header kit on my 50' f1 gasser. Lots of work but came out nice like the old days.

Would Recommend

I'll buy this kit again next time I build headers

5.0

7 years ago

Allkustoms

Vancouver British Columbia

Verified

I'm using these on my 28 model a coupe so far they've been easy to work with it would be nice if they came with a mandrel or at least a piece of plate with a cutout that matches the flanges preferably both to help form the tube to fit into the header flanges I'd expect to spend 8-12hours building the set and suggest a digital level and bevel set to get them to match side to side which is what I found to be the most time consuming besides initially figuring out where I wanted the cone to be

Would Recommend

Customer review image

highly recommended for do-it-yourself headers

5.0

11 years ago

Rod

Albuquerque

Verified

I would recommend this builder header kit to all my friends. it would have been nice if there were directions tips and tricks that would make assembly more easy.

Would Recommend

Customer review image
Customer review image

Great kit.

5.0

11 years ago

Grizzly

las Cruces, NM

Verified

Great kit for people with the tools and knowledge to build their own headers. Fitting the tubes into the flanges can be a pain. I used a vice to shape the tubes with a 11/8" square spacer inside the tube to form the ends.

Would Recommend

Lots of work but worth it !!

5.0

12 years ago

Lodac1

Moncton, New Brunswick, Canada

Verified

This is a good quality product, all the hardware was included and extras. Had a ford and a GM flange (the ford flange seemed to be plasma cut but the GM one was a punched one and I found it was a little poor on quality...but I was using the Ford flange) Comes all neatly packed in one box, the cone tubes are awesome and well made, all the bends were exactly the same and I had plenty of tube length to work with my application. (1930 Model A) They are now all done and in place. Took me about 2 days start to finish. They look awesome!!!! I definitely recommend this product if you want to fit your headers just like you want them. If it's not important to you then I recommend the pre fabricated ones because it's a LOT of grinding, welding, cutting and more grinding and welding and fitting and welding..... You get the idea. Thanks for reading!!! LODAC

Would Recommend

Customer review image

Showing 6 of 6 reviews

Questions & Answers

5 Questions • 6 Answers

Do you have a kit with flanges to suit an Aussie 351 Cleveland

by Azza

• 10 years ago

1 answer

View Answer

Hello, I ordered this kit and I'm assembling it now. Problem is, I've already messed up an elbow. Ha. So I was wondering if I could just order a couple of those.

by Joe

• 11 years ago

1 answer

View Answer

Flanges Does this include all shown two sets of flanges .do they fit ford gt 40 p heads

by Wolfmann

• 11 years ago

1 answer

View Answer

My heads are square port. Will these seal with a good gasket?

by slingshot

• 13 years ago

1 answer

View Answer

do the flanges have round ports or square?

by slingshot

• 13 years ago

2 answers

View Answers

5 of 5 questions shown
