#9300550

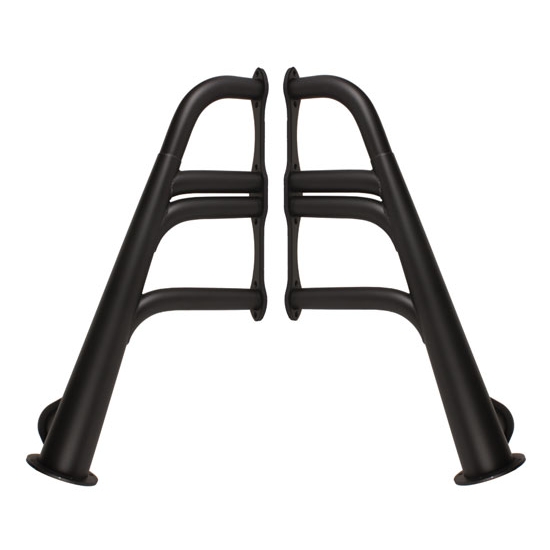

Small Block Chevy Lake Style Headers, Raw Finish
- Nothing gives your vintage rod that authentic dry lakes competition look like a set of lakester headers
- Fits 265-400 c.i. Small Block Chevy with standard or Vortec heads including D-port ZZ-4 style heads (not LT-1)
- Features 1-5/8" primary tubes and 3-1/2" collectors with a round port height of 1.72" and port width is 1.41"
$641.99
/set
In Stock
Quantity
Need Help? Call to Order
Add to a list
Select an engine to verify Fitment
Select Engine
Product Summary
Universal Fit, Lake Style Header Tube Type, Steel, Raw
- Nothing gives your vintage rod that authentic dry lakes competition look like a set of lakester headers
- Fits 265-400 c.i. Small Block Chevy with standard or Vortec heads including D-port ZZ-4 style heads (not LT-1)
- Features 1-5/8" primary tubes and 3-1/2" collectors with a round port height of 1.72" and port width is 1.41"
- Includes flange to connect 2.5” exhaust pipe and removable end plates allow you to run open headers with ease
- Black painted finish for corrosion resistance only during storage, gaskets and hardware included for a successful installation
Key Specs
| MFG. Part # | 9300550 |
| Header Tube Type | Lake Style |
| Exhaust Port Shape | Round |
| Flange Style | Standard |
| Primary Tube Diameter | 1-5/8" |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicySpeedway Motors 9300550 Details
Speedway Motors 9300550 Details
Nostalgia-style street rods are hotter than ever, and nothing gives your vintage rod that authentic dry lakes competition look like a set of lakester headers. These exposed small block Chevy headers work great on rods without hoods, but we’ve also seen them peeking through carefully trimmed hood sides. Each lakester header has a flange so you can connect it to a muffled under-car exhaust when the end plate is on.
- Fits 265-400 c.i. with standard or Vortec heads including D-port ZZ-4 style heads (not LT-1)
- 1-5/8" primary
- Includes flange to connect 2.5” exhaust pipe
- Removable end plates allow you to run open headers with ease
- Includes gaskets and mounting hardware
NOTE: Turn-outs NOT included. Headers come with end plates, but the turn outs are sold seperately.
Application
- 3-1/2" collector
- 2.50" exhaust hook-up
Use the illustration below with these measurements:
Lake Style Headers Diagram (GIF)
- A = 6-1/2"
- B = 4-1/4"
- C = 28-1/2"
- D = 11"
- E = 8-1/2"
- F = 12"
Charts
Lake Style Headers Diagram (GIF)
Header Dimension Chart (JPG)
Specs
Guides & Documents
Speedway Motors 9300550 Specifications
Speedway Motors 9300550 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 9300550 |
| Brand | Speedway Motors |
| Header Tube Type | Lake Style |
| Exhaust Port Shape | Round |
| Flange Style | Standard |
| Primary Tube Diameter | 1-5/8" |
| Material Type | Steel |
| Color | Natural |
| Weld-Up | No |
| Collector Diameter | 3-1/2 Inch |
| Finish | Raw |
| Hardware Included | Yes |
| Gasket(s) Included | Yes |
| GENERAL | |
| Sold in Quantity | Pair |
| Flange Thickness | .37" |
| Port Height | 1.72" |
| Port Width | 1.41" |
| Header Dimension A | 16.75" |
| Header Dimension B | 4.25" |
| Header Dimension C | 28.75" |
Ratings & Reviews
5
5 Reviews
Customers appreciate the overall quality and practicality of our product. They complimented its clean and attractive aesthetic, as well as the excellent fit which made for a hassle-free installation. The inclusion of all necessary hardware like gaskets, bolts, and flanges made reviewers even more satisfied. Furthermore, the product's construction quality is praised, with its solid build and clean welding being highlighted. Users, particularly those using it for projects such as the 29 Model A, found our headers to offer better value compared to other brands, emphasizing its high-quality to price ratio.
Ratings & Reviews
5
5 Reviews
Customers appreciate the overall quality and practicality of our product. They complimented its clean and attractive aesthetic, as well as the excellent fit which made for a hassle-free installation. The inclusion of all necessary hardware like gaskets, bolts, and flanges made reviewers even more satisfied. Furthermore, the product's construction quality is praised, with its solid build and clean welding being highlighted. Users, particularly those using it for projects such as the 29 Model A, found our headers to offer better value compared to other brands, emphasizing its high-quality to price ratio.
5
5 reviews
5
5
4
0
3
0
2
0
1
0
Filter by Ratings
Looks good
5.0
6 years ago
Skidly37
Halifax NS. Canada
Verified
Love the look of these headers
Would Recommend
Perfect fit
5.0
8 years ago
Dudley
los Molinos, Ca.
Verified
These were easy to install and everything I needed came in the kit.
Would Recommend
Nice quality. Perfect fit. No missing hardware. They sound g
5.0
9 years ago
Sumthin' funky
Riverside california
Verified
The service was great. They kept me informed on the progress of my delivery. The headers were everything I expected. I installed them on my 29 highboy traditional style hot rod.easy install-the header bolts and gaskets completed the process. No complaints.sumthin'
Would Recommend
Accurate
5.0
10 years ago
blackrat
wis
Verified
very good product and gaskets
Would Recommend
Great set of headers
5.0
11 years ago
hard2see
Bismarck, AR
Verified
Bought the lake style headers for a 29 Model A project. They're good quality, built solid with clean welding. Complete with all gaskets fasteners, plates, and flanges. Better price than others and you get everything you need..
Would Recommend
Showing 5 of 5 reviews
Questions & Answers
Questions & Answers
9 Questions • 12 Answers
Are there caps to cover the exhaust pipe connector for running the turnouts? Talking about the downpipe that the exhaust pipe would be mounted on
by Robert
• 8 years ago
3 answers
View Answers
I purchased this Part # 9300550, is there a block plate available to cover the bottom exhaust hook up?
by todd
• 8 years ago
2 answers
View Answers
i want my Exhaust exit to be only through the End of Large 3 1/2" Megaphone. Do you offer this Lake Style Header without the 2" bottom exhaust outlet pre-welded in place?
by David
• 10 years ago
1 answer
View Answer
After first startup, these headers are smoking pretty bad, I'm assuming due to the paint, is this normal?
by Dans4402
• 11 years ago
1 answer
View Answer
Do you sell the turn outs? If so what is the part number? I could also use the bolt pattern. Thank you.
by fussydude
• 12 years ago
1 answer
View Answer
can you or do they have a baffle/ muffler in the larger outlet tube? or can you purchase one for them?
by elcoman
• 12 years ago
1 answer
View Answer
See details below about headers. The dimensioned schematic shows the headers coming off the block horizontally straight out. The picture makes it apear they come of the block down at an angle from straight. What do they do?
by dumbbutt
• 13 years ago
1 answer
View Answer
What kind of paint are the plain ones painted with? Is it a high temp paint? Or just an etching primer? Is it black like the photo?
by tfeverfred
• 13 years ago
1 answer
View Answer
If I opt to use the turnouts and run no exhaust underneath the vehicle... are there end plates made for the collectors on the bottom that can be installed? Or are there headers available in that format?
by Billy
• 14 years ago
1 answer
View Answer
9 of 9 questions shown
