#930CR100

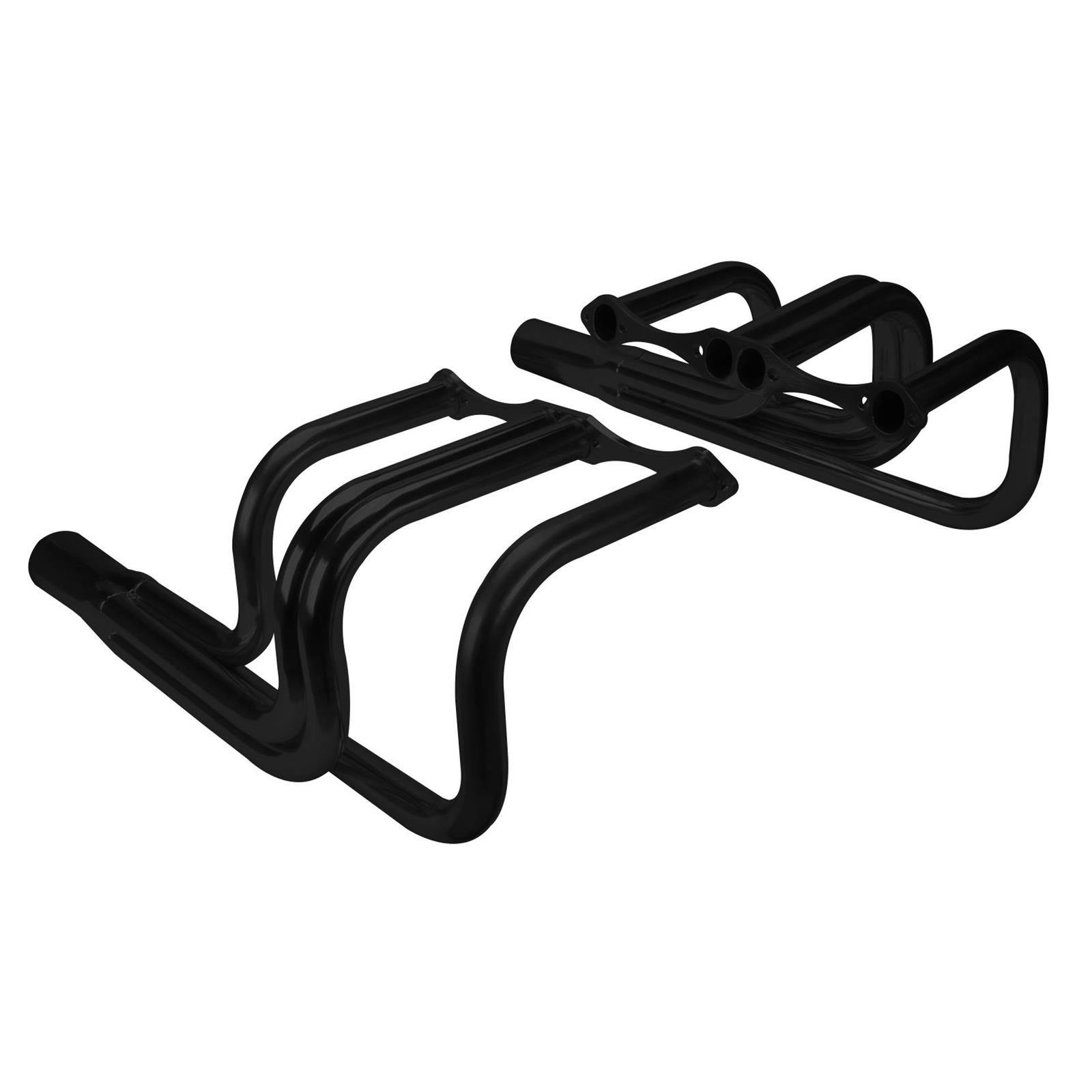

Small Block Chevy Classic T-Bucket Headers, Raw Finish
- Available in plain steel, chrome plated, AHC coated or stainless (outside only)
- Extensions and mufflers sold separately
$307.99
/pair
In Stock
Quantity
Need Help? Call to Order
Add to a list
Select an engine to verify Fitment
Select Engine
Product Summary
Universal Fit, Roadster Header Tube Type, Steel, Raw
- Available in plain steel, chrome plated, AHC coated or stainless (outside only)
- Extensions and mufflers sold separately
Key Specs
| MFG. Part # | 930CR100 |
| Header Tube Type | Roadster |
| Exhaust Port Shape | Oval |
| Flange Style | Standard |
| Primary Tube Diameter | 1-5/8" |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicySpeedway Motors 930CR100 Details
Speedway Motors 930CR100 Details
These small-block Chevy headers have a graceful, nostalgic shape that makes them perfect for T-bucket roadsters and similar hoodless street rods. The classic appearance is backed up by quality construction and an easy-breathing design that can help unlock your engine’s performance potential.
- Fits 265-400 c.i. Small Block Chevy V8s
- Exhaust is routed outside the frame rail and along the side of the car
- Fits most angle plug heads
- Extensions and mufflers sold separately
- Includes gaskets and bolts
Charts

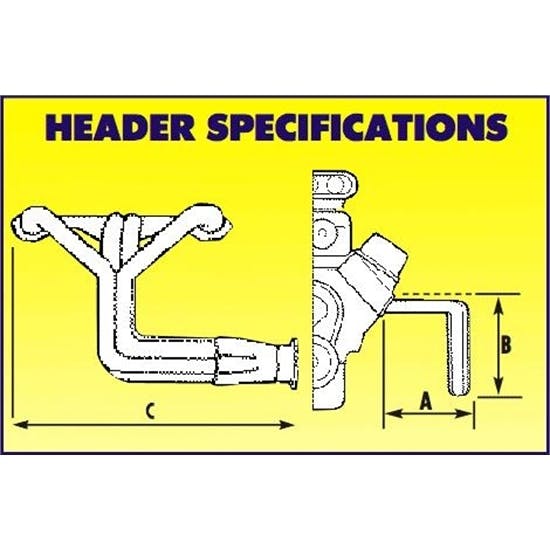

Header Dimensions (GIF)
Installation Guide (PDF)
CARB Warning
For race/ off road use or for use on pre-1966 vehicles.
CARB Warning
For race/ off road use or for use on pre-1966 vehicles.
Speedway Motors 930CR100 Specifications
Speedway Motors 930CR100 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 930CR100 |
| Brand | Speedway Motors |
| Header Tube Type | Roadster |
| Exhaust Port Shape | Oval |
| Flange Style | Standard |
| Primary Tube Diameter | 1-5/8" |
| Material Type | Steel |
| Color | Natural |
| Weld-Up | No |
| Collector Diameter | 3-1/2 Inch |
| Finish | Raw |
| Hardware Included | Yes |
| Gasket(s) Included | Yes |
| Collector Reducers Included | No |
| Collector Attachment Type | Slip fit |
| GENERAL | |
| Sold in Quantity | Pair |
| Collector Length | 9.25" |
| Flange Thickness | .38" |
| Port Height | 1.63" |
| Port Width | 1.38" |
| Tube Length | 37" |
| Overall Height | 12" |
| Drivers Side Dimension A | 16.35" |
| Drivers Side Dimension B | 12.4" |
| Drivers Side Dimension C | 37" |
| Passenger Side Dimension A | 15.95" |
| Passenger Side Dimension B | 12.2" |
| Passenger Side Dimension C | 37.25" |
Ratings & Reviews
5
4 Reviews
Customers acknowledge the product by lauding its excellent fit and value-for-money. The headers have been noted as practical and beneficial for providing ample clearance when the rod is placed on the ground. The product's quality is amplified by its well-done welds, eliminating the need for extra cleanup prior to painting. The product's versatility and suitability are affirmed by customers using it on different car models, including a T-bucket hot rod, implying its wide-ranging applicability. The inclusion of gaskets has also been highlighted, further enhancing user convenience. The product, evidently, outshines competitors by providing high-quality, well-crafted and convenient features.
Ratings & Reviews
5
4 Reviews
Customers acknowledge the product by lauding its excellent fit and value-for-money. The headers have been noted as practical and beneficial for providing ample clearance when the rod is placed on the ground. The product's quality is amplified by its well-done welds, eliminating the need for extra cleanup prior to painting. The product's versatility and suitability are affirmed by customers using it on different car models, including a T-bucket hot rod, implying its wide-ranging applicability. The inclusion of gaskets has also been highlighted, further enhancing user convenience. The product, evidently, outshines competitors by providing high-quality, well-crafted and convenient features.
5
4 reviews
5
4
4
0
3
0
2
0
1
0
Filter by Ratings
Nice product, nice price!
5.0
6 years ago
Dennis
Chiefland Fl.
Verified
:)
Would Recommend
nice fit
5.0
7 years ago
hot rod
douglas wyoming
Verified
when putting the rod on the ground the's headers work great for the clearnce, keep in low
Would Recommend
Goin back to my roots
5.0
15 years ago
Mike Maintenance
Mansfield,ma.
Verified
Well made headers ,I heat painted flat black for that old school look ,welds were so well done no clean up was needed before painting ,great fit on my car and gasgets came with the headers !
Would Recommend
great product, [...]
5.0
16 years ago
harley hall
Worland, Wy
I used this product on my, from scratch, 23 t bucket hot rod! Bet you would sure like a picture of this one.
Would Recommend
Showing 4 of 4 reviews
Fitment
Fitment
1959 Chevy 3A
2-Piece Rear Main Chevy 283
1959 Chevy 3B
2-Piece Rear Main Chevy 283
1959 Chevy 3C
2-Piece Rear Main Chevy 283
1959 Chevy 3D
2-Piece Rear Main Chevy 283
1959 Chevy 3E
2-Piece Rear Main Chevy 283
1959 Chevy 3F
2-Piece Rear Main Chevy 283
1959 Chevy 3G
2-Piece Rear Main Chevy 283
1957 Chevy Bel Air
2-Piece Rear Main Chevy 265
2-Piece Rear Main Chevy 283
1958-1967 Chevy Bel Air
2-Piece Rear Main Chevy 283
1968 Chevy Bel Air
Gen 1 L14 Small Block Chevy
1970-1975 Chevy Bel Air
2-Piece Rear Main Chevy 400
1958-1967 Chevy Biscayne
2-Piece Rear Main Chevy 283
1968 Chevy Biscayne
Gen 1 L14 Small Block Chevy
1970-1972 Chevy Biscayne
2-Piece Rear Main Chevy 400
1969-1973 Chevy Blazer
Gen 1 L14 Small Block Chevy
1958-1961 Chevy Brookwood
2-Piece Rear Main Chevy 283
1969 Chevy Brookwood
Gen 1 L14 Small Block Chevy
1970-1972 Chevy Brookwood
2-Piece Rear Main Chevy 400
Gen 1 L14 Small Block Chevy
1960-1967 Chevy C10
2-Piece Rear Main Chevy 283
1968-1973 Chevy C10
Gen 1 L14 Small Block Chevy
1976-1980 Chevy C10
2-Piece Rear Main Chevy 400
1960-1967 Chevy C10 Suburban
2-Piece Rear Main Chevy 283
1968-1973 Chevy C10 Suburban
Gen 1 L14 Small Block Chevy
1960-1967 Chevy C20
2-Piece Rear Main Chevy 283
1968-1973 Chevy C20
Gen 1 L14 Small Block Chevy
1976-1980 Chevy C20
2-Piece Rear Main Chevy 400
1960-1967 Chevy C20 Suburban
2-Piece Rear Main Chevy 283
1968-1973 Chevy C20 Suburban
Gen 1 L14 Small Block Chevy
1976-1980 Chevy C20 Suburban
2-Piece Rear Main Chevy 400
1960-1967 Chevy C30
2-Piece Rear Main Chevy 283
1968-1973 Chevy C30
Gen 1 L14 Small Block Chevy
1976-1979 Chevy C30
2-Piece Rear Main Chevy 400
1967-1968 Chevy Camaro
Gen 1 DZ Small Block Chevy
1969 Chevy Camaro
Gen 1 DZ Small Block Chevy
Gen 1 L14 Small Block Chevy
1970-1973 Chevy Camaro
Gen 1 L14 Small Block Chevy
1980-1981 Chevy Camaro
2-Piece Rear Main Chevy 267
1966-1967 Chevy Caprice
2-Piece Rear Main Chevy 283
1968-1969 Chevy Caprice
Gen 1 L14 Small Block Chevy
1970-1973 Chevy Caprice
2-Piece Rear Main Chevy 400
Gen 1 L14 Small Block Chevy
1974-1976 Chevy Caprice
2-Piece Rear Main Chevy 400
1980-1982 Chevy Caprice
2-Piece Rear Main Chevy 267
1964-1967 Chevy Chevelle
2-Piece Rear Main Chevy 283
1968-1969 Chevy Chevelle
Gen 1 L14 Small Block Chevy
1970-1973 Chevy Chevelle
2-Piece Rear Main Chevy 400
Gen 1 L14 Small Block Chevy
1963-1967 Chevy Chevy II
2-Piece Rear Main Chevy 283
1968 Chevy Chevy II
Gen 1 L14 Small Block Chevy
1957-1961 Chevy Corvette
2-Piece Rear Main Chevy 283
1957 Chevy Del Ray
2-Piece Rear Main Chevy 265
2-Piece Rear Main Chevy 283
1958 Chevy Del Ray
2-Piece Rear Main Chevy 283
1959-1960 Chevy El Camino
2-Piece Rear Main Chevy 283
1964-1967 Chevy El Camino
2-Piece Rear Main Chevy 283
1968-1969 Chevy El Camino
Gen 1 L14 Small Block Chevy
1970-1973 Chevy El Camino
2-Piece Rear Main Chevy 400
Gen 1 L14 Small Block Chevy
1974-1976 Chevy El Camino
2-Piece Rear Main Chevy 400
1979-1982 Chevy El Camino
2-Piece Rear Main Chevy 267
1969 Chevy Estate
Gen 1 L14 Small Block Chevy
1970 Chevy Estate
2-Piece Rear Main Chevy 400
Gen 1 L14 Small Block Chevy
1976 Chevy G10
2-Piece Rear Main Chevy 400
1968-1973 Chevy G10 Van
Gen 1 L14 Small Block Chevy
1975-1980 Chevy G20
2-Piece Rear Main Chevy 400
1967 Chevy G20 Van
2-Piece Rear Main Chevy 283
1968-1973 Chevy G20 Van
Gen 1 L14 Small Block Chevy
1975-1980 Chevy G30
2-Piece Rear Main Chevy 400
1958-1967 Chevy Impala
2-Piece Rear Main Chevy 283
1968-1969 Chevy Impala
Gen 1 L14 Small Block Chevy
1970-1973 Chevy Impala
2-Piece Rear Main Chevy 400
Gen 1 L14 Small Block Chevy
1974-1976 Chevy Impala
2-Piece Rear Main Chevy 400
1980-1982 Chevy Impala
2-Piece Rear Main Chevy 267
1960-1967 Chevy K10
2-Piece Rear Main Chevy 283
1968-1973 Chevy K10
Gen 1 L14 Small Block Chevy
1975-1980 Chevy K10
2-Piece Rear Main Chevy 400
1960-1967 Chevy K10 Suburban
2-Piece Rear Main Chevy 283
1968-1973 Chevy K10 Suburban
Gen 1 L14 Small Block Chevy
1975-1979 Chevy K10 Suburban
2-Piece Rear Main Chevy 400
1960-1967 Chevy K20
2-Piece Rear Main Chevy 283
1968-1973 Chevy K20
Gen 1 L14 Small Block Chevy
1975-1980 Chevy K20
2-Piece Rear Main Chevy 400
1967 Chevy K20 Panel
2-Piece Rear Main Chevy 283
1960-1967 Chevy K20 Suburban
2-Piece Rear Main Chevy 283
1968-1973 Chevy K20 Suburban
Gen 1 L14 Small Block Chevy
1975-1980 Chevy K20 Suburban
2-Piece Rear Main Chevy 400
1968-1973 Chevy K30
Gen 1 L14 Small Block Chevy
1977-1980 Chevy K30
2-Piece Rear Main Chevy 400
1975-1979 Chevy K5 Blazer
2-Piece Rear Main Chevy 400
1959-1961 Chevy Kingswood
2-Piece Rear Main Chevy 283
1969 Chevy Kingswood
Gen 1 L14 Small Block Chevy
1970-1972 Chevy Kingswood
2-Piece Rear Main Chevy 400
Gen 1 L14 Small Block Chevy
1973 Chevy Laguna
2-Piece Rear Main Chevy 400
Gen 1 L14 Small Block Chevy
1974-1976 Chevy Laguna
2-Piece Rear Main Chevy 400
1964-1967 Chevy Malibu
2-Piece Rear Main Chevy 283
1973 Chevy Malibu
2-Piece Rear Main Chevy 400
Gen 1 L14 Small Block Chevy
1974-1976 Chevy Malibu
2-Piece Rear Main Chevy 400
1979-1982 Chevy Malibu
2-Piece Rear Main Chevy 267
1970-1976 Chevy Monte Carlo
2-Piece Rear Main Chevy 400
1979-1982 Chevy Monte Carlo
2-Piece Rear Main Chevy 267
1975-1976 Chevy Monza
2-Piece Rear Main Chevy 262
1957 Chevy Nomad
2-Piece Rear Main Chevy 265
2-Piece Rear Main Chevy 283
1958-1961 Chevy Nomad
2-Piece Rear Main Chevy 283
1969-1973 Chevy Nova
Gen 1 L14 Small Block Chevy
1975 Chevy Nova
2-Piece Rear Main Chevy 262
1957 Chevy One-Fifty Series
2-Piece Rear Main Chevy 265
2-Piece Rear Main Chevy 283
1976 Chevy P30
2-Piece Rear Main Chevy 400
1961-1962 Chevy P30 Series
2-Piece Rear Main Chevy 283
1968-1969 Chevy P30 Van
Gen 1 L14 Small Block Chevy
1973 Chevy P30 Van
Gen 1 L14 Small Block Chevy
1959-1961 Chevy Parkwood
2-Piece Rear Main Chevy 283
1957 Chevy Sedan Delivery
2-Piece Rear Main Chevy 265
2-Piece Rear Main Chevy 283
1958 Chevy Sedan Delivery
2-Piece Rear Main Chevy 283
1947-1959 Chevy Suburban
2-Piece Rear Main Chevy 265
1960-1967 Chevy Suburban
2-Piece Rear Main Chevy 283
1969 Chevy Townsman
Gen 1 L14 Small Block Chevy
1970-1972 Chevy Townsman
2-Piece Rear Main Chevy 400
Gen 1 L14 Small Block Chevy
1955 Chevy Truck
2-Piece Rear Main Chevy 265
1957 Chevy Truck
2-Piece Rear Main Chevy 265
2-Piece Rear Main Chevy 283
1958 Chevy Truck
2-Piece Rear Main Chevy 283
1960 Chevy Truck
2-Piece Rear Main Chevy 283
1955 Chevy Two-Ten Series
2-Piece Rear Main Chevy 265
1957 Chevy Two-Ten Series
2-Piece Rear Main Chevy 265
2-Piece Rear Main Chevy 283
1958 Chevy Yeoman
2-Piece Rear Main Chevy 283
1966 GMC 1000
2-Piece Rear Main Chevy 283
1960 GMC 1000 Series
2-Piece Rear Main Chevy 283
1962-1965 GMC 1000 Series
2-Piece Rear Main Chevy 283
1960-1965 GMC 1500 Series
2-Piece Rear Main Chevy 283
1966 GMC 2500
2-Piece Rear Main Chevy 283
1960-1965 GMC 2500 Series
2-Piece Rear Main Chevy 283
1960-1966 GMC 3000
2-Piece Rear Main Chevy 283
1960-1966 GMC 3500
2-Piece Rear Main Chevy 283
1967 GMC C25/C2500 Pickup
2-Piece Rear Main Chevy 283
1968-1972 GMC C25/C2500 Pickup
Gen 1 L14 Small Block Chevy
1967 GMC C25/C2500 Suburban
2-Piece Rear Main Chevy 283
1968-1972 GMC C25/C2500 Suburban
Gen 1 L14 Small Block Chevy
1967 GMC C35/C3500 Pickup
2-Piece Rear Main Chevy 283
1968-1972 GMC C35/C3500 Pickup
Gen 1 L14 Small Block Chevy
1973-1974 GMC C35/C3500 Pickup
2-Piece Rear Main Chevy 400
1975-1978 GMC K15
2-Piece Rear Main Chevy 400
1975-1978 GMC K15 Suburban
2-Piece Rear Main Chevy 400
1967-1974 GMC K15/K1500 Pickup
2-Piece Rear Main Chevy 400
1967-1974 GMC K15/K1500 Suburban
2-Piece Rear Main Chevy 400
1979-1980 GMC K1500 Suburban
2-Piece Rear Main Chevy 400
1975-1978 GMC K25
2-Piece Rear Main Chevy 400
1975-1978 GMC K25 Suburban
2-Piece Rear Main Chevy 400
1967 GMC K25/K2500 Pickup
2-Piece Rear Main Chevy 283
1968-1972 GMC K25/K2500 Pickup
Gen 1 L14 Small Block Chevy
1973-1974 GMC K25/K2500 Pickup
2-Piece Rear Main Chevy 400
1967 GMC K25/K2500 Suburban
2-Piece Rear Main Chevy 283
1968-1972 GMC K25/K2500 Suburban
Gen 1 L14 Small Block Chevy
1973-1974 GMC K25/K2500 Suburban
2-Piece Rear Main Chevy 400
1979-1986 GMC K2500 Suburban
2-Piece Rear Main Chevy 400
1967 GMC K35/K3500 Pickup
2-Piece Rear Main Chevy 283
1968-1972 GMC K35/K3500 Pickup
Gen 1 L14 Small Block Chevy
1973-1974 GMC K35/K3500 Pickup
2-Piece Rear Main Chevy 400
1966 GMC P1000
2-Piece Rear Main Chevy 283
1973-1977 GMC Sprint
2-Piece Rear Main Chevy 400
1955-1959 GMC Suburban
2-Piece Rear Main Chevy 265
2-Piece Rear Main Chevy 283
1960-1966 GMC Suburban
2-Piece Rear Main Chevy 283
1967 GMC Suburban
Gen 1 L14 Small Block Chevy
1955 GMC Truck
2-Piece Rear Main Chevy 265
1956-1960 GMC Truck
2-Piece Rear Main Chevy 265
2-Piece Rear Main Chevy 283
1965-1966 Studebaker Commander
2-Piece Rear Main Chevy 283
1965-1966 Studebaker Cruiser
2-Piece Rear Main Chevy 283
1965-1966 Studebaker Daytona
2-Piece Rear Main Chevy 283
1966 Studebaker Wagonaire
2-Piece Rear Main Chevy 283
