Product Summary

Universal Fit, Roadster Header Tube Type, Steel, Silver

  • Available in plain steel, chrome plated, AHC coated or stainless (outside only)
  • Extensions and mufflers sold separately
  • Armor Hot Coat® is a Speedway Motors custom ceramic heat proof coating that will keep the finish of these headers looking great for years to come
See more details

Key Specs

Header Tube TypeRoadster
Exhaust Port ShapeOval
Flange StyleStandard
Primary Tube Diameter1-5/8"
Material TypeSteel
See more specs

Need To Know

Quick and Easy Returns

Return Policy

Speedway Motors 930CR100H Details

These small-block Chevy headers have a graceful, nostalgic shape that makes them perfect for T-bucket roadsters and similar hoodless street rods. The classic appearance is backed up by quality construction and an easy-breathing design that can help unlock your engine’s performance potential. These ceramic coated headers provide superior peformance and durability.

  • Fits 265-400 c.i. Small Block Chevy V8s
  • Exhaust is routed outside the frame rail and along the side of the car
  • Fits most angle plug heads
  • Extensions and mufflers sold separately
  • Includes gaskets and bolts
Armor Hot Coat® (AHC) is a heat resistant, ceramic coating applied to the outside of the header. This coating will reflect heat, which helps retain more heat within the header tube while simultaneously speeding up the exhaust flow. Not only will this coating help you make more horsepower, it also keeps your headers rust-free, looking great, and lasting longer (when properly maintained). If you are looking for a show-quality finish for your headers, this is it! Our AHC will withstand exhaust temperatures of up to 1300° F.

Charts

Specs


Warranty Information

Click for details

AHC Warning: AHC coatings will burn and be damaged at exhaust temperatures over 1300 degrees. A lean fuel mixture can generate exhaust temperatures exceeding 1700-1900 degrees. If the coating is damaged due to a lean condition, the coating will not be warranted, but can be recoated for a fee.

Not legal for sale or use in California on pollution controlled vehicles

CARB Warning

For race/ off road use or for use on pre-1966 vehicles.

Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway, or if installed in vehicles model-year 1965 or older; motorcycles model-year 1977 or older; or off-highway recreational vehicles (such as off-road motorcycles and all-terrain vehicles) model-year 1996 and older. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.

Speedway Motors 930CR100H Specifications

KEY SPECS
MFG. Part #930CR100H
BrandSpeedway Motors
Header Tube TypeRoadster
Exhaust Port ShapeOval
Flange StyleStandard
Primary Tube Diameter1-5/8"
Material TypeSteel
ColorSilver
Weld-UpNo
Collector Diameter3-1/2 Inch
FinishCeramic Coated
Collector Attachment TypeSlip fit
Hardware IncludedYes
Gasket(s) IncludedYes
Collector Reducers IncludedNo

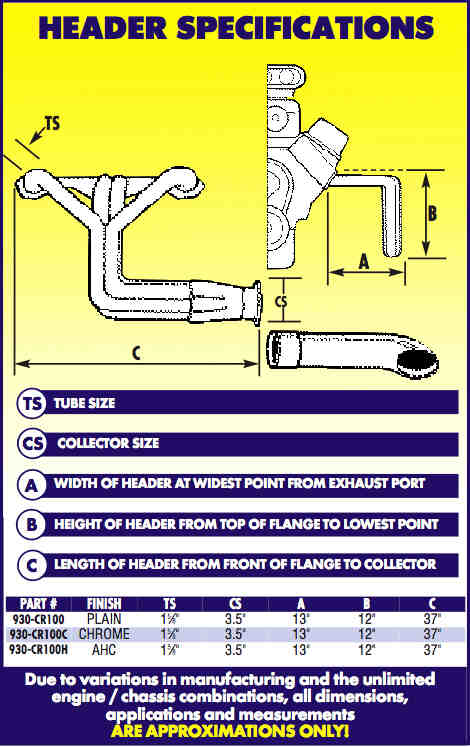

GENERAL
Collector Length9.25"
Flange Thickness.38"
Port Height1.63"
Port Width1.38"
Tube Length37"
Overall Height12"
Header Dimension A13.00"
Header Dimension B12.00"
Header Dimension C37.00"
Drivers Side Dimension A16.35"
Drivers Side Dimension B12.4"
Drivers Side Dimension C37"
Passenger Side Dimension A15.95"
Passenger Side Dimension B12.2"
Passenger Side Dimension C37.25"
Sold in QuantityPair

Ratings & Reviews

4.3

8 Reviews

Overall Assessment

Customers appreciate the stylish looks and quality of our product, particularly noting its admirable heat resistance and superior fit. Despite some flaws in the AHC coating, the high-grade material reportedly cools faster and is efficiently coated inside and out, which adds to the longevity and use. Users commend the product on its practicality in steering gear bracket positioning during hot rod builds. While some suggest room for improvements, many expressed satisfaction and recommended it over competitors', especially for T-bucket installs.

4.2

8 reviews

5

3

4

4

3

1

2

0

1

0

Filter by Ratings

Doesn't fit a 32 ford..

3.0

a year ago

FedEx haters.

Maryland

Verified

Don't expect this to fit a 32 ford..It's too narrow for the body..I had to cut & weld to make it, sorta, fit..Otherwise, it's a good part..

Would Not Recommend

Decent product but to wide

4.0

6 years ago

Jorin Kragness

Wildrose Nd 58795

Verified

Product is gunna need modifications

Would Recommend

I would probably considering a different brand

4.0

6 years ago

Mike D

New Jersey

Verified

Good from far, far from good. A lot of flaws in the AHC coating. dull spots. minor scratches, ect. I already put them on, so I will keep them for now.

Would Not Recommend

Great product!

5.0

7 years ago

Ben

Georgetown, SC

Verified

Fit and finish were spot on! Easy to understand installation instructions. Look great on my T- bucket!!!

Would Recommend

Look grate sounds even better

4.0

8 years ago

T Bucket

Auburndale Florida

Verified

They hold up better to the heat in the chrome ones but they are not as shiny as the chrome

Would Recommend

Load More Reviews

Showing 5 of 8 reviews
