Product Summary

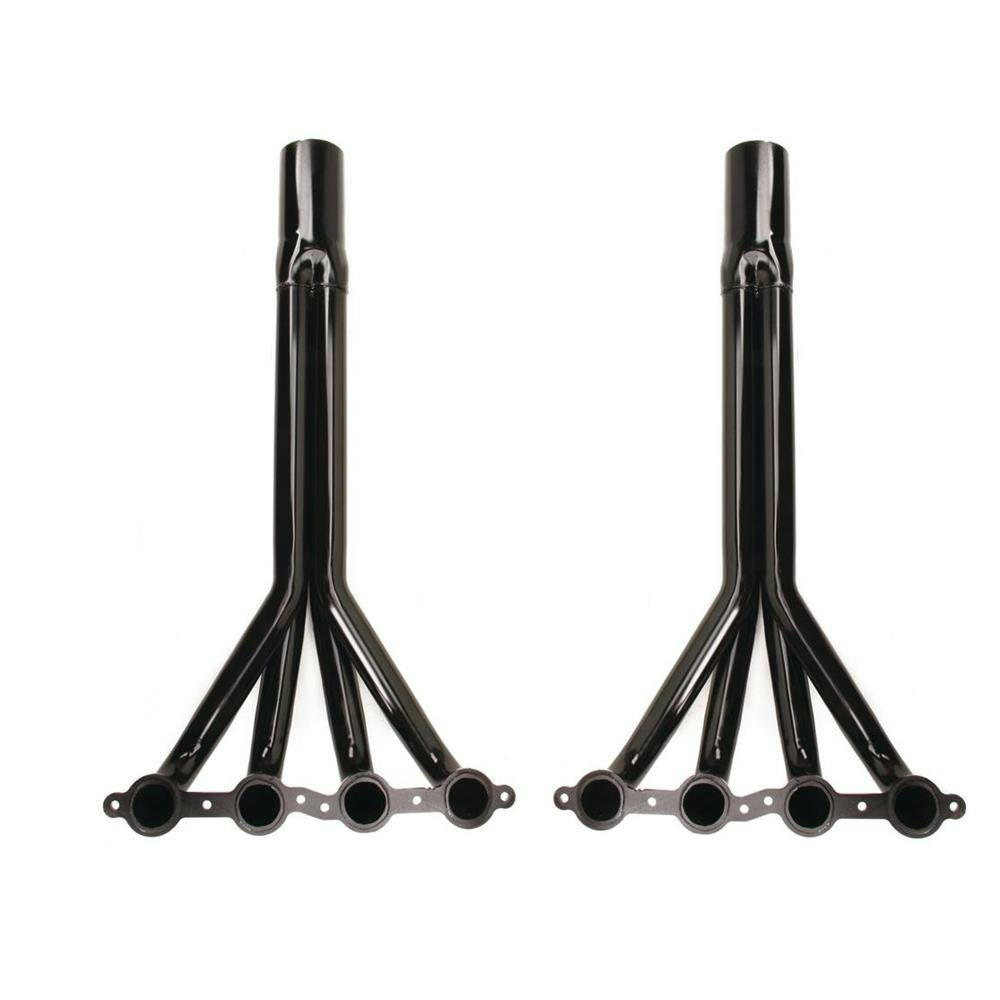

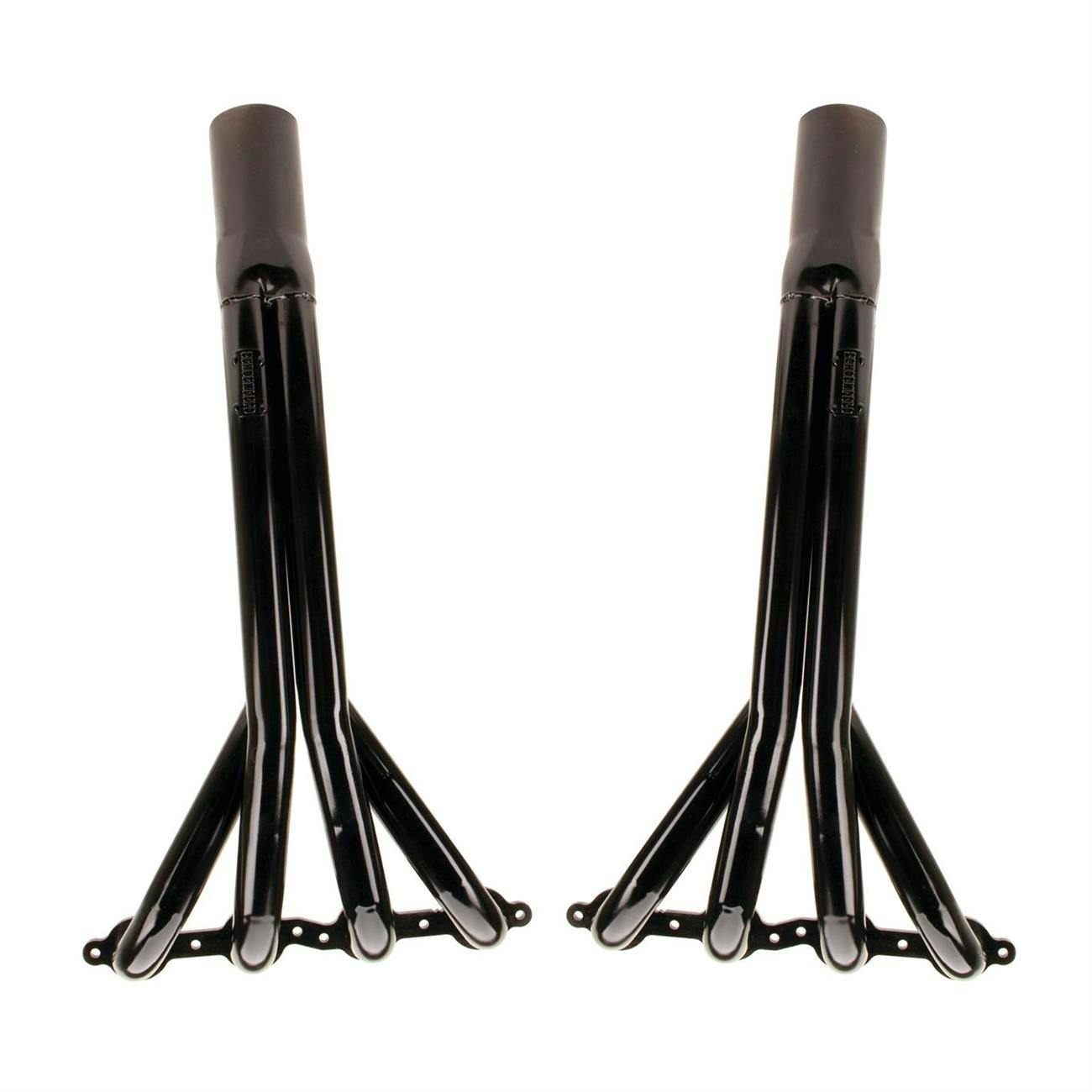

Upswept Header Tube Type, Standard Flange Style, Steel

  • Primaries have a 1-3/4" tube diameter
  • They are made from high flow mandrel bent tubing
  • Collectors have a diameter measuring 3.5" and are 8" long
  • Features an all steel construction with a black painted finish for added protection
See more details

Key Specs

MFG. Part #1514-LS1
Header Tube TypeUpswept
Flange StyleStandard
Primary Tube Diameter1-3/4"
Material TypeSteel
See more specs

Need To Know

Quick and Easy Returns

Return Policy

Schoenfeld 1514-LS1 Details

This part is for the LS1. Bolts and gaskets are included. This also has high flow mandrel bent tubing.

  • 1-3/4" tube diameter
  • 8" collector length
  • 3-1/2" collector diameter


Guides & Documents

CARB Warning

For race/ off road use only

Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.

Schoenfeld 1514-LS1 Specifications

KEY SPECS
MFG. Part #1514-LS1
BrandSchoenfeld
Header Tube TypeUpswept
Flange StyleStandard
Primary Tube Diameter1-3/4"
Material TypeSteel
ColorBlack
Weld-UpNo
Collector Diameter3-1/2 Inch
FinishPainted
Hardware IncludedYes
Gasket(s) IncludedYes
GENERAL
Sold in QuantityPair
Collector Length8"

Fitment

  • GM LM4

  • GM LM7

  • GM LQ9

  • GM LM7

  • GM LQ9

  • GM LM7

  • GM LQ9

  • GM LM7

  • GM LM7

  • GM LM7

  • GM LQ9

  • GM LM7

  • GM LQ9

  • GM LM4

  • GM LM7

  • GM LM7

  • GM LM4

  • GM LM4

  • GM LM4

  • GM LM7

  • GM LM7

  • GM LM7

  • GM LM7

  • GM LM7

  • GM LM7

  • GM LM7
