#9171963

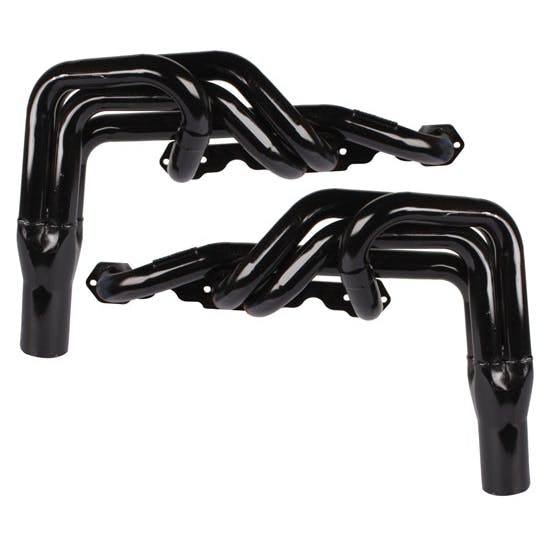

Schoenfeld 196-3 IMCA Stock Car Header
8 Reviews
|
7 Questions
- Engineered to neatly exit inside the frame rail
- Features a 1-3/4" tube diameter and a 3" x 9" collector
- Designed to clear a firewall that is minimum 7" from back of block
See More
$278.95
pair
In Stock
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Chevy Small Block V8, Chassis Header Tube Type, Painted
- Engineered to neatly exit inside the frame rail
- Features a 1-3/4" tube diameter and a 3" x 9" collector
- Designed to clear a firewall that is minimum 7" from back of block
- Has an all-steel construction with a black painted finish for added corrosion resistance

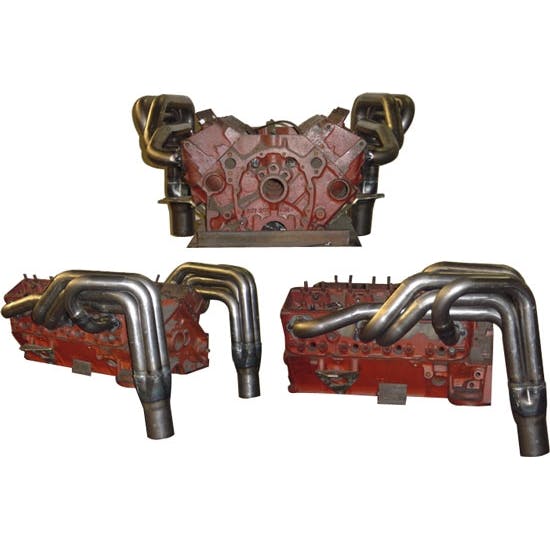

- Will not have clearance issues with oil filter, spark plugs, starter, kick out oil pan, rear mounts, valve cover
See more details
Key Specs
Header Tube Type | Chassis |
Finish | Painted |
Flange Style | Standard |
Primary Tube Diameter | 1-3/4" |
Material Type | Steel |
See more specs
Need To Know
This Product Will Ship Free
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicySchoenfeld 196-3 Details
Schoenfeld 196-3 Details
- No clearance issues with oil filter, spark plugs, starter, kick out oil pan, rear mounts, valve cover
- Clears firewall that is minimum 7" from back of block
- Exits inside frame rail
- 1-3/4" tube diameter
- 3" x 9" collector
- Bolts and gaskets included
Guides & Documents
CARB Warning
For race/ off road use only
CARB Warning
For race/ off road use only
Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.
Schoenfeld 196-3 Specifications
Schoenfeld 196-3 Specifications
KEY SPECS | |
---|---|
MFG. Part # | 196-3 |
Brand | Schoenfeld |
Header Tube Type | Chassis |
Finish | Painted |
Flange Style | Standard |
Primary Tube Diameter | 1-3/4" |
Material Type | Steel |
Color | Black |
Weld-Up | No |
Exhaust Port Shape | Rectangle |
Collector Diameter | 3 Inch |
Hardware Included | Yes |
Gasket(s) Included | Yes |
Collector Attachment Type | Slip fit |
Collector Reducers Included | No |
GENERAL | |
Collector Length | 7.25" |
Flange Thickness | .25" |
Port Height | 1.73" |
Port Width | 1.5" |

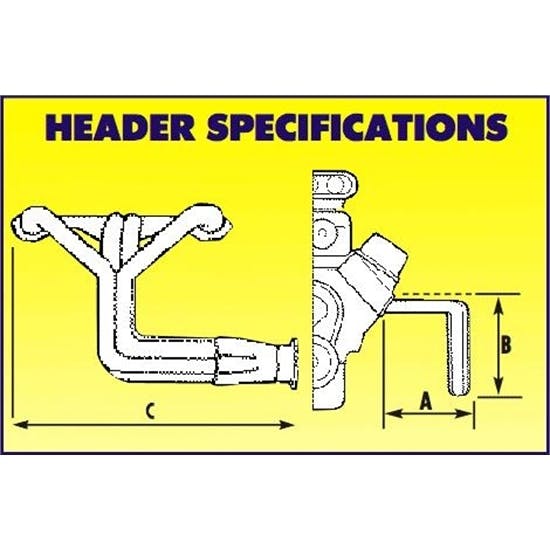

Drivers Side Dimension A | 6.75" |
Drivers Side Dimension B | 10.65" |
Drivers Side Dimension C | 27.88" |
Passenger Side Dimension A | 6.4" |
Passenger Side Dimension B | 10.95" |
Passenger Side Dimension C | 26.63" |
Sold in Quantity | Pair |
