#917186

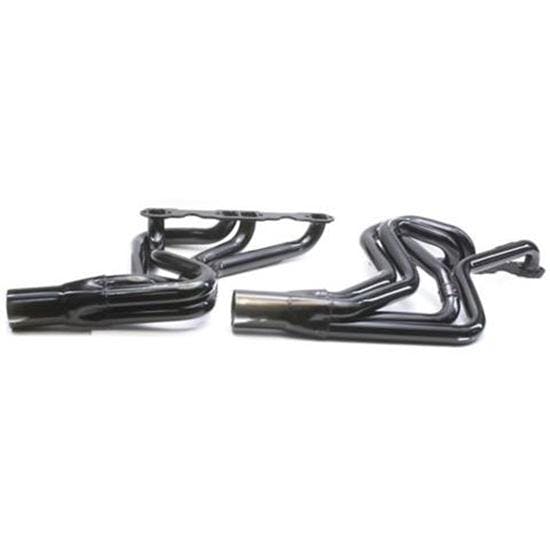

Schoenfeld 186 SB Chevy Street Stock Headers, 1-3/4, 3-1/2 Collector
3 Reviews
|
9 Questions
- Can use solid side or rear mounts
- They are built to fit straight or angle plug heads
- Will clear side and rear engine mounts (motor must be in stock location)
See More
$226.95
pair
In Stock
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Chevy Small Block V8, Chassis Header Tube Type, Steel
- Can use solid side or rear mounts
- They are built to fit straight or angle plug heads
- Will clear side and rear engine mounts (motor must be in stock location)
- Has an all-steel construction with a black painted finish for added corrosion resistance
- Specifically designed for the 1972-1987 Malibu, Monte Carlo, Grand Prix, Cutlass and Regal, but will also fit the 1970-1981 Camaro
See more details
Key Specs
Header Tube Type | Chassis |
Exhaust Port Shape | Square |
Flange Style | Standard |
Primary Tube Diameter | 1-3/4" |
Material Type | Steel |
See more specs
Need To Know
This Product Will Ship Free
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicySchoenfeld 186 Details
Schoenfeld 186 Details
These Small Block Chevy street stock headers are for 1972-1987 Malibu, Monte Carlo, Grand Prix, Cutlass and Regal. Also fits a 1970-1981 Camaro.
- Can use solid side or rear mounts
- Clears side and rear engine mounts (motor must be in stock location)
- Will fit straight or angle plug heads
- Will not clear stock manual clutch linkage ball or air condition box
- Must use short oil filter such as WIX 51069, AC PF24, or FRAM PH30
Item Details
3-1/2" CollectorCharts

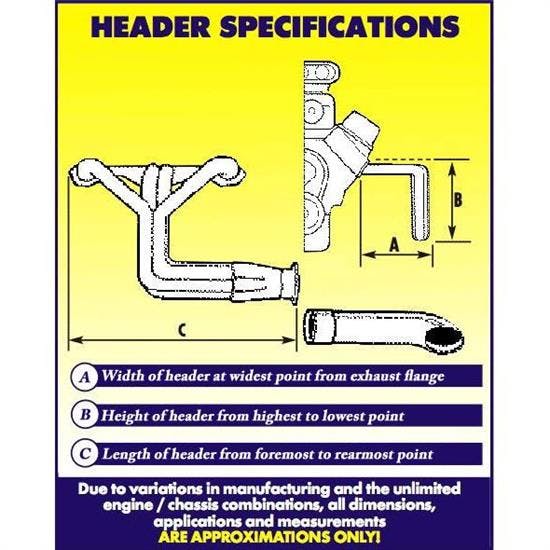

Header Dimension Chart (JPG)
Guides & Documents
CARB Warning
For race/ off road use only
CARB Warning
For race/ off road use only
Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.
Schoenfeld 186 Specifications
Schoenfeld 186 Specifications
KEY SPECS | |
---|---|
MFG. Part # | 186 |
Brand | Schoenfeld |
Header Tube Type | Chassis |
Exhaust Port Shape | Square |
Flange Style | Standard |
Primary Tube Diameter | 1-3/4" |
Material Type | Steel |
Color | Black |
Weld-Up | No |
Collector Diameter | 3-1/2 Inch |
Finish | Painted |
Collector Attachment Type | Slip fit |
Hardware Included | Yes |
Gasket(s) Included | Yes |
Collector Reducers Included | No |
GENERAL | |
Collector Length | 7.75" |
Flange Thickness | .25" |
Port Height | 1.78" |
Port Width | 1.5" |
Drivers Side Dimension A | 4.9" |
Drivers Side Dimension B | 17.25" |
Drivers Side Dimension C | 29" |
Passenger Side Dimension A | 5.75" |
Passenger Side Dimension B | 16.38" |
Passenger Side Dimension C | 32.75" |
Sold in Quantity | Pair |
