Product Summary

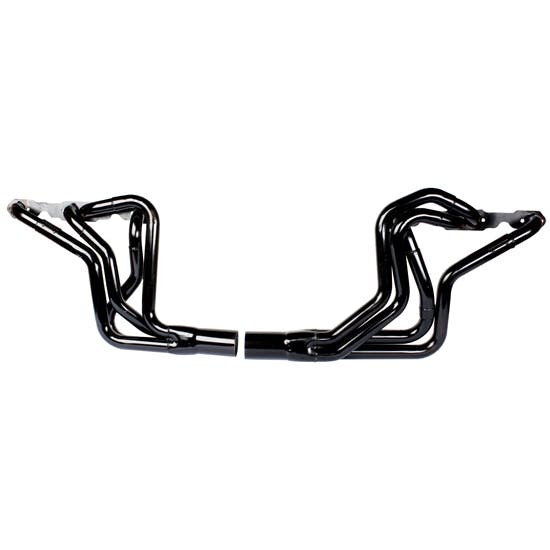

Chevy Small Block V8, Chassis Header Tube Type, Steel

  • Works with straight or angle plug heads
  • Primaries have a 1-1/2 to 1-5/8" diameter and a 8.75" long collector
  • Engineered to clear side and rear engine mounts (motor must be in stock location)
  • Will fit the Monte Carlo (1972-1987) and Malibu, Grand Prix, Cutlass, Regal (1978-1987) and Camaro (1970-1981)
  • These high-velocity headers are engineered to boost torque in small-block Chevy race engines with standard port cylinder heads

Key Specs

Header Tube TypeChassis
FinishTemporary Paint
Flange StyleStandard
Primary Tube Diameter1-1/2 to 1-5/8"
Material TypeSteel

Need To Know

This Product Will Ship Free

Shipping Policies & FAQs

Quick and Easy Returns

Return Policy

Schoenfeld 184V Details

Races are won by the guy who gets off the corner the fastest. Torque is what gets your car moving, and the right header is crucial for generating maximum torque. These high-velocity headers are engineered to boost torque in small-block Chevy race engines with standard port cylinder heads.

Fits Monte Carlo (1972-1987) and Malibu, Grand Prix, Cutlass, Regal (1978-1987) and Camaro (1970-1981).

  • Clears side and rear engine mounts (motor must be in stock location)
  • Fits straight or angle plug heads
  • Will not clear stock manual clutch linkage ball or air condition box
  • Must use short oil filter such as WIX 51069, AC PF24, or FRAM PH30

Item Details

1-1/2"to 1-5/8", 1978-1986 Intermediate

Application

  • Monte Carlo (1972-1987)
  • Malibu, Grand Prix, Cutlass, Regal (1978-1987)
  • Camaro (1970-1981)

Charts

Specs


Guides & Documents

CARB Warning

For race/ off road use only

Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.

Schoenfeld 184V Specifications

KEY SPECS
MFG. Part #184V
BrandSchoenfeld
Header Tube TypeChassis
FinishTemporary Paint
Flange StyleStandard
Primary Tube Diameter1-1/2 to 1-5/8"
Material TypeSteel
ColorBlack
Weld-UpNo
Exhaust Port ShapeRound
Collector Diameter3 Inch
Hardware IncludedYes
Gasket(s) IncludedYes
Collector Attachment TypeSlip fit
Collector Reducers IncludedNo
GENERAL
Speedway Motors Catalog Part #917-184V
Collector Length8.75"
Flange Thickness.25"
Port Height1.48"
Port Width1.41"

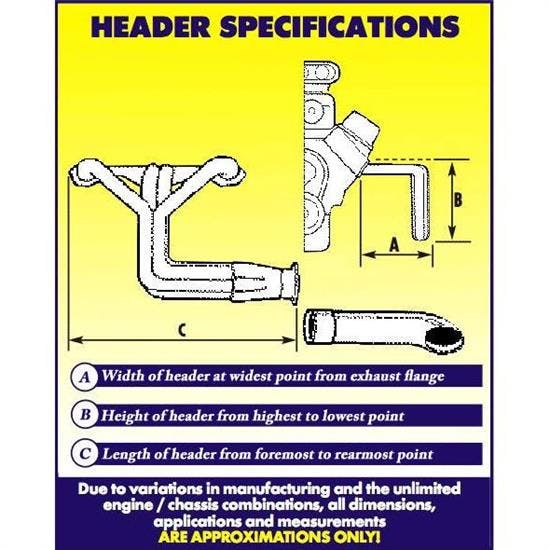

Drivers Side Dimension A5.05"
Drivers Side Dimension B17.05"
Drivers Side Dimension C30.13"
Passenger Side Dimension A5.35"
Passenger Side Dimension B16.3"
Passenger Side Dimension C33.75"
Sold in QuantityPair
