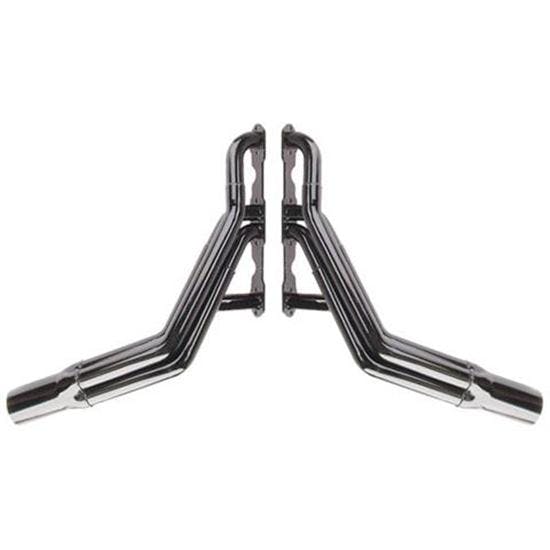

Schoenfeld 155V Stock Clip Small Block Chevy Headers, Standard Port

#917155V

Schoenfeld 155V Stock Clip Small Block Chevy Headers, Standard Port

Name: Schoenfeld 155V Stock Clip Small Block Chevy Headers, Standard Port
Brand: Schoenfeld
SKU: 917155V
Price: 359.95 USD
Availability: InStock
Rating: 4.6 (5 reviews)

5 Reviews

6 Questions

Will work with straight or angle plugs
Designed to exit over frame rail on both sides
Features an all-steel construction with a black painted finish for added corrosion resistance

$359.95

/pair

In Stock

Quantity

Need Help? Call to Order

Add to a list

Select an engine to verify Fitment

Select Engine

Product Summary

Chassis Header Tube Type, Rectangle Exhaust Port Shape

Will work with straight or angle plugs
Designed to exit over frame rail on both sides
Features an all-steel construction with a black painted finish for added corrosion resistance
These small-block Chevy headers are designed to fit most race cars that use stock front clips
A high-velocity stepped-tube design ensures maximum performance, and the Schoenfeld name ensures quality

See more details

Key Specs

MFG. Part #	155V
Header Tube Type	Chassis
Exhaust Port Shape	Rectangle
Flange Style	Standard
Primary Tube Diameter	1-5/8"

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Schoenfeld 155V Details

Your race car will breathe easier and make more power with a good set of headers like these from Schoenfeld. These small-block Chevy headers are designed to fit most race cars that use stock front clips with the engine mounted in the stock location or moved back. The high-velocity stepped-tube design ensures maximum performance, and the Schoenfeld name ensures quality.

Quality construction
Exits over frame rail on both sides
Works with straight or angle plugs

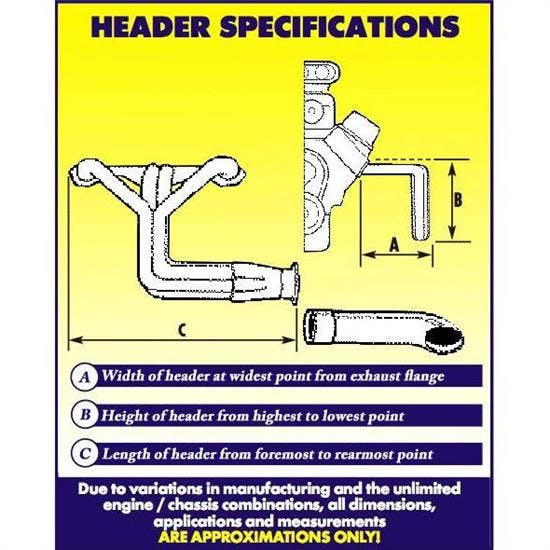

(A=23.882", B=6.750", C=28.125, Has a 3.569" rise from top of flange.)

Application

Fits standard 23° or Vortec-head small-block Chevy V8s (not for spread port heads)

Charts

Header Dimension Chart (JPG)

Specs

Guides & Documents

Choosing the Right Headers

CARB Warning

For race/ off road use only

Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.

CA WARNING:

Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov

CARB warning

Schoenfeld 155V Specifications

KEY SPECS
MFG. Part #	155V
Brand	Schoenfeld
Header Tube Type	Chassis
Exhaust Port Shape	Rectangle
Flange Style	Standard
Primary Tube Diameter	1-5/8"
Material Type	Steel
Color	Black
Weld-Up	No
Collector Diameter	3-1/2 Inch
Finish	Painted
Hardware Included	Yes
Gasket(s) Included	Yes
Collector Reducers Included	No
Collector Attachment Type	Slip fit

GENERAL
Sold in Quantity	Pair
Collector Length	7.75"
Flange Thickness	0.25"
Port Height	1.47"
Port Width	1.42"
Drivers Side Dimension A	23.85"
Drivers Side Dimension B	7.35"
Drivers Side Dimension C	27.5"
Passenger Side Dimension A	23.75"
Passenger Side Dimension B	8.6"
Passenger Side Dimension C	28"

Ratings & Reviews

4.6

5 Reviews

Overall Assessment

Customers have consistently praised the product's adaptability and utility, remarking on its perfect fit on different types of street stocks. Its robust quality and step-up design are well-regarded, contributing mainly to its high-performance reputation. Some customers suggest improvements on the included gaskets, which have occasionally been prone to leakage. The absence of a merge collector for the headers was also noted. Nonetheless, customer satisfaction is evident, with many planning to repurchase the product, thereby confirming its superiority over other brands.

Write A Review

4.6

5 reviews

Filter by Ratings

Sort Reviews

I would buy this again

5.0

6 years ago

Parson42

Michigan

Verified

Fit perfectly on my street stock

Would Recommend

i would purchase this part again.

5.0

7 years ago

Killer

Jonesville mi

Verified

I used this part on my dirt street stock and it fit good.

Would Recommend

I would by these again.

5.0

9 years ago

Rocking Rob

Lima Ohio

Verified

Nice headers

headers surprisingly fit

4.0

14 years ago

88racing

Hagerstown, MD

It was a great product, but not ideal for stock fire wall.I dont recomend using the gaskets that came with the headers because they tend to leak

Would Recommend

They fit and stilled my large worries!

4.0

15 years ago

Russ

Bossier City Louisiana

Verified

I got to put one side on and race with it for the last race of the season. I had to heat and dimple a little bit of frame tubing but I almost expected that and was glad there wasn't more. I never have liked straight collectors though. I really would like a merge collector offered for these type headers. I like the step-up design too.

Would Recommend

Showing 5 of 5 reviews

Questions & Answers

6 Questions • 6 Answers

Sort Questions

Do you make a header to fit an S-10 with SBC V8 conversion.

by David

• 7 years ago

1 answer

View Answer

Wondering if these would fit a 98 s10 with sbc turned facing forward coming out the fender? Thanks

by Justin

• 9 years ago

1 answer

View Answer

Will this product work on a 83 or 84 Monte Carlo with motor in stock location and stock firewall?

by jameo

• 11 years ago

1 answer

View Answer

will these work on 84 s10 w/sbc

by RONG0000

• 12 years ago

1 answer

View Answer

will schoenfeld header part # 917-155v fit on my 86 monte carlo without any modifications

by 808STATE

• 13 years ago

1 answer

View Answer

Will these work on a 1986 chevy 4x4 pickup?

• 14 years ago

1 answer

View Answer

6 of 6 questions shown

Fitment

1959 Chevy 3A

2-Piece Rear Main Chevy 283

1959 Chevy 3B

2-Piece Rear Main Chevy 283

1959 Chevy 3C

2-Piece Rear Main Chevy 283

1959 Chevy 3D

2-Piece Rear Main Chevy 283

1959 Chevy 3E

2-Piece Rear Main Chevy 283

1959 Chevy 3F

2-Piece Rear Main Chevy 283

1959 Chevy 3G

2-Piece Rear Main Chevy 283

1957 Chevy Bel Air

2-Piece Rear Main Chevy 265
2-Piece Rear Main Chevy 283

1958-1967 Chevy Bel Air

2-Piece Rear Main Chevy 283

1968 Chevy Bel Air

Gen 1 L14 Small Block Chevy

1970-1975 Chevy Bel Air

2-Piece Rear Main Chevy 400

1958-1967 Chevy Biscayne

2-Piece Rear Main Chevy 283

1968 Chevy Biscayne

Gen 1 L14 Small Block Chevy

1970-1972 Chevy Biscayne

2-Piece Rear Main Chevy 400

1969-1973 Chevy Blazer

Gen 1 L14 Small Block Chevy

1958-1961 Chevy Brookwood

2-Piece Rear Main Chevy 283

1969 Chevy Brookwood

Gen 1 L14 Small Block Chevy

1970-1972 Chevy Brookwood

2-Piece Rear Main Chevy 400
Gen 1 L14 Small Block Chevy

1960-1967 Chevy C10

2-Piece Rear Main Chevy 283

1968-1973 Chevy C10

Gen 1 L14 Small Block Chevy

1976-1980 Chevy C10

2-Piece Rear Main Chevy 400

1960-1967 Chevy C10 Suburban

2-Piece Rear Main Chevy 283

1968-1973 Chevy C10 Suburban

Gen 1 L14 Small Block Chevy

1960-1967 Chevy C20

2-Piece Rear Main Chevy 283

1968-1973 Chevy C20

Gen 1 L14 Small Block Chevy

1976-1980 Chevy C20

2-Piece Rear Main Chevy 400

1960-1967 Chevy C20 Suburban

2-Piece Rear Main Chevy 283

1968-1973 Chevy C20 Suburban

Gen 1 L14 Small Block Chevy

1976-1980 Chevy C20 Suburban

2-Piece Rear Main Chevy 400

1960-1967 Chevy C30

2-Piece Rear Main Chevy 283

1968-1973 Chevy C30

Gen 1 L14 Small Block Chevy

1976-1979 Chevy C30

2-Piece Rear Main Chevy 400

1967-1968 Chevy Camaro

Gen 1 DZ Small Block Chevy

1969 Chevy Camaro

Gen 1 DZ Small Block Chevy
Gen 1 L14 Small Block Chevy

1970-1973 Chevy Camaro

Gen 1 L14 Small Block Chevy

1980-1981 Chevy Camaro

2-Piece Rear Main Chevy 267

1966-1967 Chevy Caprice

2-Piece Rear Main Chevy 283

1968-1969 Chevy Caprice

Gen 1 L14 Small Block Chevy

1970-1973 Chevy Caprice

2-Piece Rear Main Chevy 400
Gen 1 L14 Small Block Chevy

1974-1976 Chevy Caprice

2-Piece Rear Main Chevy 400

1980-1982 Chevy Caprice

2-Piece Rear Main Chevy 267

1964-1967 Chevy Chevelle

2-Piece Rear Main Chevy 283

1968-1969 Chevy Chevelle

Gen 1 L14 Small Block Chevy

1970-1973 Chevy Chevelle

2-Piece Rear Main Chevy 400
Gen 1 L14 Small Block Chevy

1963-1967 Chevy Chevy II

2-Piece Rear Main Chevy 283

1968 Chevy Chevy II

Gen 1 L14 Small Block Chevy

1957-1961 Chevy Corvette

2-Piece Rear Main Chevy 283

1957 Chevy Del Ray

2-Piece Rear Main Chevy 265
2-Piece Rear Main Chevy 283

1958 Chevy Del Ray

2-Piece Rear Main Chevy 283

1959-1960 Chevy El Camino

2-Piece Rear Main Chevy 283

1964-1967 Chevy El Camino

2-Piece Rear Main Chevy 283

1968-1969 Chevy El Camino

Gen 1 L14 Small Block Chevy

1970-1973 Chevy El Camino

2-Piece Rear Main Chevy 400
Gen 1 L14 Small Block Chevy

1974-1976 Chevy El Camino

2-Piece Rear Main Chevy 400

1979-1982 Chevy El Camino

2-Piece Rear Main Chevy 267

1969 Chevy Estate

Gen 1 L14 Small Block Chevy

1970 Chevy Estate

2-Piece Rear Main Chevy 400
Gen 1 L14 Small Block Chevy

1976 Chevy G10

2-Piece Rear Main Chevy 400

1968-1973 Chevy G10 Van

Gen 1 L14 Small Block Chevy

1975-1980 Chevy G20

2-Piece Rear Main Chevy 400

1967 Chevy G20 Van

2-Piece Rear Main Chevy 283

1968-1973 Chevy G20 Van

Gen 1 L14 Small Block Chevy

1975-1980 Chevy G30

2-Piece Rear Main Chevy 400

1958-1967 Chevy Impala

2-Piece Rear Main Chevy 283

1968-1969 Chevy Impala

Gen 1 L14 Small Block Chevy

1970-1973 Chevy Impala

2-Piece Rear Main Chevy 400
Gen 1 L14 Small Block Chevy

1974-1976 Chevy Impala

2-Piece Rear Main Chevy 400

1980-1982 Chevy Impala

2-Piece Rear Main Chevy 267

1960-1967 Chevy K10

2-Piece Rear Main Chevy 283

1968-1973 Chevy K10

Gen 1 L14 Small Block Chevy

1975-1980 Chevy K10

2-Piece Rear Main Chevy 400

1960-1967 Chevy K10 Suburban

2-Piece Rear Main Chevy 283

1968-1973 Chevy K10 Suburban

Gen 1 L14 Small Block Chevy

1975-1979 Chevy K10 Suburban

2-Piece Rear Main Chevy 400

1960-1967 Chevy K20

2-Piece Rear Main Chevy 283

1968-1973 Chevy K20

Gen 1 L14 Small Block Chevy

1975-1980 Chevy K20

2-Piece Rear Main Chevy 400

1967 Chevy K20 Panel

2-Piece Rear Main Chevy 283

1960-1967 Chevy K20 Suburban

2-Piece Rear Main Chevy 283

1968-1973 Chevy K20 Suburban

Gen 1 L14 Small Block Chevy

1975-1980 Chevy K20 Suburban

2-Piece Rear Main Chevy 400

1968-1973 Chevy K30

Gen 1 L14 Small Block Chevy

1977-1980 Chevy K30

2-Piece Rear Main Chevy 400

1975-1979 Chevy K5 Blazer

2-Piece Rear Main Chevy 400

1959-1961 Chevy Kingswood

2-Piece Rear Main Chevy 283

1969 Chevy Kingswood

Gen 1 L14 Small Block Chevy

1970-1972 Chevy Kingswood

2-Piece Rear Main Chevy 400
Gen 1 L14 Small Block Chevy

1973 Chevy Laguna

2-Piece Rear Main Chevy 400
Gen 1 L14 Small Block Chevy

1974-1976 Chevy Laguna

2-Piece Rear Main Chevy 400

1964-1967 Chevy Malibu

2-Piece Rear Main Chevy 283

1973 Chevy Malibu

2-Piece Rear Main Chevy 400
Gen 1 L14 Small Block Chevy

1974-1976 Chevy Malibu

2-Piece Rear Main Chevy 400

1979-1982 Chevy Malibu

2-Piece Rear Main Chevy 267

1970-1976 Chevy Monte Carlo

2-Piece Rear Main Chevy 400

1979-1982 Chevy Monte Carlo

2-Piece Rear Main Chevy 267

1975-1976 Chevy Monza

2-Piece Rear Main Chevy 262

1957 Chevy Nomad

2-Piece Rear Main Chevy 265
2-Piece Rear Main Chevy 283

1958-1961 Chevy Nomad

2-Piece Rear Main Chevy 283

1969-1973 Chevy Nova

Gen 1 L14 Small Block Chevy

1975 Chevy Nova

2-Piece Rear Main Chevy 262

1957 Chevy One-Fifty Series

2-Piece Rear Main Chevy 265
2-Piece Rear Main Chevy 283

1976 Chevy P30

2-Piece Rear Main Chevy 400

1961-1962 Chevy P30 Series

2-Piece Rear Main Chevy 283

1968-1969 Chevy P30 Van

Gen 1 L14 Small Block Chevy

1973 Chevy P30 Van

Gen 1 L14 Small Block Chevy

1959-1961 Chevy Parkwood

2-Piece Rear Main Chevy 283

1957 Chevy Sedan Delivery

2-Piece Rear Main Chevy 265
2-Piece Rear Main Chevy 283

1958 Chevy Sedan Delivery

2-Piece Rear Main Chevy 283

1947-1959 Chevy Suburban

2-Piece Rear Main Chevy 265

1960-1967 Chevy Suburban

2-Piece Rear Main Chevy 283

1969 Chevy Townsman

Gen 1 L14 Small Block Chevy

1970-1972 Chevy Townsman

2-Piece Rear Main Chevy 400
Gen 1 L14 Small Block Chevy

1955 Chevy Truck

2-Piece Rear Main Chevy 265

1957 Chevy Truck

2-Piece Rear Main Chevy 265
2-Piece Rear Main Chevy 283

1958 Chevy Truck

2-Piece Rear Main Chevy 283

1960 Chevy Truck

2-Piece Rear Main Chevy 283

1955 Chevy Two-Ten Series

2-Piece Rear Main Chevy 265

1957 Chevy Two-Ten Series

2-Piece Rear Main Chevy 265
2-Piece Rear Main Chevy 283

1958 Chevy Yeoman

2-Piece Rear Main Chevy 283

1966 GMC 1000

2-Piece Rear Main Chevy 283

1960 GMC 1000 Series

2-Piece Rear Main Chevy 283

1962-1965 GMC 1000 Series

2-Piece Rear Main Chevy 283

1960-1965 GMC 1500 Series

2-Piece Rear Main Chevy 283

1966 GMC 2500

2-Piece Rear Main Chevy 283

1960-1965 GMC 2500 Series

2-Piece Rear Main Chevy 283

1960-1966 GMC 3000

2-Piece Rear Main Chevy 283

1960-1966 GMC 3500

2-Piece Rear Main Chevy 283

1967 GMC C25/C2500 Pickup

2-Piece Rear Main Chevy 283

1968-1972 GMC C25/C2500 Pickup

Gen 1 L14 Small Block Chevy

1967 GMC C25/C2500 Suburban

2-Piece Rear Main Chevy 283

1968-1972 GMC C25/C2500 Suburban

Gen 1 L14 Small Block Chevy

1967 GMC C35/C3500 Pickup

2-Piece Rear Main Chevy 283

1968-1972 GMC C35/C3500 Pickup

Gen 1 L14 Small Block Chevy

1973-1974 GMC C35/C3500 Pickup

2-Piece Rear Main Chevy 400

1975-1978 GMC K15

2-Piece Rear Main Chevy 400

1975-1978 GMC K15 Suburban

2-Piece Rear Main Chevy 400

1967-1974 GMC K15/K1500 Pickup

2-Piece Rear Main Chevy 400

1967-1974 GMC K15/K1500 Suburban

2-Piece Rear Main Chevy 400

1979-1980 GMC K1500 Suburban

2-Piece Rear Main Chevy 400

1975-1978 GMC K25

2-Piece Rear Main Chevy 400

1975-1978 GMC K25 Suburban

2-Piece Rear Main Chevy 400

1967 GMC K25/K2500 Pickup

2-Piece Rear Main Chevy 283

1968-1972 GMC K25/K2500 Pickup

Gen 1 L14 Small Block Chevy

1973-1974 GMC K25/K2500 Pickup

2-Piece Rear Main Chevy 400

1967 GMC K25/K2500 Suburban

2-Piece Rear Main Chevy 283

1968-1972 GMC K25/K2500 Suburban

Gen 1 L14 Small Block Chevy

1973-1974 GMC K25/K2500 Suburban

2-Piece Rear Main Chevy 400

1979-1986 GMC K2500 Suburban

2-Piece Rear Main Chevy 400

1967 GMC K35/K3500 Pickup

2-Piece Rear Main Chevy 283

1968-1972 GMC K35/K3500 Pickup

Gen 1 L14 Small Block Chevy

1973-1974 GMC K35/K3500 Pickup

2-Piece Rear Main Chevy 400

1966 GMC P1000

2-Piece Rear Main Chevy 283

1973-1977 GMC Sprint

2-Piece Rear Main Chevy 400

1955-1959 GMC Suburban

2-Piece Rear Main Chevy 265
2-Piece Rear Main Chevy 283

1960-1966 GMC Suburban

2-Piece Rear Main Chevy 283

1967 GMC Suburban

Gen 1 L14 Small Block Chevy

1955 GMC Truck

2-Piece Rear Main Chevy 265

1956-1960 GMC Truck

2-Piece Rear Main Chevy 265
2-Piece Rear Main Chevy 283

1965-1966 Studebaker Commander

2-Piece Rear Main Chevy 283

1965-1966 Studebaker Cruiser

2-Piece Rear Main Chevy 283

1965-1966 Studebaker Daytona

2-Piece Rear Main Chevy 283

1966 Studebaker Wagonaire

2-Piece Rear Main Chevy 283
