#917151V
Schoenfeld 151V High Velocity Chassis Headers, 1-5/8 - 1-3/4, 3-1/2
$288.95
pair
In Stock
Order soon, only 2 left in stock!
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Chevy Small Block V8, Chassis Header Tube Type, Steel
See more details
Key Specs
Header Tube Type | Chassis |
Exhaust Port Shape | Square |
Flange Style | Standard |
Primary Tube Diameter | 1-5/8 to 1-3/4" |
Material Type | Steel |
See more specs
Need To Know
This Product Will Ship Free
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicySchoenfeld 151V Details
Schoenfeld 151V Details
Races are won by the guy who gets off the corner best. Torque is what gets that car moving and the right header is one key ingredient. These high velocity header are designed to boost Small Block Chevy torque.
These high velocity chassis headers require a minimum 3-5" engine set back. Fits angle plug or straight plug heads.
Item Details
1-5/8" - 1-3/4", 3-1/2" collectorCharts

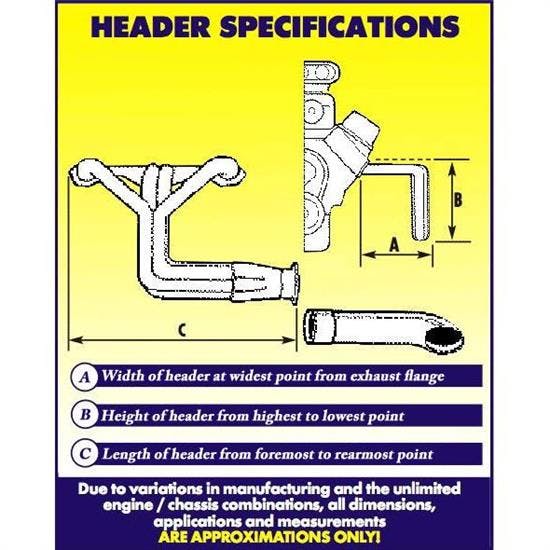

Header Dimension Chart (JPG)
Specs
Guides & Documents
CARB Warning
For race/ off road use only
CARB Warning
For race/ off road use only
Schoenfeld 151V Specifications
Schoenfeld 151V Specifications
KEY SPECS | |
---|---|
MFG. Part # | 151V |
Brand | Schoenfeld |
Header Tube Type | Chassis |
Exhaust Port Shape | Square |
Flange Style | Standard |
Primary Tube Diameter | 1-5/8 to 1-3/4" |
Material Type | Steel |
Color | Black |
Weld-Up | No |
Collector Diameter | 3-1/2 Inch |
Finish | Painted |
Collector Attachment Type | Slip fit |
Hardware Included | Yes |
Gasket(s) Included | Yes |
Collector Reducers Included | No |
GENERAL | |
Collector Length | 7.75" |
Flange Thickness | .25" |
Port Height | 1.44" |
Port Width | 1.47" |
Drivers Side Dimension A | 5.1" |
Drivers Side Dimension B | 15.2" |
Drivers Side Dimension C | 25.25" |
Passenger Side Dimension A | 5.9" |
Passenger Side Dimension B | 15" |
Passenger Side Dimension C | 24.75" |
Sold in Quantity | Pair |
