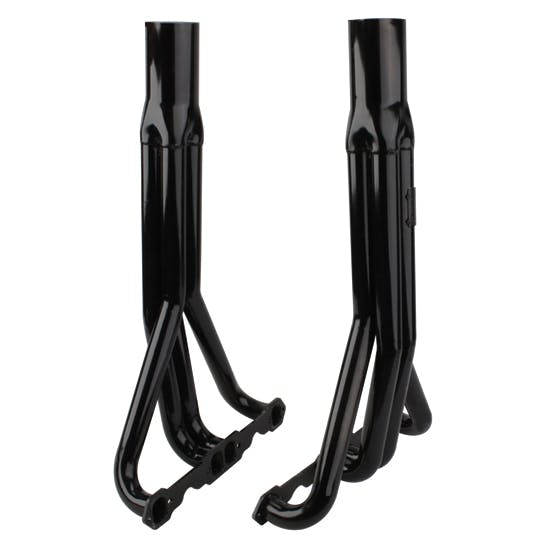

Schoenfeld 1514 Demo Derby Headers, 1-3/4 Primary, 3-1/2 In Collector
4 Reviews
|
3 Questions
- Made from high flow mandrel bent tubing
- The D-port style flange is made from 1/4" solid steel
- These Zoomie type headers have an all steel construction
See More
$288.95
pair
In Stock
Order soon, only 3 left in stock!
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
283, 305, 307, 327, 350, 377, 383, 400, Steel, Black
- Made from high flow mandrel bent tubing
- The D-port style flange is made from 1/4" solid steel
- These Zoomie type headers have an all steel construction
- Designed specifically to fit the Small Block Chevy engine
- Primary tube diameter is 1-3/4" and it goes into a 3-1/2" diameter collector
See more details
Key Specs
Header Tube Type | Upswept |
Exhaust Port Shape | D-port |
Flange Style | Standard |
Primary Tube Diameter | 1-3/4" |
Material Type | Steel |
See more specs
Need To Know
This Product Will Ship Free
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicySchoenfeld 1514 Details
Schoenfeld 1514 Details
- Fits Small Block Chevy
- Standard Port
- Bolts & gaskets included
- High flow mandrel bent tubing
Charts

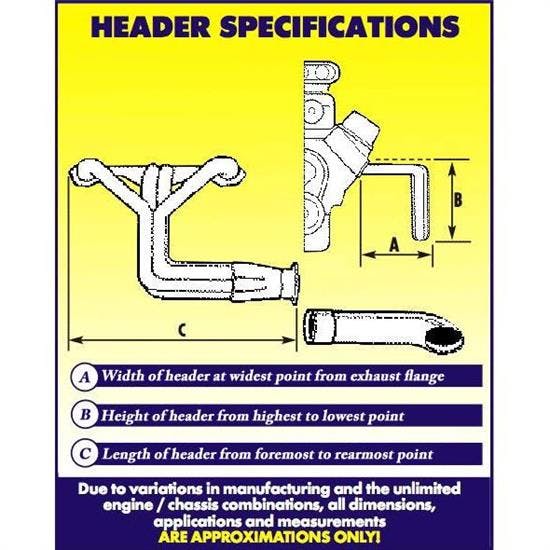

Header Dimension Chart (JPG)
Guides & Documents
CARB Warning
For race/ off road use only
CARB Warning
For race/ off road use only
Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.
Schoenfeld 1514 Specifications
Schoenfeld 1514 Specifications
KEY SPECS | |
---|---|
MFG. Part # | 1514 |
Brand | Schoenfeld |
Header Tube Type | Upswept |
Exhaust Port Shape | D-port |
Flange Style | Standard |
Primary Tube Diameter | 1-3/4" |
Material Type | Steel |
Color | Black |
Weld-Up | No |
Collector Diameter | 3-1/2 Inch |
Finish | Painted |
Collector Attachment Type | Slip fit |
Hardware Included | Yes |
Gasket(s) Included | Yes |
Collector Reducers Included | No |
GENERAL | |
Collector Length | 7.75" |
Flange Thickness | .23" |
Port Height | 1.68" |
Port Width | 1.5" |
Overall Height | 32.25" |
Header Dimension A | 5.00" |
Header Dimension B | 2.50" |
Header Dimension C | 18.25" |
Sold in Quantity | Pair |
