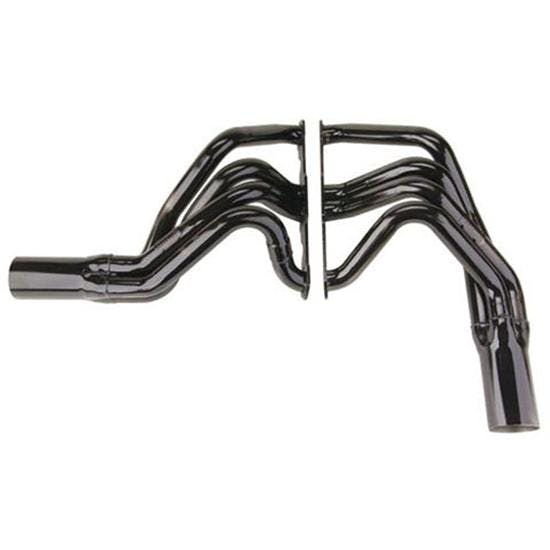

Schoenfeld 1106 Mid Length 1-3/4 Inch Modified Headers

#9171106

Schoenfeld 1106 Mid Length 1-3/4 Inch Modified Headers

Name: Schoenfeld 1106 Mid Length 1-3/4 Inch Modified Headers
Brand: Schoenfeld
SKU: 9171106
Price: 319.95 USD
Availability: LimitedAvailability
Rating: 5 (1 reviews)

1 Review

6 Questions

Specifically designed for the Small Block Chevy V8
Works with MS, Dirtworks, GRT, Harris, Hoffman, Jet, Larry Shaw and Speedway Motors cars
Collectors have a 3-1/2" diameter and are 8" long

$319.95

/pair

In Stock

Order soon, only 1 left in stock!

Quantity

Need Help? Call to Order

Add to a list

Select an engine to verify Fitment

Select Engine

Product Summary

Mid-Length Header Tube Type, Square Exhaust Port Shape

Specifically designed for the Small Block Chevy V8
Works with MS, Dirtworks, GRT, Harris, Hoffman, Jet, Larry Shaw and Speedway Motors cars
Collectors have a 3-1/2" diameter and are 8" long
Features an all steel construction with a black painted finish for enhanced corrosion protection
Flange has a 1/4" thick and has a squared style port

See more details

Key Specs

MFG. Part #	1106
Header Tube Type	Mid-Length
Exhaust Port Shape	Square
Flange Style	Standard
Primary Tube Diameter	1-3/4"

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Schoenfeld 1106 Details

These mid length modified headers are for BMS, Dirtworks, GRT, Harris, Hoffman, Jet, Larry Shaw and Speedway Motors cars. S/B Chevy, 1-3/4" tube and 3-1/2" collectors. Schoenfeld 1106.

Charts

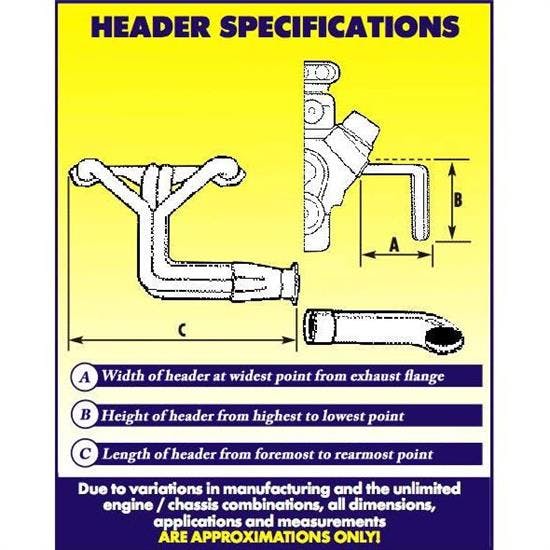

Header Dimension Chart (JPG)

Guides & Documents

Choosing the Right Headers

CARB Warning

For race/ off road use only

Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.

CA WARNING:

Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov

CARB warning

Schoenfeld 1106 Specifications

KEY SPECS
MFG. Part #	1106
Brand	Schoenfeld
Header Tube Type	Mid-Length
Exhaust Port Shape	Square
Flange Style	Standard
Primary Tube Diameter	1-3/4"
Material Type	Steel
Color	Black
Weld-Up	No
Collector Diameter	3-1/2 Inch
Finish	Painted
Hardware Included	Yes
Gasket(s) Included	Yes
Collector Reducers Included	No
Collector Attachment Type	Slip fit

GENERAL
Sold in Quantity	Pair
Collector Length	8"
Flange Thickness	0.25"
Port Height	1.67"
Port Width	1.48"
Drivers Side Dimension A	23"
Drivers Side Dimension B	6.25"
Drivers Side Dimension C	18.5"
Passenger Side Dimension A	15.5"
Passenger Side Dimension B	4.75"
Passenger Side Dimension C	28.5"

Ratings & Reviews

1 Review

Write A Review

1 reviews

Filter by Ratings

Sort Reviews

Perfect fit on my Lightning chassis with 23° heads!

5.0

4 years ago

Ramirez Racing

Hillsboro, Ohio

Verified

These fit my 2017 Lightning modified chassis perfect on a motor with 23° heads, very easy to install and huge 3.5" collector for high flow.

Would Recommend

Showing 1 of 1 reviews

Questions & Answers

6 Questions • 6 Answers

Sort Questions

Can the left side header be bought separate? Like a crash header?

by Racin jason

• 10 years ago

1 answer

View Answer

Will this fit 2006 dirtworks

by crash

• 11 years ago

1 answer

View Answer

will they fit an 03 bms?

by CC42C

• 11 years ago

1 answer

View Answer

DO YOU SELL THE 1105? 1 5/8" TUBE

by Hippy

• 11 years ago

1 answer

View Answer

Will these fit my 2010 shaw modified?

by dhall

• 13 years ago

1 answer

View Answer

Will these fit a 2000 dirt works dw8 modified? I have the low nose bar type of car and the small tubes rub my chassis above the header and my steering rod. Just trying to get my torque down a bit and get better headers.

by Theneelkid

• 13 years ago

1 answer

View Answer

6 of 6 questions shown
