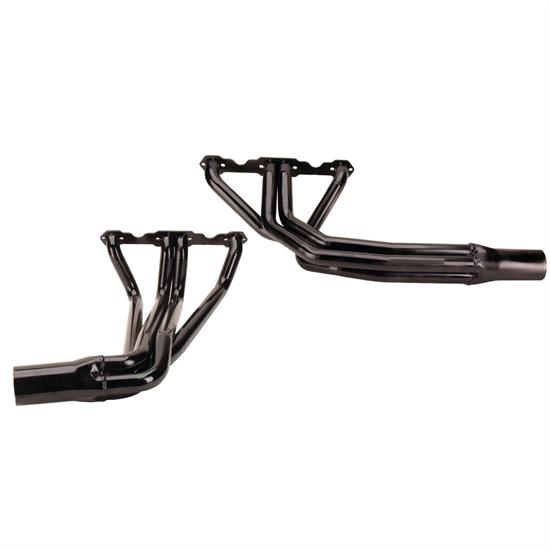

Schoenfeld 1102 Small Block Chevy IMCA Headers, 1-3/4 Long Primary
Schoenfeld 1102 Small Block Chevy IMCA Headers, 1-3/4 Long Primary

Schoenfeld 1102 Small Block Chevy IMCA Headers, 1-3/4 Long Primary

Chevy Small Block V8, Full-length Header Tube Type, Temporary Paint, Standard Flange Style

0 Reviews | 0 Answered Questions
In Stock
Ships FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Limited Qty
Select your vehicle to verify fitment.
Select Vehicle
Schoenfeld 1102 Small Block Chevy IMCA Headers, 1-3/4 Long Primary
Schoenfeld 1102 Small Block Chevy IMCA Headers, 1-3/4 Long Primary
Schoenfeld 1102 Small Block Chevy IMCA Headers, 1-3/4 Long Primary
X
Schoenfeld 1102 Small Block Chevy IMCA Headers, 1-3/4 Long Primary
Zoomed In Image
Part # 9171102
$229.95
pair
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles

Details

Header Tube Type:
Full-length
Finish:
Temporary Paint
Flange Style:
Standard
Primary Tube Diameter:
1-3/4"
Material Type:
Steel
Color:
Black
Weld-Up:
No
Exhaust Port Shape:
Rectangle
MFG. Part #:
1102
Collector Diameter:
3-1/2 Inch
Flange Thickness:
.23"
Port Height:
1.58"
Port Width:
1.45"
Drivers Side Dimension A:
27.50"
Drivers Side Dimension B:
12.50"
Drivers Side Dimension C:
26.00"
Passenger Side Dimension A:
15.50"
Passenger Side Dimension B:
9.00"
Passenger Side Dimension C:
37.50"
Hardware Included:
Yes
Gasket(s) Included:
Yes
Sold in Quantity:
Pair

Info

These Small Block Chevy IMCA headers fit Harris, Hoffman, Hughes and others. They have longer primaries for maximum torque and horsepower. Bolts and gaskets included.

  • Fits Harris, Hoffman, Hughes, and other popular chassis
  • Longer primaries for maximum torque and horsepower
  • 1-3/4 Inch Primary, 3-1/2 Inch Collector - 8" long
  • Bolts and gaskets included

Header Dimension Chart

Notes

The paint on Schoenfeld headers protects them after the manufacturing process and during shipping - it is not designed as a final finish. It is recommended that this protective paint be stripped and a high heat coating/paint designed for use on headers.
