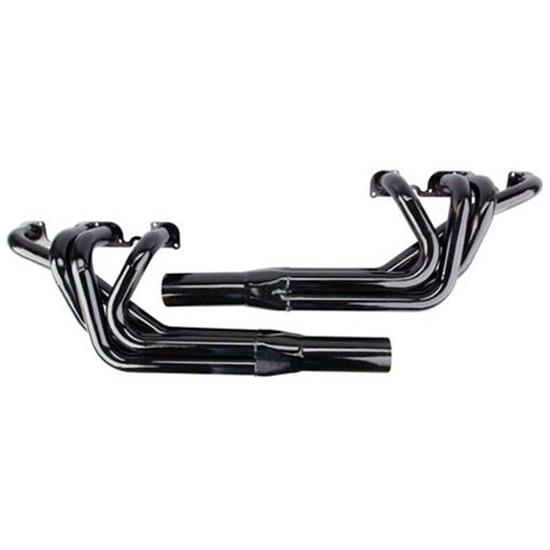

Schoenfeld 1055LVDN Sprint Car Headers, 1-7/8 - 2, 3-1/2, Spread Port
Schoenfeld 1055LVDN Sprint Car Headers, 1-7/8 - 2, 3-1/2, Spread Port

Schoenfeld 1055LVDN Sprint Car Headers, 1-7/8 - 2, 3-1/2, Spread Port

Chevy Small Block V8, Long Tube Header Tube Type, Painted, Spread Port Flange Style, Steel

0 Reviews | 2 Answered Questions
In Stock
Ships FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select your vehicle to verify fitment.
Select Vehicle
Schoenfeld 1055LVDN Sprint Car Headers, 1-7/8 - 2, 3-1/2, Spread Port
Schoenfeld 1055LVDN Sprint Car Headers, 1-7/8 - 2, 3-1/2, Spread Port
Schoenfeld 1055LVDN Sprint Car Headers, 1-7/8 - 2, 3-1/2, Spread Port
Schoenfeld 1055LVDN Sprint Car Headers, 1-7/8 - 2, 3-1/2, Spread Port
X
Schoenfeld 1055LVDN Sprint Car Headers, 1-7/8 - 2, 3-1/2, Spread Port
Schoenfeld 1055LVDN Sprint Car Headers, 1-7/8 - 2, 3-1/2, Spread Port
Zoomed In Image
Part # 9171055LVDN
$299.95
set
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles
  • Will fit standard Chevy, Brodix spread port and now all pro spread port pattern heads
  • Specifically engineered to provide an 8-10hp gain
  • 18-gauge primary tubes measure approximately 32" and have 3-1/2" collectors
  • Flanges are laser cut to clear down nozzles
  • Headers are welded to clear 4" from head to inside tube

Details

Header Tube Type:
Long Tube
Finish:
Painted
Flange Style:
Spread Port
Primary Tube Diameter:
1-7/8 to 2"
Material Type:
Steel
Color:
Black
MFG. Part #:
1055LVDN
Collector Diameter:
3-1/2 Inch
Collector Length:
12.75"
Flange Thickness:
.25"
Port Height:
1.77"
Port Width:
1.84"
Drivers Side Dimension A:
9.85"
Drivers Side Dimension B:
13.30"
Drivers Side Dimension C:
40.13"
Passenger Side Dimension A:
10.80"
Passenger Side Dimension B:
13.15"
Passenger Side Dimension C:
40.38"
Hardware Included:
Yes
Gasket(s) Included:
Yes
Sold in Quantity:
Pair

Info

Over 200 degrees of bends removed for increased flow and 8-10 hp increase. Fits standard Chevy, Brodix spread port and now all pro spread port pattern heads. Laser cut flanges to clear down nozzles. Headers welded to clear 4" from head to inside tube. Approximately 32" 18-gauge primary tubes and 3-1/2" collectors. Comes with bolts and gaskets.

Header Dimension Chart

Notes

The paint on Schoenfeld headers protects them after the manufacturing process and during shipping - it is not designed as a final finish. It is recommended that this protective paint be stripped and a high heat coating/paint designed for use on headers.

Important Messages:

  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
Some parts are not legal for use in California or other states with similar laws/regulations
