Product Summary

262, 267, 302, 305, 307, 327, 350, 400

  • Features a bushed/floating pin style
  • Has a single rib cap design for added strength and bearing support
  • Includes a lightweight I-Beam design for increased strength and quicker RPMs
  • Comes with durable ARP Wave-Loc Bolts
  • Specially designed for Small Block Chevy applications

Key Specs

MFG. Part #3-ICR6000
Connecting Rod TypeI-Beam
Connecting Rod MaterialForged 4340 Steel
Connecting Rod Length6.000"
Wrist Pin StyleFloating

Need To Know

This Product Will Ship Free

Quick and Easy Returns

Details

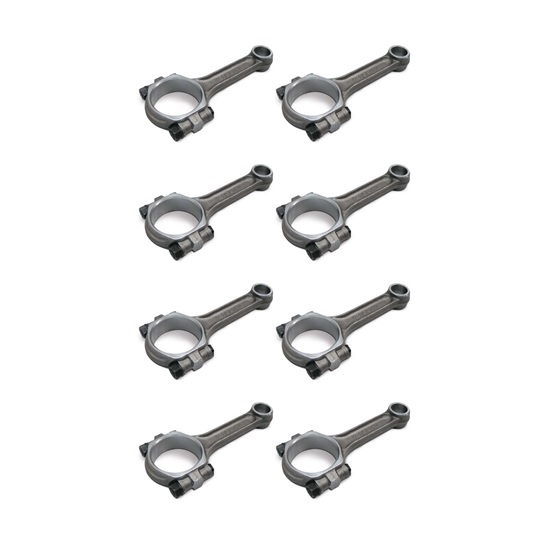

Scat connecting rod with 3/8 inch bolt.  6.0" for Small Block Chevy applications.

Features:

  • Bushed/floating pin style
  • Single rib cap design for added strength and bearing support
  • Lightweight I-Beam design for increased strength and quicker RPMs
  • ARP Wave-Loc Bolts

CARB Warning

For race/ off road use or for use on pre-1966 vehicles.

Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway, or if installed in vehicles model-year 1965 or older; motorcycles model-year 1977 or older; or off-highway recreational vehicles (such as off-road motorcycles and all-terrain vehicles) model-year 1996 and older. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.

Specifications

KEY SPECS
MFG. Part #3-ICR6000
BrandScat
Connecting Rod TypeI-Beam
Connecting Rod MaterialForged 4340 Steel
Connecting Rod Length6.000"
Wrist Pin StyleFloating
GENERAL
Wrist Pin Diameter0.927"
Rod Journal Diameter2.100"
Big End Width0.94"
Connecting Rod Bolt Diameter3/8"
Sold in QuantitySet
Rod Crank End Width0.940"
GTIN Code846091011330
Connecting Rod FinishPolished and shot-peened
Clearanced for StrokerNo
Cap Retention StyleThrough-bolt
Connecting Rod Bolt BrandARP
Connecting Rod Bolt Material8740 Chromoly Steel
Fastener Yield Strength200,000 psi
Connecting Rod Bolt Head StyleHex Head
Big End Bore Diameter2.225"
Weight Matched SetYes
New or RemanufacturedNew
MagnafluxedNo
