#910153570

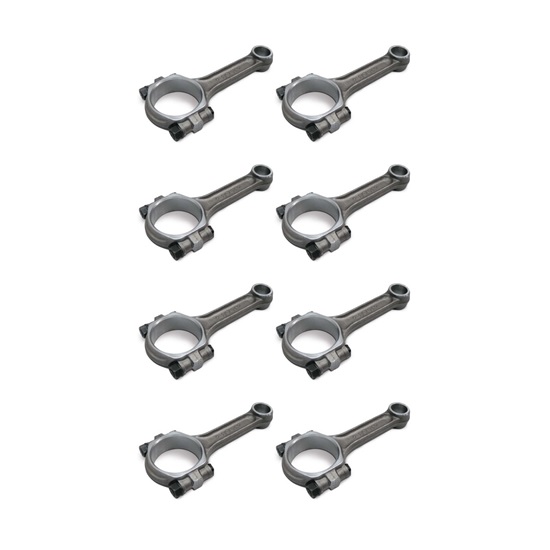

Scat 3-ICR5700 Connecting Rods With 3/8 Inch Bolt, 5.7 Small Block Chevy
1 Review
|
5 Questions
- Features a single rib cap design for added strength and bearing support
- Has a lightweight I-Beam design for increased strength and quicker RPMs
- Rods measure a total of 5.7" in length and have a 3/8" bolt
See More
$347.99
set
In Stock
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
262, 267, 302, 305, 307, 327, 350, 400
- Features a single rib cap design for added strength and bearing support
- Has a lightweight I-Beam design for increased strength and quicker RPMs
- Rods measure a total of 5.7" in length and have a 3/8" bolt
- Bolts are made from 8740 Chromoly steel and have a 200,000 psi strength
- Specifically designed for the small block Chevy engines
See more details
Key Specs
MFG. Part # | 3-ICR5700 |
Connecting Rod Type | I-Beam |
Connecting Rod Material | Forged 4340 Steel |
Connecting Rod Length | 5.700" |
Wrist Pin Style | Floating |
See more specs
Need To Know
This Product Will Ship Free
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicyScat 3-ICR5700 Details
Scat 3-ICR5700 Details
Scat connecting rod with 3/8 inch bolt. 5.7" for Small Block Chevy applications.
Features:
- Press pin or bushed
- Single rib cap design for added strength and bearing support
- Lightweight I-Beam design for increased strength and quicker RPMs
- ARP Wave-Loc Bolts
CARB Warning
For race/ off road use or for use on pre-1966 vehicles.
CARB Warning
For race/ off road use or for use on pre-1966 vehicles.
Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway, or if installed in vehicles model-year 1965 or older; motorcycles model-year 1977 or older; or off-highway recreational vehicles (such as off-road motorcycles and all-terrain vehicles) model-year 1996 and older. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.
Scat 3-ICR5700 Specifications
Scat 3-ICR5700 Specifications
KEY SPECS | |
---|---|
MFG. Part # | 3-ICR5700 |
Brand | Scat |
Connecting Rod Type | I-Beam |
Connecting Rod Material | Forged 4340 Steel |
Connecting Rod Length | 5.700" |
Wrist Pin Style | Floating |
GENERAL | |
Speedway Motors Catalog Part # | 910-153570 |
Wrist Pin Diameter | 0.927" |
Rod Journal Diameter | 2.100" |
Big End Width | 0.94" |
Connecting Rod Bolt Diameter | 3/8" |
Sold in Quantity | Set |
Rod Crank End Width | 0.940" |
Connecting Rod Finish | Polished and shot-peened |
Clearanced for Stroker | No |
Cap Retention Style | Through-bolt |
Connecting Rod Bolt Brand | ARP |
Connecting Rod Bolt Material | 8740 Chromoly Steel |
Fastener Yield Strength | 200,000 psi |
Connecting Rod Bolt Head Style | Hex Head |
Big End Bore Diameter | 2.225" |
Weight Matched Set | Yes |
New or Remanufactured | New |
Magnafluxed | No |
