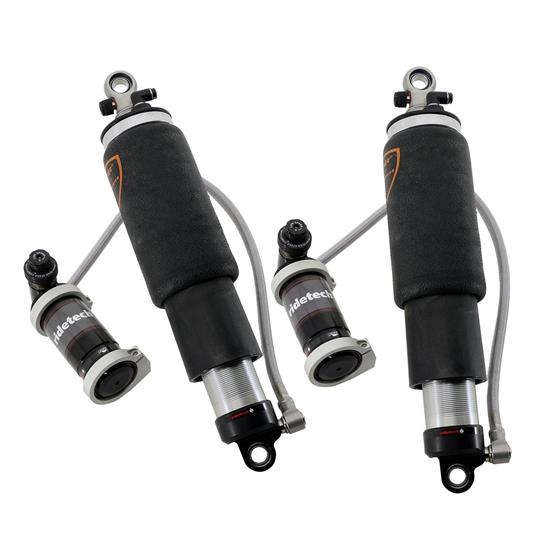

Ridetech TQ Series universal Shockwaves provide high performance handling, exceptional ride quality and incomparable reliability. TQ Series Universal Shockwaves can be custom configured to virtually any lenght or mounting style necessary. The quality and performance are underscored by Ridetech’s world class technical support and a million and one mile warranty. We’re here to help you choose the right Shockwaves for your application. Likewise, we guarantee that they’ll last. TQ Series Shockwaves come with a remote reservoir and feature 24-positions of Rebound, High Speed Compress and Lower Speed Compression adjustment to to help you fine tune the shocks to your driving preferences and vehicle demands. The 7000 Series Shockwaves come utilize a Firestone 4? diameter sleeve air spring which is suitable for most straight axle rear applications.

Recommended Applications:

Solid rear axle: Rear axle weight is less than 1,500lbs.

NOT recommended for IFS installations … not enough load capacity

Diameter and load capacity: 4? diameter 7000 series = 780 lbs. @ 100 psi

Features:

Single rebound adjustment PLUS dual stage high and low-speed compression

Aluminum impact forged construction allows leak free operation

Remote reservoir includes mounting brackets for easy installation

Available in a wide range of stroke lengths, and mounting styles to fit large variety of applications

Monotube design for superior oil control

Easy and precise valve adjustment with 24 clicks

Guides & Documents

Air-Over Shocks Installation Instructions (76824370701)

CA Prop 65

Ridetech 24370701 Specifications

KEY SPECS
MFG. Part #	24370701
Brand	Ridetech

GENERAL
Extended Length	20"
Compressed Length	13.75"
Upper Shock Mount	Bearing
Lower Shock Mount	Bearing
Adjustable Valving	Yes
Gas Charged	Yes
GTIN Code	840123509758
Sold in Quantity	Pair
Shock Type	Mono Tube
