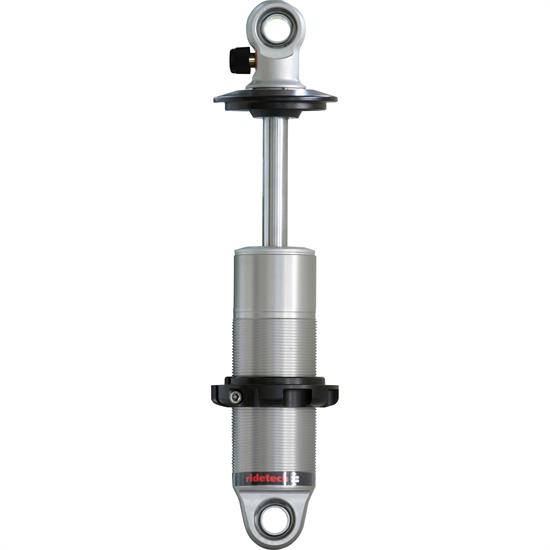

RideTech 24169901 HQ Series Coilover Shock, 6.3" Travel
Universal Fit, Single Adjustable Shock Adjustability, Mono Tube Shock Type, 6.30 Shock Stroke
RideTech HQ Series universal Coil Overs provide high performance handling, exceptional ride quality and incomparable reliability. HQ Series Universal Coil Overs can be custom configured for street rods, customs pickup trucks, pro-street cars and so much more. The quality and performance are underscored by RideTech's world class technical support and a million and one mile warranty. we're here to help you choose the right coil-overs for your application. Likewise, we guarantee that they'll last. HQ Series Coil Overs feature 24-position rebound adjustment to help you fine tune the shocks to your driving preferences and vehicle demands. Universal Coil Overs are available in six lengths and multiple mounting configurations to adapt to nearly any application.
- Monotube gas pressure design is far superior to twin-tube.
- 24-Position Rebound Adjustment
- Exclusive 1,000,001 Mile warranty
- Impact forged aluminum body provides the best combination of strength, light weight and reliable service.
- Larger 1.834" piston significantly larger than twin tube pistons.
- Heavy duty 5/8" chromed shaft.
- Bodies are anodized for long lasting corrosion-resistant appearance.
- Double sealed rod guide with dust cover eliminates oil leakage.
- CNC machined billet aluminum adjusting hardware.
- Unique fine-threaded pinch clamp height adjuster provides easy adjustment.
- Coil spring recommendation for 6.3" stroke shock - 12" Free Length, 2.5" I/D
1- Aluminum monotube shock
1- Upper spring seat
1- Lower adjuster nut
1- Upper spring seat clip
1- set of 5/8”-1/2” bearing spacer kit
1- Delrin Washer set of 2
- This item ships directly from the manufacturer. It may take an additional 5 business days for RideTech to ship this item.
- Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
- This item ships via Ground Shipping only. Expedited and Air shipping options are not available.
