#76824159901
$340.00
/each
Factory Shipped
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
| Position | Rear |
| Shock Adjustability | Single Adjustable |
| Shock Type | Mono Tube |
| Shock Body Material | Aluminum |
| Shock Stroke | 5.20 |
Need help?
855.313.9176Quick and Easy Returns

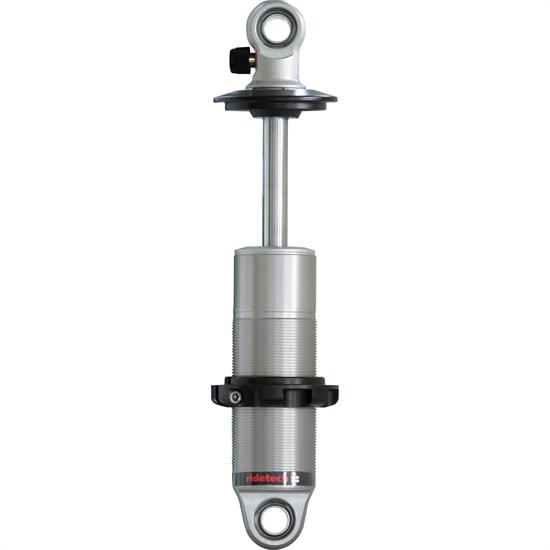

Return PolicyRidetech HQ Series universal Coil Overs provide high performance handling, exceptional ride quality and incomparable reliability. HQ Series Universal Coil Overs can be custom configured for street rods, customs pickup trucks, pro-street cars and so much more. The quality and performance are underscored by Ridetech's world class technical support and a million and one mile warranty. we're here to help you choose the right coil-overs for your application. Likewise, we guarantee that they'll last. HQ Series Coil Overs feature 24-position rebound adjustment to help you fine tune the shocks to your driving preferences and vehicle demands. Universal Coil Overs are available in six lengths and multiple mounting configurations to adapt to nearly any application.
Charts
Guides & Documents
CA WARNING:
Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov
| KEY SPECS | |
|---|---|
| MFG. Part # | 24159901 |
| Brand | Ridetech |
| Position | Rear |
| Shock Adjustability | Single Adjustable |
| Shock Type | Mono Tube |
| Shock Body Material | Aluminum |
| Shock Stroke | 5.20 |
| Upper Shock Mount | Eyelet |
| Lower Shock Mount | Eyelet |
| Height Adjustable | Yes |
| Finish | Anodized |
| GENERAL | |
| Shock Body Type | Threaded |
| Compressed Length Range | 11.00" to 11.99" |
| Compressed Length | 11.23" |
| Extended Length Range | 16.00" to 16.99" |
| Extended Length | 16.43" |
| Spring Diameter | 2.5" |
| Spring Length | 10 Inch |
| Number of Valving Selections | 24 |
| Coilover Kit Included | Yes |
| Coilover Springs Included | No |
| Thread Length | 3.5" |
| Bushing Material | Kevlar |
| Body Diameter | 2.00" |
| Sold in Quantity | Each |
| Adjustable | Yes |
| Hardware Included | Yes |
| Gas Charged | Yes |
| GTIN Code | 840123509550 |
