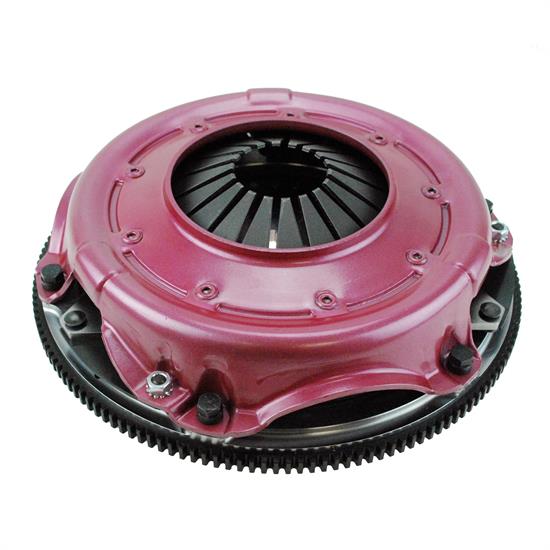

Ram Clutches 900300 Street Stock Clutch, 86-Up GM 10.5 X 1-1/8-10

#605900300

Ram Clutches 900300 Street Stock Clutch, 86-Up GM 10.5 X 1-1/8-10

Name: Ram Clutches 900300 Street Stock Clutch, 86-Up GM 10.5 X 1-1/8-10
Brand: Ram Clutches
SKU: 605900300
Price: 829 USD
Availability: InStock

Write a Review

1 Question

$829.00

/set

Factory Shipped

Garage Sale alternatives: from $700.19

Quantity

Need Help? Call to Order

Add to a list

Select an engine to verify Fitment

Select Engine

Product Summary

1-piece Rear Main Seal Style, External Engine Balance

See more details

Key Specs

MFG. Part #	900300
Input Spline Quantity	10
Input Shaft Diameter	1.125"
Clutch Diameter	10.5"
Friction Material	Organic

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Ram Clutches 900300 Details

RAM Clutches for ‘stock clutch rule’ classes give you unmatched performance and durability. Our 10.5 inch diameter assembly utilizes a billet aluminum pressure ring with a riveted steel heat shield that provides a durable mating surface for the clutch disc. A 3000 lb. pressure spring provides increased static pressure over stock clutches. Used in conjunction with a RAM six paddle solid hub disc, this combination weighs in at just over 15 pounds. If your rules require a full facing or sprung hub disc, the RAM 300 Series organic racing disc provides the best holding power of any organic disc available and adds only about 2 pounds to the total weight of the set. RAM offers a lightweight 17 pound billet steel flywheel for Chevrolet that matches the above components. If you are required to use all steel components, RAM offers a similar 10.5 inch pressure plate with a nodular iron pressure ring. This unit uses the same heavier pressure spring for increased holding power. All RAM street stock clutches are completely rebuildable by the factory.

This is a Complete Lightweight System for 10.5" 1986-Up GM 1-1/8"-10 spline. Features all steel construction, requires the 530 bolt set.

Clutches, Flywheels and release bearings are STRICTLY FACTORY WARRANTY ONLY. Customer must return the unit to RAM for evaluation and inspection.

For a full list of warranty information please see our warranty information here

Warranty Information

Click for details

Speedway Motors cannot facilitate the return of defective Ram Automotive Co. products as they have requested to handle these directly with the consumer. For defective product support and Return Authorization, please contact Ram Automotive Co. at +1 (714)-630-2764.

CA Prop 65

Ram Clutches 900300 Specifications

KEY SPECS
MFG. Part #	900300
Brand	Ram Clutches
Input Spline Quantity	10
Input Shaft Diameter	1.125"
Clutch Diameter	10.5"
Friction Material	Organic
Disc Style	Full face
Hub Style	Unsprung
Flywheel Included	Yes
Tooth Count	153-tooth
Hardware Included	Yes

GENERAL
GTIN Code	809009345651
Notes	Requires 530 flywheel bolt set
Rear Main Seal Style	1-piece
Engine Balance	External
Pressure Plate Style	Diaphragm
Throwout Bearing Included	Yes
Alignment Tool Included	Yes
Pilot Bushing Included	No
Flywheel Material	Billet steel
Counterweight Assist	No
Sold in Quantity	Kit

Ratings & Reviews

Be the first to write a review.

Questions & Answers

1 Question • 1 Answer

Sort Questions

Will this work with a 602 crate motor?

by Racer2

• a year ago

1 answer

View Answer

1 of 1 questions shown

Fitment

1991-1993 Buick Roadmaster

Gen 1 L03 Small Block Chevy

1994 Buick Roadmaster

Gen 1 L05 Small Block Chevy

1995-1996 Buick Roadmaster

Gen 2 LT1 Small Block Chevy

1991-1992 Cadillac Brougham

1-Piece Rear Main 305 LB9

1999-2000 Cadillac Escalade

Vortec L31 Small Block Chevy

1990-1992 Cadillac Fleetwood

Gen 1 L05 Small Block Chevy

1993-1996 Cadillac Fleetwood

Gen 2 LT1 Small Block Chevy

1987 Chevy Blazer

Gen 1 L03 Small Block Chevy
Gen 1 L05 Small Block Chevy

1988-1994 Chevy Blazer

Gen 1 L05 Small Block Chevy

1976-1985 Chevy C10

Gen 1 LG3 Small Block Chevy

1986 Chevy C10

1-Piece Rear Main 305 LG4
Gen 1 L05 Small Block Chevy
Gen 1 LG3 Small Block Chevy

1976-1982 Chevy C10 Suburban

Gen 1 LG3 Small Block Chevy

1983-1985 Chevy C10 Suburban

2-Piece Rear Main 305 LG4

1986 Chevy C10 Suburban

2-Piece Rear Main 305 LG4
Gen 1 L03 Small Block Chevy
Gen 1 L05 Small Block Chevy

1982-1987 Chevy C15

Gen 1 LE9 Small Block Chevy

1988 Chevy C15

Gen 1 L03 Small Block Chevy
Gen 1 L05 Small Block Chevy

1988-1995 Chevy C1500

Gen 1 L03 Small Block Chevy
Gen 1 L05 Small Block Chevy

1996 Chevy C1500

Gen 1 L03 Small Block Chevy
Gen 1 L05 Small Block Chevy
Vortec L30 Small Block Chevy
Vortec L31 Small Block Chevy

1997-1999 Chevy C1500

Gen 1 L05 Small Block Chevy
Vortec L30 Small Block Chevy
Vortec L31 Small Block Chevy

1992-1995 Chevy C1500 Suburban

Gen 1 L05 Small Block Chevy

1996-1999 Chevy C1500 Suburban

Gen 1 L05 Small Block Chevy
Vortec L31 Small Block Chevy

1977-1982 Chevy C20

Gen 1 LG3 Small Block Chevy

1983-1985 Chevy C20

2-Piece Rear Main 305 LG4

1986 Chevy C20

2-Piece Rear Main 305 LG4
Gen 1 L03 Small Block Chevy
Gen 1 L05 Small Block Chevy

1987 Chevy C20

Gen 1 L03 Small Block Chevy
Gen 1 L05 Small Block Chevy

1976-1978 Chevy C20 Suburban

Gen 1 LG3 Small Block Chevy

1979-1985 Chevy C20 Suburban

2-Piece Rear Main 305 LG4

1986 Chevy C20 Suburban

2-Piece Rear Main 305 LG4
Gen 1 L03 Small Block Chevy
Gen 1 L05 Small Block Chevy

1988-1995 Chevy C2500

Gen 1 L03 Small Block Chevy
Gen 1 L05 Small Block Chevy

1996 Chevy C2500

Gen 1 L03 Small Block Chevy
Gen 1 L05 Small Block Chevy
Vortec L30 Small Block Chevy
Vortec L31 Small Block Chevy

1997-1998 Chevy C2500

Gen 1 L05 Small Block Chevy
Vortec L30 Small Block Chevy
Vortec L31 Small Block Chevy

1999 Chevy C2500

Gen 1 L05 Small Block Chevy
Vortec L31 Small Block Chevy

1992-1995 Chevy C2500 Suburban

Gen 1 L05 Small Block Chevy

1996-1999 Chevy C2500 Suburban

Gen 1 L05 Small Block Chevy
Vortec L31 Small Block Chevy

1978-1979 Chevy C30

Gen 1 LG3 Small Block Chevy

1986 Chevy C30

2-Piece Rear Main 305 LG4
Gen 1 L03 Small Block Chevy
Gen 1 L05 Small Block Chevy

1988-1995 Chevy C35

Gen 1 L05 Small Block Chevy

1996-1999 Chevy C35

Gen 1 L05 Small Block Chevy
Vortec L31 Small Block Chevy

1988-1995 Chevy C3500

Gen 1 L05 Small Block Chevy

1996-1999 Chevy C3500

Gen 1 L05 Small Block Chevy
Vortec L31 Small Block Chevy

1967-1968 Chevy Camaro

327 Chevy Small Block V8

1976-1982 Chevy Camaro

Gen 1 LG3 Small Block Chevy

1983-1984 Chevy Camaro

2-Piece Rear Main 305 LG4

1985 Chevy Camaro

2-Piece Rear Main 305 LG4
Gen 1 L69 Small Block Chevy

1986 Chevy Camaro

1-Piece Rear Main 305 LB9
2-Piece Rear Main 305 LG4

1987-1991 Chevy Camaro

1-Piece Rear Main 305 LB9
Gen 1 L98 Small Block Chevy

1992 Chevy Camaro

1-Piece Rear Main 305 LB9
Gen 1 L98 Small Block Chevy
Gen 2 LT1 Small Block Chevy

1993-1995 Chevy Camaro

Gen 2 LT1 Small Block Chevy

1996-1999 Chevy Camaro

Gen 2 LT1 Small Block Chevy
Vortec L31 Small Block Chevy

1977 Chevy Caprice

Gen 1 LG3 Small Block Chevy

1978-1985 Chevy Caprice

2-Piece Rear Main 305 LG4

1986 Chevy Caprice

2-Piece Rear Main 305 LG4
Gen 1 L03 Small Block Chevy
Gen 1 L05 Small Block Chevy

1987-1993 Chevy Caprice

Gen 1 L03 Small Block Chevy
Gen 1 L05 Small Block Chevy

1994-1995 Chevy Caprice

Gen 2 LT1 Small Block Chevy

1996 Chevy Caprice

Gen 2 LT1 Small Block Chevy
Vortec L31 Small Block Chevy

1962-1963 Chevy Corvette

Gen 1 L76 Small Block Chevy

1980 Chevy Corvette

Gen 1 LG3 Small Block Chevy

1984 Chevy Corvette

Gen 1 L83 Small Block Chevy

1986-1991 Chevy Corvette

Gen 1 L98 Small Block Chevy

1992-1995 Chevy Corvette

Gen 2 LT1 Small Block Chevy

1996 Chevy Corvette

Gen 2 LT1 Small Block Chevy
Vortec L31 Small Block Chevy

1976-1982 Chevy El Camino

Gen 1 LG3 Small Block Chevy

1983-1985 Chevy El Camino

2-Piece Rear Main 305 LG4

1986 Chevy El Camino

2-Piece Rear Main 305 LG4
Gen 1 L03 Small Block Chevy

1987 Chevy El Camino

Gen 1 L03 Small Block Chevy

1996-1999 Chevy Express 1500

Gen 1 L05 Small Block Chevy
Vortec L30 Small Block Chevy
Vortec L31 Small Block Chevy

2000-2002 Chevy Express 1500

Vortec L30 Small Block Chevy

1996 Chevy Express 2500

Gen 1 L05 Small Block Chevy
Vortec L30 Small Block Chevy
Vortec L31 Small Block Chevy

1997 Chevy Express 2500

Gen 2 LT1 Small Block Chevy
Vortec L30 Small Block Chevy
Vortec L31 Small Block Chevy

1998-1999 Chevy Express 2500

Gen 1 L05 Small Block Chevy
Vortec L30 Small Block Chevy
Vortec L31 Small Block Chevy

2000-2002 Chevy Express 2500

Vortec L30 Small Block Chevy

1996-1999 Chevy Express 3500

Gen 1 L05 Small Block Chevy
Vortec L31 Small Block Chevy

1977-1982 Chevy G10

Gen 1 LG3 Small Block Chevy

1983-1985 Chevy G10

2-Piece Rear Main 305 LG4

1986 Chevy G10

2-Piece Rear Main 305 LG4
Gen 1 L03 Small Block Chevy
Gen 1 L05 Small Block Chevy

1987-1993 Chevy G10

Gen 1 L03 Small Block Chevy
Gen 1 L05 Small Block Chevy

1994-1995 Chevy G10

Gen 1 L03 Small Block Chevy

1977-1982 Chevy G20

Gen 1 LG3 Small Block Chevy

1983-1985 Chevy G20

2-Piece Rear Main 305 LG4

1986 Chevy G20

2-Piece Rear Main 305 LG4
Gen 1 L03 Small Block Chevy
Gen 1 L05 Small Block Chevy

1987-1995 Chevy G20

Gen 1 L03 Small Block Chevy
Gen 1 L05 Small Block Chevy

1978-1979 Chevy G30

Gen 1 LG3 Small Block Chevy

1982 Chevy G30

Gen 1 LG3 Small Block Chevy

1985 Chevy G30

2-Piece Rear Main 305 LG4

1986-1995 Chevy G30

Gen 1 L05 Small Block Chevy

1996 Chevy G30

Gen 1 L05 Small Block Chevy
Vortec L31 Small Block Chevy

1977-1982 Chevy Impala

Gen 1 LG3 Small Block Chevy

1983-1985 Chevy Impala

2-Piece Rear Main 305 LG4

1994-1995 Chevy Impala

Gen 2 LT1 Small Block Chevy

1996 Chevy Impala

Gen 2 LT1 Small Block Chevy
Vortec L31 Small Block Chevy

1977-1979 Chevy K10

Gen 1 LG3 Small Block Chevy

1981-1982 Chevy K10

Gen 1 LG3 Small Block Chevy

1983-1985 Chevy K10

2-Piece Rear Main 305 LG4

1986 Chevy K10

2-Piece Rear Main 305 LG4
Gen 1 L03 Small Block Chevy
Gen 1 L05 Small Block Chevy

1976-1982 Chevy K10 Suburban

Gen 1 LG3 Small Block Chevy

1983-1985 Chevy K10 Suburban

2-Piece Rear Main 305 LG4

1986 Chevy K10 Suburban

2-Piece Rear Main 305 LG4
Gen 1 L03 Small Block Chevy
Gen 1 L05 Small Block Chevy

1988-1995 Chevy K1500

Gen 1 L03 Small Block Chevy
Gen 1 L05 Small Block Chevy

1996-1999 Chevy K1500

Gen 1 L05 Small Block Chevy
Vortec L30 Small Block Chevy
Vortec L31 Small Block Chevy

1992-1995 Chevy K1500 Suburban

Gen 1 L05 Small Block Chevy

1996-1999 Chevy K1500 Suburban

Gen 1 L05 Small Block Chevy
Vortec L31 Small Block Chevy

1977-1978 Chevy K20

Gen 1 LG3 Small Block Chevy

1980 Chevy K20

Gen 1 LG3 Small Block Chevy

1985 Chevy K20

2-Piece Rear Main 305 LG4

1986 Chevy K20

Gen 1 L05 Small Block Chevy

1977-1978 Chevy K20 Suburban

Gen 1 LG3 Small Block Chevy

1985 Chevy K20 Suburban

2-Piece Rear Main 305 LG4

1986 Chevy K20 Suburban

2-Piece Rear Main 305 LG4
Gen 1 L03 Small Block Chevy
Gen 1 L05 Small Block Chevy

1988-1995 Chevy K2500

Gen 1 L03 Small Block Chevy
Gen 1 L05 Small Block Chevy

1996 Chevy K2500

Gen 1 L05 Small Block Chevy
Vortec L31 Small Block Chevy

1997-1998 Chevy K2500

Gen 1 L05 Small Block Chevy
Vortec L30 Small Block Chevy
Vortec L31 Small Block Chevy

1999 Chevy K2500

Gen 1 L05 Small Block Chevy
Vortec L31 Small Block Chevy

1992-1995 Chevy K2500 Suburban

Gen 1 L05 Small Block Chevy

1996-1999 Chevy K2500 Suburban

Gen 1 L05 Small Block Chevy
Vortec L31 Small Block Chevy

1986 Chevy K30

Gen 1 L05 Small Block Chevy

1988-1995 Chevy K3500

Gen 1 L05 Small Block Chevy

1996-1999 Chevy K3500

Gen 1 L05 Small Block Chevy
Vortec L31 Small Block Chevy

1977-1981 Chevy K5 Blazer

Gen 1 LG3 Small Block Chevy

1982-1985 Chevy K5 Blazer

2-Piece Rear Main 305 LG4

1986 Chevy K5 Blazer

2-Piece Rear Main 305 LG4
Gen 1 L03 Small Block Chevy
Gen 1 L05 Small Block Chevy

1976 Chevy Laguna

Gen 1 LG3 Small Block Chevy

1976-1982 Chevy Malibu

Gen 1 LG3 Small Block Chevy

1983 Chevy Malibu

2-Piece Rear Main 305 LG4

1976-1977 Chevy Monte Carlo

Gen 1 LG3 Small Block Chevy

1978-1985 Chevy Monte Carlo

2-Piece Rear Main 305 LG4

1986 Chevy Monte Carlo

2-Piece Rear Main 305 LG4
Gen 1 L03 Small Block Chevy

1987-1988 Chevy Monte Carlo

Gen 1 L03 Small Block Chevy

1976-1979 Chevy Monza

Gen 1 LG3 Small Block Chevy

1976-1979 Chevy Nova

Gen 1 LG3 Small Block Chevy

1986-1995 Chevy P30

Gen 1 L05 Small Block Chevy

1996-1999 Chevy P30

Gen 1 L05 Small Block Chevy
Vortec L31 Small Block Chevy

1987 Chevy R10

Gen 1 L03 Small Block Chevy
Gen 1 L05 Small Block Chevy

1987 Chevy R10 Suburban

Gen 1 L03 Small Block Chevy
Gen 1 L05 Small Block Chevy

1988 Chevy R10 Suburban

Gen 1 L05 Small Block Chevy

1989-1991 Chevy R1500 Suburban

Gen 1 L05 Small Block Chevy

1987 Chevy R20

Gen 1 L03 Small Block Chevy
Gen 1 L05 Small Block Chevy

1988 Chevy R20

Gen 1 L05 Small Block Chevy

1987-1988 Chevy R20 Suburban

Gen 1 L05 Small Block Chevy

1995 Chevy R25

Gen 1 L05 Small Block Chevy

1996-1999 Chevy R25

Gen 1 L05 Small Block Chevy
Vortec L31 Small Block Chevy

1989 Chevy R2500

Gen 1 L05 Small Block Chevy

1989-1991 Chevy R2500 Suburban

Gen 1 L05 Small Block Chevy

1987-1988 Chevy R30

Gen 1 L05 Small Block Chevy

1989-1991 Chevy R3500

Gen 1 L05 Small Block Chevy

1995 Chevy Silverado

Gen 1 L05 Small Block Chevy

1996-1999 Chevy Silverado

Gen 1 L05 Small Block Chevy
Vortec L31 Small Block Chevy

1987-1994 Chevy Suburban

Gen 1 L05 Small Block Chevy

1995 Chevy Suburban 1500

Gen 1 L05 Small Block Chevy

1996-1999 Chevy Suburban 1500

Gen 1 L05 Small Block Chevy
Vortec L31 Small Block Chevy

1995 Chevy Tahoe

Gen 1 L05 Small Block Chevy

1996-1999 Chevy Tahoe

Gen 1 L05 Small Block Chevy
Vortec L31 Small Block Chevy

1987 Chevy V10

Gen 1 L03 Small Block Chevy
Gen 1 L05 Small Block Chevy

1987-1988 Chevy V10 Suburban

Gen 1 L05 Small Block Chevy

1989-1991 Chevy V1500 Suburban

Gen 1 L05 Small Block Chevy

1987 Chevy V20

Gen 1 L05 Small Block Chevy

1987-1988 Chevy V20 Suburban

Gen 1 L05 Small Block Chevy

1989-1991 Chevy V2500 Suburban

Gen 1 L05 Small Block Chevy

1987-1988 Chevy V30

Gen 1 L05 Small Block Chevy

1989-1991 Chevy V3500

Gen 1 L05 Small Block Chevy

1963-1965 GMC 1000 Series

Gen 1 LE9 Small Block Chevy

1967-1968 GMC C15/C1500 Pickup

327 Chevy Small Block V8

1968 GMC C15/C1500 Suburban

327 Chevy Small Block V8

1998-1999 GMC C1500

Vortec L31 Small Block Chevy

1992-1999 GMC C1500 Suburban

Vortec L31 Small Block Chevy

1963-1966 GMC G1000 Series

327 Chevy Small Block V8

1964-1966 GMC G1500

327 Chevy Small Block V8

1987-1995 GMC G1500

Gen 1 L05 Small Block Chevy

1987-1995 GMC G2500

Gen 1 L05 Small Block Chevy

1987-1994 GMC G3500

Gen 1 L05 Small Block Chevy

1995-1996 GMC G3500

Gen 1 L05 Small Block Chevy
Gen 1 L98 Small Block Chevy

1964-1966 GMC I1000

327 Chevy Small Block V8

1965-1966 GMC I1500

327 Chevy Small Block V8

1965-1966 GMC I2500

327 Chevy Small Block V8

1966 GMC I3500

327 Chevy Small Block V8

1970-1973 GMC Jimmy

Gen 1 LE9 Small Block Chevy

1978-1982 GMC Jimmy

Gen 1 LE9 Small Block Chevy

1986 GMC Jimmy

Gen 1 L05 Small Block Chevy

1987 GMC Jimmy

Gen 1 L03 Small Block Chevy
Gen 1 L05 Small Block Chevy
Gen 1 L98 Small Block Chevy

1988-1990 GMC Jimmy

Gen 1 L05 Small Block Chevy

1966 GMC K1000

327 Chevy Small Block V8

1966 GMC K1000 Pickup

327 Chevy Small Block V8

1966 GMC K15/K1500 Pickup

327 Chevy Small Block V8

1998-1999 GMC K1500

Vortec L31 Small Block Chevy

1981-1986 GMC K1500 Suburban

Gen 1 L05 Small Block Chevy
Gen 1 L98 Small Block Chevy

1992-1999 GMC K1500 Suburban

Vortec L31 Small Block Chevy

1986 GMC K2500

Gen 1 L05 Small Block Chevy

1996-2000 GMC K2500

Vortec L31 Small Block Chevy

1992-1993 GMC K2500 Suburban

Gen 1 L05 Small Block Chevy

1987 GMC R1500 Suburban

Vortec L31 Small Block Chevy

1988-1991 GMC R1500 Suburban

Gen 1 L98 Small Block Chevy

1996-2000 GMC Savana 1500

Vortec L31 Small Block Chevy

1973-1977 GMC Sprint

Gen 1 LM1 Small Block Chevy

1960-1966 GMC Suburban

Gen 1 L69 Small Block Chevy
Gen 1 L76 Small Block Chevy

1967 GMC Suburban

Gen 1 L76 Small Block Chevy

1987-1991 GMC V1500 Suburban

Gen 1 L05 Small Block Chevy
Gen 1 L98 Small Block Chevy

1987 GMC V2500

Gen 1 L05 Small Block Chevy
Gen 1 L98 Small Block Chevy

1987-1991 GMC V2500 Suburban

Gen 1 L05 Small Block Chevy
Gen 1 L98 Small Block Chevy

1992-2011 GMC Yukon

Vortec L31 Small Block Chevy

1975-1977 Oldsmobile Starfire

305 Chevy Small Block V8

1985 Pontiac Firebird

2-Piece Rear Main 305 LG4
Gen 1 L69 Small Block Chevy
