#1750606
QA1 PCYMR10T High Misalign Chromoly Heim Joint Rod Ends 5/8-18 RH Male
- Body is made from heat treated chromoly alloy steel
- Designed to function with up to 64° of misalignment
- Features a PTFE self-lubricating lining
$23.99
/each
In Stock
$25.82
Save $1.83
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Universal Fit, RH Male Thread Type, Chromoly, Natural
- Body is made from heat treated chromoly alloy steel
- Designed to function with up to 64° of misalignment
- Features a PTFE self-lubricating lining
- Finished with a black oxide coated for corrosion resistance
- Heim joint rod ends features a RH male thread type and has a 5/8"-18 thread pitch
Key Specs
| Thread Type | RH Male |
| Rod End Attachment | Male Threads/Eyelet |
| Thread Pitch | 5/8"-18 |
| Material Type | Chromoly |
| Hole Diameter | 0.625" |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicyQA1 PCYMR10T Details
QA1 PCYMR10T Details
- Heat treated chromoly alloy steel body
- Functions with up to 64° of misalignment
- PTFE self-lubricating lining
- Sold individually
Item Details
T = 1-3/4", L = 2-7/8", W = 1-3/8"
Guides & Documents
QA1 PCYMR10T Specifications
QA1 PCYMR10T Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | PCYMR10T |
| Brand | QA1 |
| Thread Type | RH Male |
| Rod End Attachment | Male Threads/Eyelet |
| Thread Pitch | 5/8"-18 |
| Material Type | Chromoly |
| Hole Diameter | 0.625" |
| Rod End Style | PTFE Lined |
| Rod End Construction | 2-piece |
| Grease Fitting | No |
| Finish | Natural |
| Color | Natural |
| Bushing Material | PTFE |
| Jam Nut Included | No |
| GENERAL | |
| Thread Length | 1.75" |
| Rod End Head Diameter | 1.75" |
| Rod End Head Width | 1.375" |
| Rod End Misalign Angle | 64 degrees |
| Heat Treated | Yes |
| Load Capacity | 19394 lbs. |
| GTIN Code | 806990034977 |
| Sold in Quantity | Each |
Ratings & Reviews
5
9 Reviews
Our product consistently receives positive feedback for its perfect fit and high functionality in several applications, including the Bump Steer change on '67 C10s, go-kart front suspensions, and even suspension parts in general. Users happily note the product's exceptional side-to-side movement capabilities and how it prevents rubbing on mounting brackets. Commended for its easy threading and usability in different systems, the product is deemed very practical. In comparing our product to others, customers prefer our non-greasable model unless a need arises. Many customers have used our product on their race cars and their customer's cars, indicating its reliability and quality.
Ratings & Reviews
5
9 Reviews
Our product consistently receives positive feedback for its perfect fit and high functionality in several applications, including the Bump Steer change on '67 C10s, go-kart front suspensions, and even suspension parts in general. Users happily note the product's exceptional side-to-side movement capabilities and how it prevents rubbing on mounting brackets. Commended for its easy threading and usability in different systems, the product is deemed very practical. In comparing our product to others, customers prefer our non-greasable model unless a need arises. Many customers have used our product on their race cars and their customer's cars, indicating its reliability and quality.
5
9 reviews
5
9
4
0
3
0
2
0
1
0
Filter by Ratings
Great part will buy again
5.0
a year ago
RangerDan
ILLINOIS
Verified
I use these heims on custom suspension parts. They hold up great and work very well. I will definitely be buying more of these. Speedway always has what I need in stock with great customer service
Would Recommend
Just what the doctor ordered
5.0
3 years ago
Chris
Portland Oregon
Verified
Was doing a Bump Steer change on my 67 C10, these are perfect fit and work very well without the need for any spacers. If and I mean if one ever fails I will opt for the greaseable ones.
Would Recommend
I am glad to have found this product
5.0
5 years ago
Frank
Las Vegas, NV
Verified
Rear end radius rod. This product gives extra side to side movement with the worry of rubbing on the mounting brackets.
Would Recommend
Would buy again
5.0
6 years ago
135
PA
Verified
No Issues
Very happy with this product
5.0
7 years ago
Brandon
Missouri
Verified
Useing on go kart front suspension
Would Recommend
Would defintetly buy again.
5.0
7 years ago
josh
Nebraska
Verified
Very useful on any suspension part.
Would Recommend
Good piece
5.0
10 years ago
JT17
nd
Verified
Works well on steering.
Would Recommend
Just what i needed
5.0
11 years ago
72JeepTJ
Chicago, IL, USA
Verified
I ordered a pair of these, RH and LH, to remake my rear track bar on my 1/4 ton 4x4. these heims work great thread really easily. Thanks for the great service and fast shipping.
Would Recommend
"A great high misalignment heim"
5.0
13 years ago
DillingerChassis
Utah

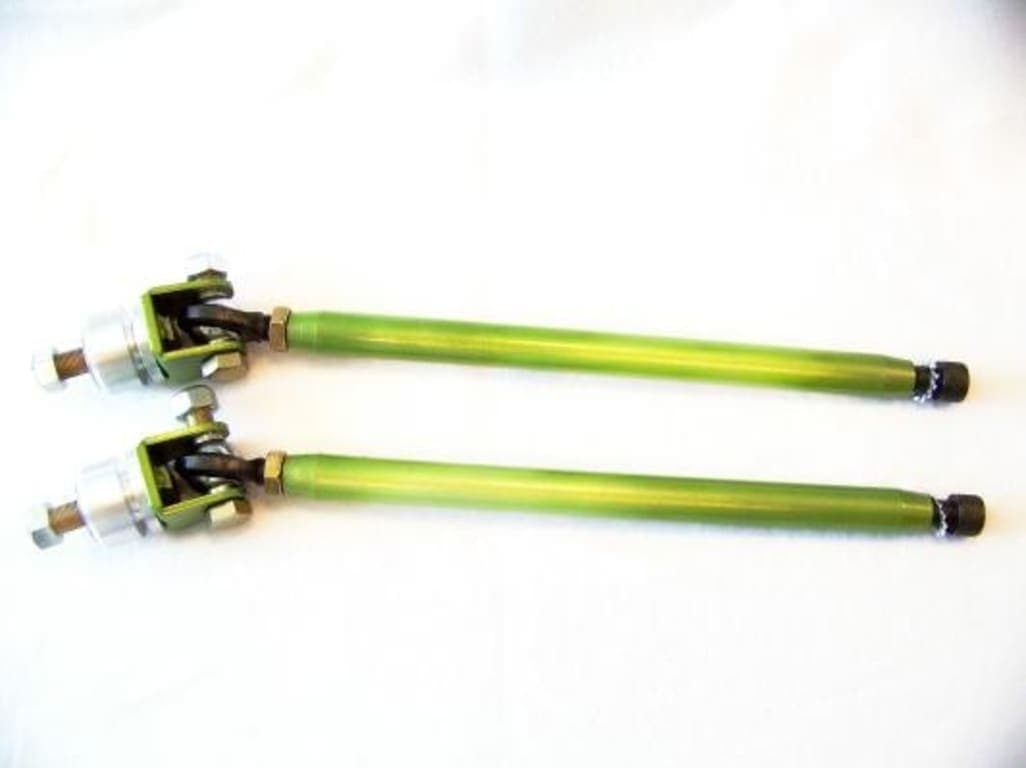

I have used many of these on customer cars as well as my race cars for strut rods and steering linkage parts.
Would Recommend
Showing 9 of 9 reviews
