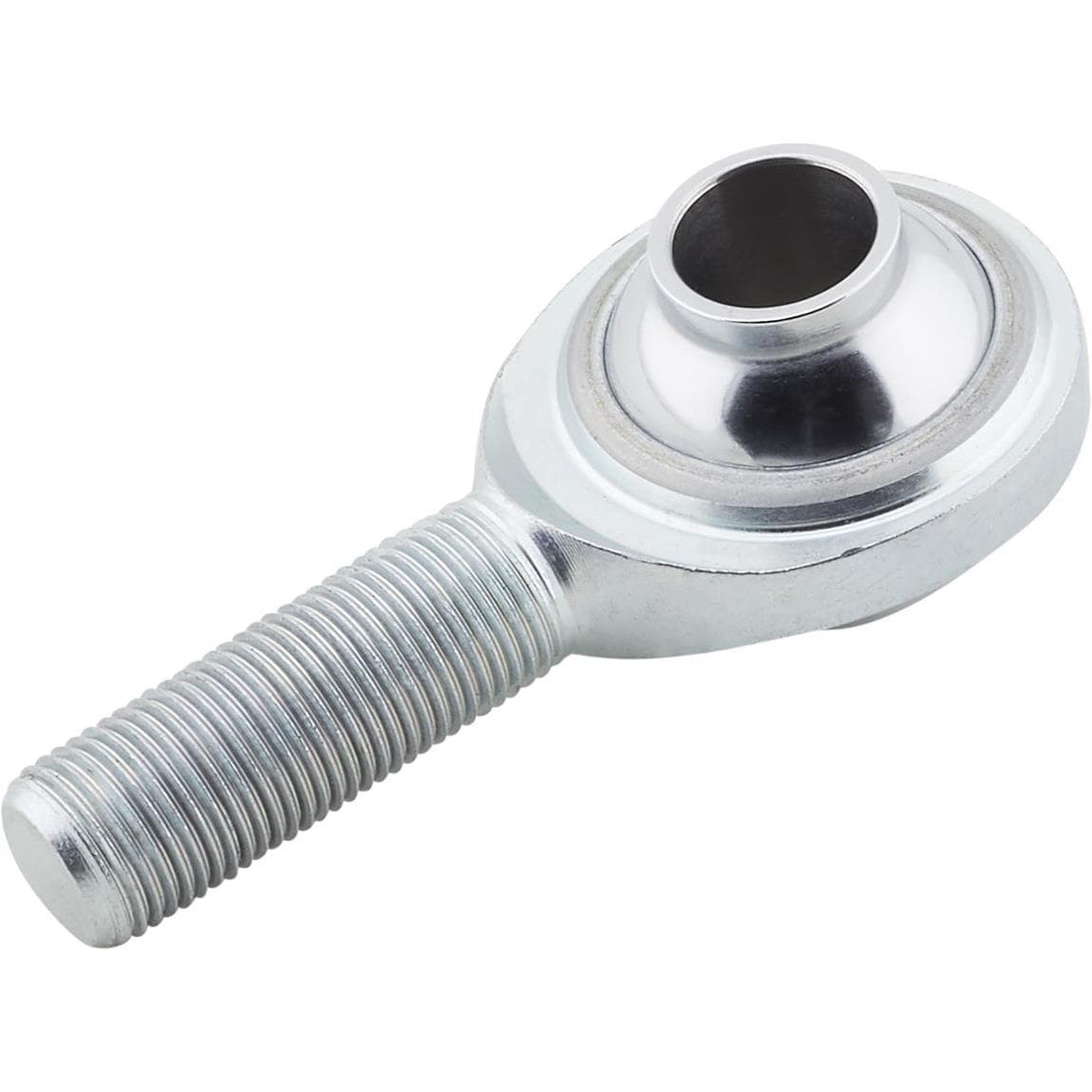

QA1 PCYML10T High Misalign Chromoly Heim Joint Rod Ends 5/8-18 LH Male
- Constructed of heat treated chromoly alloy steel
- Features a PTFE self-lubricating lining
- chromoly alloy steel
$23.99
/each
In Stock
$25.82
Save $1.83
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Universal Fit, LH Male Thread Type, Chromoly, Natural
- Constructed of heat treated chromoly alloy steel
- Features a PTFE self-lubricating lining
- chromoly alloy steel
- Functions with up to 64° of misalignment
- Has a 5/8"-18 RH male thread pitch
Key Specs
| Thread Type | LH Male |
| Rod End Attachment | Male Threads/Eyelet |
| Thread Pitch | 5/8"-18 |
| Material Type | Chromoly |
| Hole Diameter | 0.625" |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicyQA1 PCYML10T Details
QA1 PCYML10T Details
- Heat treated chromoly alloy steel body
- Functions with up to 64° of misalignment
- PTFE self-lubricating lining
- Sold individually
Item Details
T = 1-3/4", L = 2-7/8", W = 1-3/8"
Guides & Documents
QA1 PCYML10T Specifications
QA1 PCYML10T Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | PCYML10T |
| Brand | QA1 |
| Thread Type | LH Male |
| Rod End Attachment | Male Threads/Eyelet |
| Thread Pitch | 5/8"-18 |
| Material Type | Chromoly |
| Hole Diameter | 0.625" |
| Rod End Style | PTFE Lined |
| Rod End Construction | 2-piece |
| Grease Fitting | No |
| Finish | Natural |
| Color | Natural |
| Bushing Material | PTFE |
| Jam Nut Included | No |
| GENERAL | |
| Thread Length | 1.75" |
| Rod End Head Diameter | 1.75" |
| Rod End Head Width | 1.375" |
| Rod End Misalign Angle | 64 degrees |
| Center Hole to End of Shank | 2.875" |
| Heat Treated | Yes |
| Load Capacity | 19394 lbs. |
| GTIN Code | 806990034960 |
| Sold in Quantity | Each |
Ratings & Reviews
5
10 Reviews
Customers praise our Heim Joints for their strength, reliability, and high-quality construction. The product's fitting precision is consistently highlighted, demonstrating its practicality in various adjustments including ones involving hybrid Chevy 4x4 trucks and Ford Sierra/Merkur road racers. Many state the product enhances steering stability, resulting in safer driving. The Heim Joints are also applauded for aiding in the resolution of alignment issues, smoothly fitting into unconventional setups like a 1937 GMC pickup with power steering. The product outperforms competitor offerings with its durability, superior friction-free action, and narrow body design. Customers consistently express their intent to repurchase.
Ratings & Reviews
5
10 Reviews
Customers praise our Heim Joints for their strength, reliability, and high-quality construction. The product's fitting precision is consistently highlighted, demonstrating its practicality in various adjustments including ones involving hybrid Chevy 4x4 trucks and Ford Sierra/Merkur road racers. Many state the product enhances steering stability, resulting in safer driving. The Heim Joints are also applauded for aiding in the resolution of alignment issues, smoothly fitting into unconventional setups like a 1937 GMC pickup with power steering. The product outperforms competitor offerings with its durability, superior friction-free action, and narrow body design. Customers consistently express their intent to repurchase.
5
10 reviews
5
10
4
0
3
0
2
0
1
0
Filter by Ratings
Fixed a difficult problem
5.0
2 years ago
Rad
Prescott AZ
Verified
My hybrid Chevy 4x4 truck had a bad drag link that had become dangerously unstable. I used these Heim Joints to fab up a strong and reliable link by drilling out the tapered steering arm ball joint holes and fastening them with grade 8 bolts. Very strong and safe now and the steering is tight again.
Would Recommend
exactly what was needed for steering
5.0
2 years ago
Jim
Central OH
Verified
This is perfect for the steering on our Ford Sierra/Merkur road racer.The angularity was needed to replace the TRE that had some angle built-in.
Would Recommend
A+
5.0
5 years ago
BIG DAVE
LANCASTER NY
Verified
FIT GREAT
Would Recommend
Would buy again
5.0
6 years ago
135
PA
Verified
No Issues
This product is very strong and well made I would buy it aga
5.0
7 years ago
Grant the plumber
Des Moines Iowa
Verified
I put power steering on my 1937 GMC pickup truck and the pitman arm is a little bit out of square with the rest of it and this fit in there perfectly
QA1 quality
5.0
8 years ago
Derka Derka
BFE Arkansas
Verified
What more can be said . They make good stuff.
Would Recommend
heim joints for misalignment
5.0
8 years ago
Doug
Hamlin NY
Verified
none
Would Recommend
Great Product
5.0
9 years ago
KT
IA
Verified
Durable, smooth action, and narrow body
Would Recommend
Quality part, always use.
5.0
10 years ago
Ford-A
Burton, Ohio
Verified
Cross link, smooth friction free action.
Would Recommend
"A great high misalignment heim"
5.0
13 years ago
DillingerChassis
Utah
I have used many of these on my own race cars and customers cars with no issues.
Would Recommend
Showing 10 of 10 reviews
