QA1 5248 Adjustable Rear Upper Trailing Arm, GM A-Body

All upper tubular and lower boxed trailing arms use polyurethane bushings on both ends, while upper adjustable and lower tubular trailing arms use a spherical ball or rod end assembly on the chassis end to eliminate bushing bind, allowing the suspension to move smoother for better control. This keeps the tires planted firmly on the ground for improved traction and a more predictable, better handling car. For a long-lasting finish, tubular and boxed trailing arms are powder-coated gloss black, while the adjustable arms are zinc plated and anodized.

Boxed Trailing Arms are constructed from 0.120" wall cold rolled steel tubing for maximum strength and flex elimination. These trailing arms have fluted, greasable polyurethane bushings, which are superior to the stock rubber bushings.

Tubular Trailing Arms are constructed from 1-1/4" diameter, 0.120" wall steel tubing which offers increased strength over other designs, but also have the added advantage of lighter weight. These trailing arms have fluted, greasable polyurethane bushings, which are superior to the stock rubber bushings.

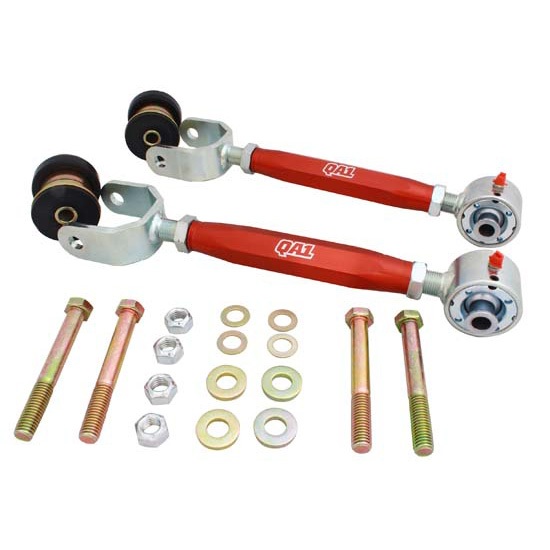

Heavy-Duty Adjustable Trailing Arms allow easy rear suspension adjustments for optimum handling and traction. Simply loosen the jam nuts and adjust the pinion angle without removing the arms from the vehicle. They replace soft OE differential bushings with polyurethane differential bushings, and they use a spherical ball or rod end assembly with UHMW polyethylene bushings on the chassis end to allow the rear suspension to move more freely and eliminate bushing bind. All parts sold in pairs.

BUICK
GS 1970 - 1972
GS 350 1968 - 1969
GS 400 1968 - 1969
GS 455 1970 - 1972
Skylark 1968 - 1972
Special 1968 - 1969
CHEVY
Chevelle 1968 - 1972
El Camino 1968 - 1972
Monte Carlo 1970 - 1972
GMC
Sprint 1971 - 1972
OLDSMOBILE
442 1968 - 1971
Cutlass 1968 - 1972
F85 1968 - 1972
Vista Cruiser 1968 - 1972
PONTIAC
GTO 1968 - 1972
LeMans 1968 - 1972
Tempest 1968 - 1970

Installation Instructions (PDF)
