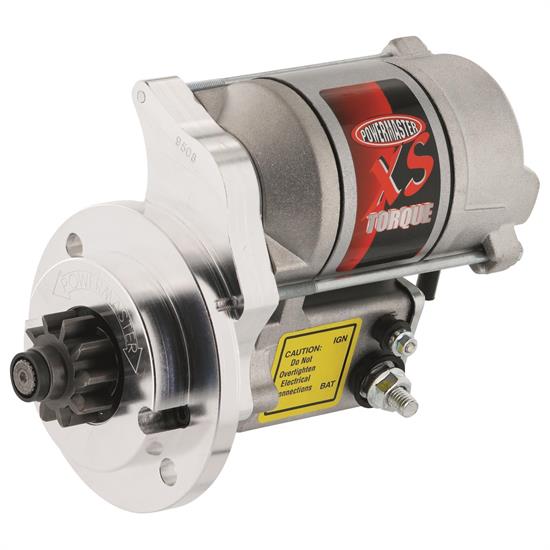

Powermaster 9508 French Block Flathead V8 Starter

-21%

#91067475

Powermaster 9508 French Block Flathead V8 Starter

Name: Powermaster 9508 French Block Flathead V8 Starter
Brand: Powermaster
SKU: 91067475
Price: 282.99 USD
Availability: InStock
Rating: 5 (5 reviews)

5 Reviews

6 Questions

Made from billet aluminum with a natural finish
The small, compact size provides additional clearance
It bolts to original mounting points (bolts NOT included)

Finish:

Natural

Chrome

$282.99

/each

In Stock

$361.25

Save $78.26

Quantity

Need Help? Call to Order

Add to a list

Select an engine to verify Fitment

Select Engine

Product Summary

Automatic and Manual Transmission Type, Natural

Made from billet aluminum with a natural finish
The small, compact size provides additional clearance
It bolts to original mounting points (bolts NOT included)
Has a 4.4:1 gear reduction ratio and cranking power for up to 18:1 compression
Cranks out 200 ft. lbs. of torque and is designed for use with French-made flathead blocks

See more details

Key Specs

MFG. Part #	9508
Starter Size	Mini
Flywheel/Flexplate Tooth Count	166-tooth
Mount Type	Bolt-On
Finish	Natural

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Powermaster 9508 Details

Your original flathead starter is tired from years of service. This Powermaster XS starter is just the ticket for faster starting and increased clearance for French-made flathead blocks. It cranks out 200 ft. lbs. of torque and is designed for use with French-made flathead blocks or aftermarket flywheels.

Small, compact size provides additional clearance
Bolts to original mounting points (bolts NOT included)
Delivers 200 ft/lbs of force
4.4:1 Gear Reduction Ratio
Cranking Power For up to 18:1 Compression

Item Details

For French Blocks

Application

Fits a French made block
DOES NOT fit a USA made Flathead or a USA made Flathead with a stock flywheel.

Charts

Installation Instructions

Specs

Drive Depth: 1.711" (from the mounting flange to the tip of the drive fully extended)
Weight: 8 lbs.

Guides & Documents

Starters and Starter Motors Installation Instructions (91067475)

Installation Instructions (Powermaster)

Warranty (Powermaster)

Technical Information (Powermaster)

Warranty Information

Do not send the unit back to Speedway Motors unless you have called Powermaster and talked to their Tech Department while the unit was still on the vehicle so they could help you troubleshoot the problem.

CA WARNING:

Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov

Powermaster 9508 Specifications

KEY SPECS
MFG. Part #	9508
Brand	Powermaster
Starter Size	Mini
Flywheel/Flexplate Tooth Count	166-tooth
Mount Type	Bolt-On
Finish	Natural

GENERAL
Sold in Quantity	Each
Notes	Made in the USA
GTIN Code	692209007678
Transmission Type	Automatic and Manual
Starter Output (kW/hp)	1.4 kW / 1.8 hp
Starter Output (ft. lbs.)	200 ft.-lbs. torque
Material Type	Billet Aluminum
Color	Natural
Clockable	Yes
Gear Rotation	Standard
Gear Ratio	4.40:1
Compression Ratio	15.0:1
Starter Style	Ford 3-bolt
Weight	8.3 lbs.

Ratings & Reviews

5 Reviews

Overall Assessment

The Powermaster starter is highly praised for its easy installation, practicality, and performance. Many customers recommend it for use in hot rods, with positive feedback on usability and lightweight advantage. It's said to work precisely as it should. Second-time users highlight their preference for this product over competitors. Users also value the product's high quality, indicating repeated purchases due to superior performance. The Powermaster starter has consistently satisfied customers, making it a standout choice in the market.

Write A Review

5 reviews

Filter by Ratings

Sort Reviews

The part was fine, however, I needed a 9807.

5.0

2 years ago

Mike

Sacramento

Verified

Interesting find, my starter was going out on my French flathead. Without measuring the throw of the actuator, I purchased the starter for the French block. Turns out the bell housing required a standard starter (9807) and not this one. So the 9807 worked perfectly. So, don't make the same mistake I did and definitely measure the throw on your existing starter first :-)

Would Recommend

Would buy again yes I will buy again

5.0

4 years ago

Hawk

Verified

Flathead starter

5.0

5 years ago

Edmunds coupe

England

Verified

Put this on my flathead hotrod easy to fit took about ten minutes. This is the second Powermaster starter I've bought from Speedway for my cars. Great product. Always buy direct from Speedway because of their fast shipping to England.

Would Recommend

Starter works as it should

5.0

6 years ago

Bob

Bay City, Michigan

Verified

Use in my hot rod, less weight, works as it should

Would Recommend

Tech line was awesome very helpful starter great thanks

5.0

6 years ago

Tex

Verified

5 stars

Showing 5 of 5 reviews

Questions & Answers

6 Questions • 6 Answers

Sort Questions

6 volt or 12 volt

by TINY

• 3 months ago

1 answer

View Answer

Will this fit straight into the French Built Simca Vedette block without any modifications? regards Vince

by Vinny Vedette

• 10 years ago

1 answer

View Answer

Will this fit on a german flathead? Will this starter fit on a german flathead?

by Pluckydruid

• 11 years ago

1 answer

View Answer

Is there an alternative for Speedway 910-15625 aluminum flywheel? I have a french block an this starter. The recommented Speedway 910-15625 aluminum flywheel is not list any more. Is there an alternative for this flywheel?

by miwi

• 11 years ago

1 answer

View Answer

what size bolts to use for the 1950 ford starter I just order a starter from you . I was wondering what size bolts to use for it ?thank you ..Dan

by Dodge123

• 11 years ago

1 answer

View Answer

please let me know how far the gear travel is on these two different starters, i know there is a difference, but witch one does more way and how much? 91067470 and 91067475. Thanks a lot for helping, Pascal

by Pascal

• 13 years ago

1 answer

View Answer

6 of 6 questions shown

Fitment

1932-1947 Ford 1 Ton Pickup

1932-1947 Ford 1/2 Ton Pickup

1932-1947 Ford 3/4 Ton Pickup

1953 Ford Club

1950-1953 Ford Country Sedan

1950-1953 Ford Country Squire

1952 Ford Courier Sedan Delivery

1950-1953 Ford Crestline

1949-1952 Ford Custom

1952-1953 Ford Customline

1939-1951 Ford Deluxe

1953-1954 Ford F-100

1953 Ford F-250

1953 Ford F-350

1948-1952 Ford F1

1948-1952 Ford F2

1948-1952 Ford F3

1948-1952 Ford F4

1949 Ford Ford

1952-1953 Ford Mainline

1932 Ford Model 18

1942 Ford Model 21 A Deluxe

1933-1934 Ford Model 40

1934 Ford Model 40 A

1933 Ford Model 46

1935 Ford Model 48

1935 Ford Model 50

1936 Ford Model 67

1936 Ford Model 68

1937 Ford Model 74

1937 Ford Model 78

1938 Ford Model 81 A

1938 Ford Model 82 A

1938 Ford Model 85

1932-1934 Ford Model BB

1940 Ford Pickup

1950-1953 Ford Ranch Wagon

1932-1947 Ford Sedan Delivery

1939-1940 Ford Standard

1952-1953 Ford Sunliner

1942-1948 Ford Super Deluxe

1951-1953 Ford Victoria

1952-1953 Mercury Custom

1948-1950 Mercury M-47

1946-1952 Mercury Mercury

1950-1953 Mercury Monterey

1942 Mercury Series 29A
