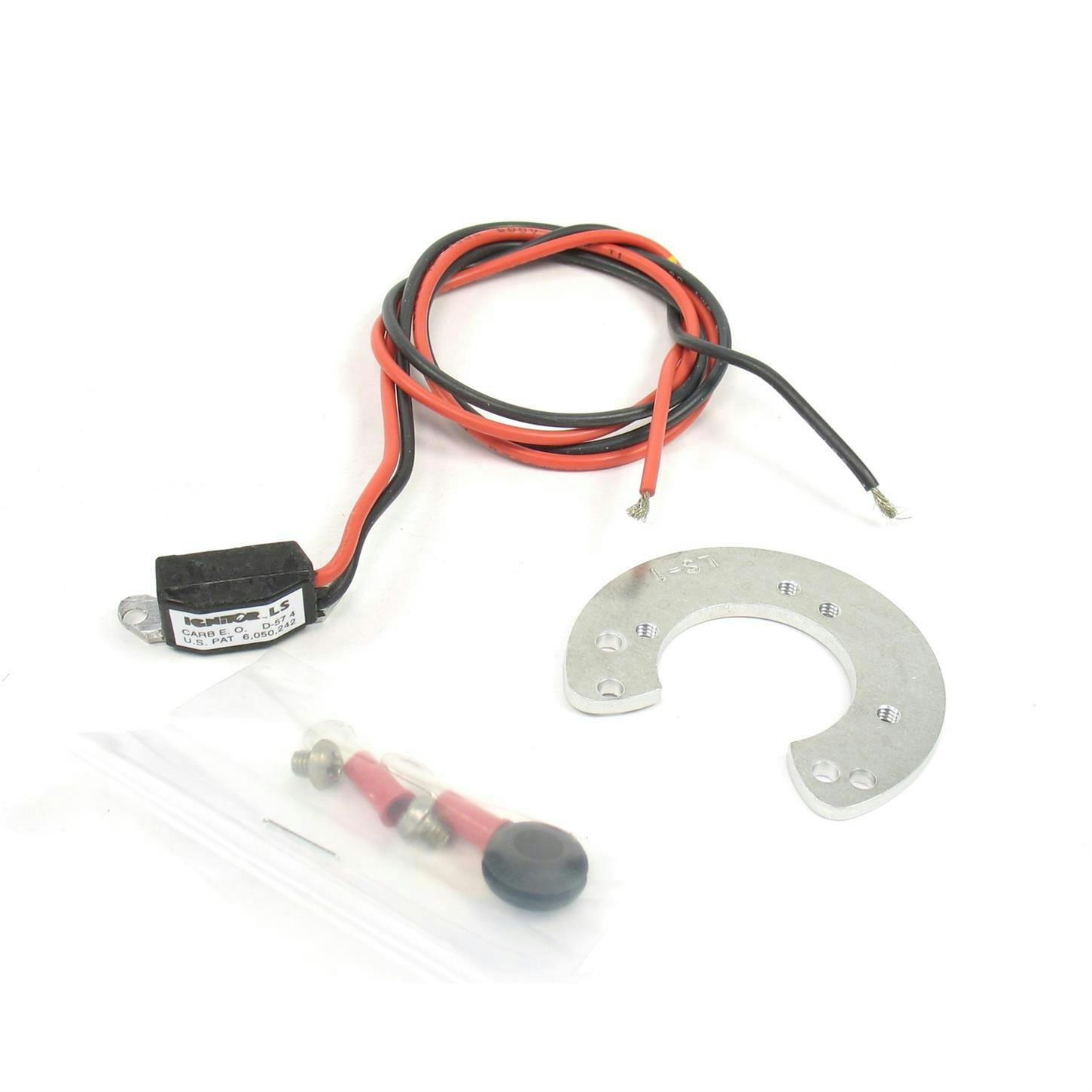

PerTronix MR-LS1 Ignitor Marelli 4 cyl
Delivers twice the voltage to the spark plugs, increasing horsepower, fuel economy, and spark plug life
2:1 improvement over points in current fall time for increased coil output
Rotating cobalt magnets trigger a Hall Effect integrated circuit . ...no points to burn, ...no moving parts to wear out
Epoxy molding makes our module impervious to dirt, oil, grease and moisture
Fits entirely inside the distributor
No "black box to clutter the engine compartment
Stable timing ...no need for any adjustments
Will trigger most multi-spark CD ignitions
Available for 6 and 12-volt negative and positive ground systems
Legal in all 50 states and Canada (C.A.R.B. E.O. #D-57-2)

Have a Question?

Call one of our U.S.-based customer service professionals.

Tech Support - Opens at NaNpm (UTC)

PerTronix MR-LS1 Details

For over thirty years, the Ignitor has proven itself in applications ranging from race cars to tractors. The Ignitor replaces breaker point and troublesome factory electronic ignitions with a dependable, self contained and maintenance free electronic ignition system. The Ignitor has been called the "stealth" ignition because of its quick installation and nearly undetectable presence under your distributor cap.

Features

Operating Voltage: 8-V to 16-V DC
Temperature Range: -50 to 300F
RPM Range: 0 to 15,000 RPM
Can be used with most point-type coils, optimal performance achieved when used with our Flame-Thrower 40,000 volt coil.
Works great in stock point-type distributors as a trigger for multi-spark CD ignitions, eliminating the need for expensive aftermarket distributors.
No complicated wiring makes installation easy.
A solid-state electronic ignition system. "Never change points again!"

PerTronix MR-LS1 Ignitor Marelli 4 cyl
Delivers twice the voltage to the spark plugs, increasing horsepower, fuel economy, and spark plug life
2:1 improvement over points in current fall time for increased coil output
Rotating cobalt magnets trigger a Hall Effect integrated circuit . ...no points to burn, ...no moving parts to wear out
Epoxy molding makes our module impervious to dirt, oil, grease and moisture
Fits entirely inside the distributor
No "black box to clutter the engine compartment
Stable timing ...no need for any adjustments
Will trigger most multi-spark CD ignitions
Available for 6 and 12-volt negative and positive ground systems
Legal in all 50 states and Canada (C.A.R.B. E.O. #D-57-2)

PerTronix MR-LS1 Ignitor Marelli 4 cyl
Delivers twice the voltage to the spark plugs, increasing horsepower, fuel economy, and spark plug life
2:1 improvement over points in current fall time for increased coil output
Rotating cobalt magnets trigger a Hall Effect integrated circuit . ...no points to burn, ...no moving parts to wear out
Epoxy molding makes our module impervious to dirt, oil, grease and moisture
Fits entirely inside the distributor
No "black box to clutter the engine compartment
Stable timing ...no need for any adjustments
Will trigger most multi-spark CD ignitions
Available for 6 and 12-volt negative and positive ground systems
Legal in all 50 states and Canada (C.A.R.B. E.O. #D-57-2)

Application

1974 Alfa-Romeo Spider V4 (Lobe sensor module, Not for use with solid core spark plug wires)
1964-69 Lancia Flavia Coupe V4 (Lobe sensor module, Not for use with solid core spark plug wires)
1965-78 Alfa-Romeo Guilia V4 (Lobe sensor module, Not for use with solid core spark plug wires)
1969-71 Porsche 911, E, S, T V6 (Lobe sensor module, Not for use with solid core spark plug wires)
1969-72 Alfa-Romeo Berlina V4 (Lobe sensor module, Not for use with solid core spark plug wires)
1969-73 Alfa-Romeo GT Veloce V4 (Lobe sensor module, Not for use with solid core spark plug wires)
1969-77 Fiat 125 Berlina, V4 (Lobe sensor module, Not for use with solid core spark plug wires)
1969-79 Alfa-Romeo Spider Veloce V4 (Lobe sensor module, Not for use with solid core spark plug wires)
1971-77 Fiat 124, 125 Special, 127 Berlina V4 (Lobe sensor module, Fit both single point and dual point distributors, Not for use with solid core spark plug wires)
1972-77 Fiat 132 Berlina, Berlina Special, GL V4 (Lobe sensor module, Not for use with solid core spark plug wires)
1972-79 Alfa-Romeo Alfetta V4 (Lobe sensor module, Not for use with solid core spark plug wires)
1973-77 Fiat 131 V4 (Lobe sensor module, Not for use with solid core spark plug wires)
1975-77 Fiat 132 GL, GLS V4 (Lobe sensor module, Not for use with solid core spark plug wires)
1975-78 Fiat 241 T, 242 V4 (Lobe sensor module, Not for use with solid core spark plug wires)
1976-78 Fiat 238B, Bi, 850 T V4 (Lobe sensor module, Not for use with solid core spark plug wires)

Charts

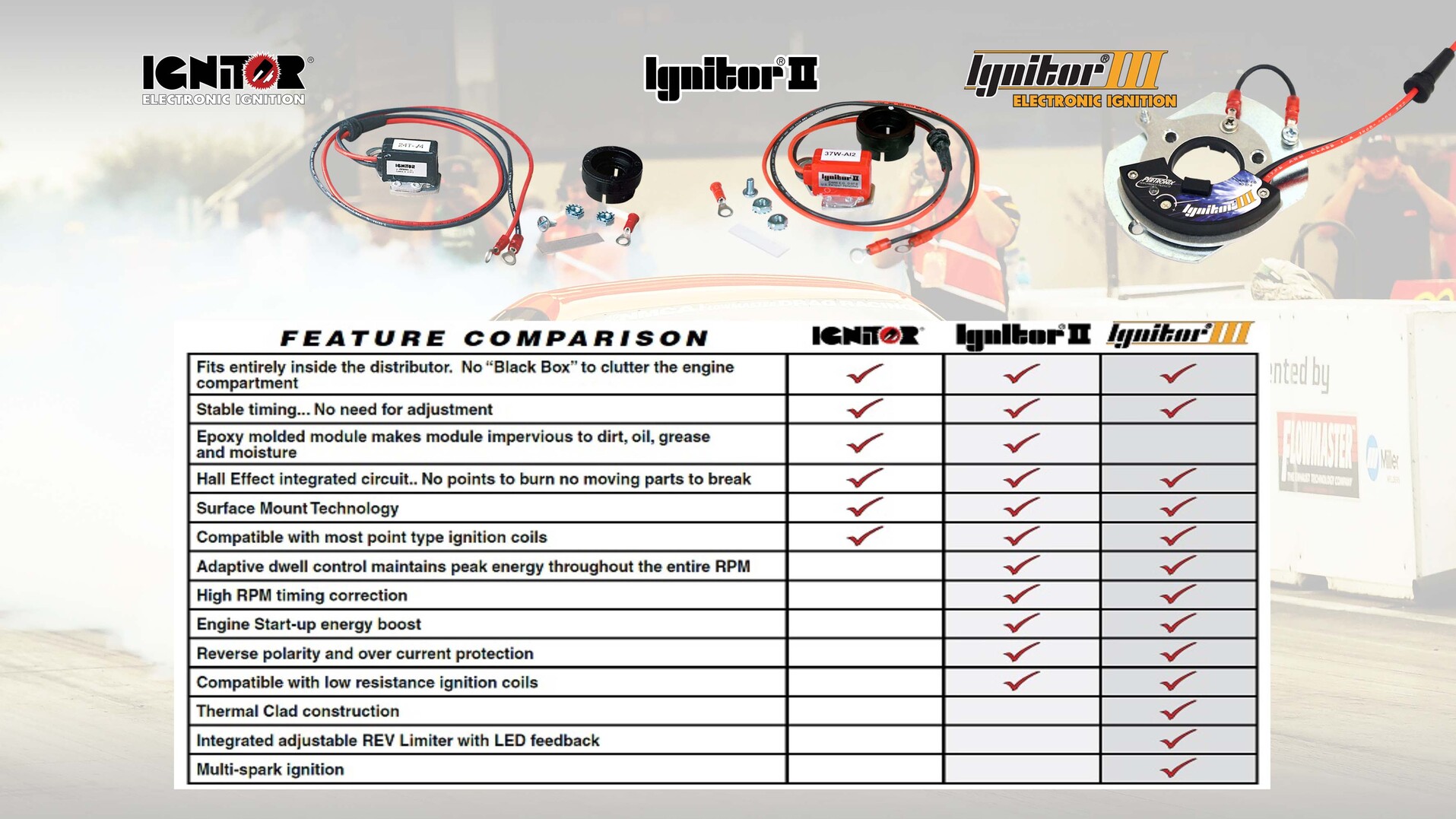

Pertronix Ignitor I/II/III Comparison Chart (JPG)

Guides & Documents

Electronic Ignition Conversion Kits Technical Information (447MRLS1)

Electronic Ignition Conversion Kits Installation Instructions (447MRLS1)

Electronic Ignition Conversion Kits Technical Information (447MRLS1)

Warranty (PerTronix)

Warranty Information

Click for details

Speedway Motors cannot facilitate the return of defective PerTronix products as they have requested to handle these directly with the consumer. Purchasers of a product who wish to make a warranty claim based upon an alleged product defect should email the

CA Prop 65

CARB warning

PerTronix MR-LS1 Specifications

D-57-22

KEY SPECS
MFG. Part #	MR-LS1
Brand	PerTronix
CARB EO#

GENERAL
GTIN Code	694342518431
