Product Summary

Socket / Female Cap Type, Mechanical Advance Type

    See more details

    Key Specs

    MFG. Part #D7190509
    BrandPerTronix
    Cap TypeSocket / Female
    Advance TypeMechanical
    See more specs

    Need To Know

    Quick and Easy Returns

    Return Policy

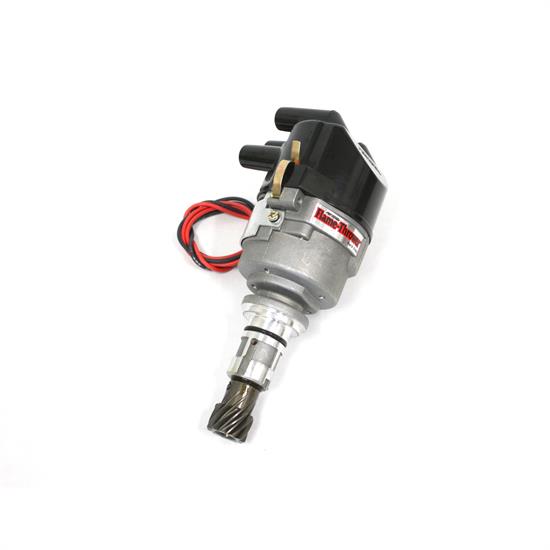

    PerTronix D7190509 Details

    Cast distributor for Ford X-Flow with Ignitor III electronics. Non vacuum advance with side exit cap. English Ford & Lotus Twin Cam

    The Ignitor III ignition module is designed for the serious performance enthusiast who demands serious power. This module develops 5 times more spark energy then typical points system. featuring multiple sparks throughout the entire RPM range and a self adjustable digital rev limiter it provides ignition box performance without the box. For optimum performance we suggest a Flame-Thrower III or HC coil.

    • PerTronix D7190509 Flame-Thrower Electronic Distributor Cast Ford X-Flow 4 cyl Plug and Play with Ignitor III Technology Non Vacuum Side Exit Cap
    • PerTronix D7190509 Flame-Thrower Electronic Distributor Cast Ford X-Flow 4 cyl Plug and Play with Ignitor III Technology Non Vacuum Side Exit Cap

    Charts

    Warranty Information

    Click for details

    Speedway Motors cannot facilitate the return of defective PerTronix products as they have requested to handle these directly with the consumer. Purchasers of a product who wish to make a warranty claim based upon an alleged product defect should email the

    CARB Warning

    For race/ off road use or for use on pre-1966 vehicles.

    Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway, or if installed in vehicles model-year 1965 or older; motorcycles model-year 1977 or older; or off-highway recreational vehicles (such as off-road motorcycles and all-terrain vehicles) model-year 1996 and older. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.

    PerTronix D7190509 Specifications

    KEY SPECS
    MFG. Part #D7190509
    BrandPerTronix
    Cap TypeSocket / Female
    Advance TypeMechanical
    GENERAL
    External Ignition Box RequiredNo
    Cap Terminal StyleSocket / Female
    Trigger StyleMagnetic
    Hall EffectNo
    Sync SignalNo
    Trigger SensorsSingle
    Gear MaterialSteel
    Gear RotationStandard
    Distributor Cap ColorBlack
    Ignition Box RequiredNo
    Slip CollarNo
    Housing MaterialCast Aluminum
    Housing FinishNatural
    Marine UseNo
    Sold in QuantityEach
    NotesIncludes an Ignitor III ignition module.Replaces Lucas 45D style distributor for English Ford and Lotus Twin-Cam engines. Not for use with solid care spark plug wires. Models equipped with 12 V negative ground electrical system.
    GTIN Code694342541316
