Product Summary

Socket / Female Cap Type, Mechanical Advance Type, Red

    See more details

    Key Specs

    MFG. Part #D7151801
    BrandPerTronix
    Cap TypeSocket / Female
    Advance TypeMechanical
    See more specs

    Need To Know

    Quick and Easy Returns

    Return Policy

    PerTronix D7151801 Details

    Plug n play billet distributors are designed for maximum ignition performance and easy installation all at a price that you can afford. Replace your outdated points or electronic distributor with this performance proven distributor and which features the patented Ignitor III electronics and a CNC machined 6061 T-6 polished billet housing.

    Features
    • Multiple sparks throughout the entire RPM range
    • Integrated digital rev limiter with LED feedback for precise RPM
    • Memory safe function store settings eliminating unintended changes to rev limit
    • Adaptive dwell maintains peak energy throughout the entire RPM range, reducing misfires while improving engine performance
    • Synchronized peak current and park timing reduces heat build up
    • Peak current level is reached just prior to spark for maximum energy without heat build up, increasing coil performance and module reliability
    • Adjusts spark timing at higher RPMs to compensate for the inherent electronic delay
    • Senses startup and increases energy for easier quicker starting
    • Thermal clad surface mount construction for superior reliability
    • Built-in reverse polarity and over current protection shuts down the system, preventing component damage
    • Not compatible with C D or Multi-Spark boxes.
    • Precision CNC machined billet housings are polished to a high luster
    • Tempered distributor shafts have low torsion displacement for accurate timing and longer life
    • Upper ball bearing and extra long oil impregnated bronze lower bushing work together to reduce friction and high RPM vibration.
    • High strength cap with male or female brass terminals and premium rotor with brass contatcs
    • Adjustable mechanical advance with proprietary limiting functions permits multiple settings. Distributors are factory set with a performance advance curve and are provided with additional springs for custom advance curves.
    • Legal in all 50 states and Canada (C.A.R.B. E.O. #D-57-12). Note: Non vacuum advance distributors do not have an E.O. number and are not legal for sale or use on pollution controlled motor vehicles.
    • Warranty: 30 months electronics / Limited 1 year mechanicalFlame-Thrower billet distributors are frequently used in tight engine compartments due to their Plug n Play design and relatively small size. Although our distributors fit their intended engine application, each vehicle application must be evaluated independently to insure adequate space for distributor fitment as well as air cleaner and hood clearance.

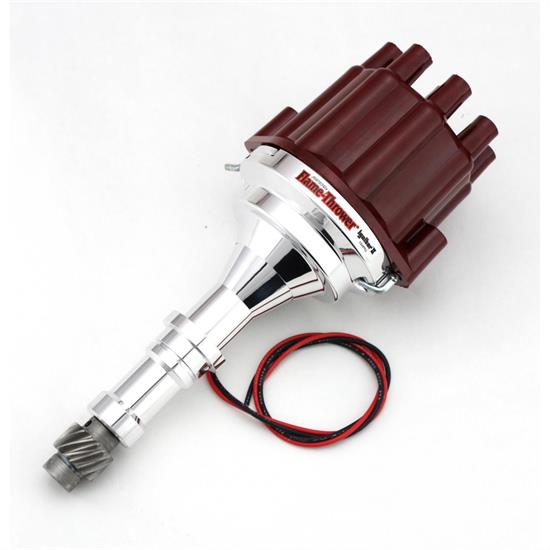

    • PerTronix D7151801 Flame-Thrower Electronic Distributor Billet Buick V8 215-350 Plug and Play with Ignitor III Technology Non Vacuum Advance Red Cap
    • PerTronix D7151801 Flame-Thrower Electronic Distributor Billet Buick V8 215-350 Plug and Play with Ignitor III Technology Non Vacuum Advance Red Cap

    Charts

    Warranty Information

    Click for details

    Speedway Motors cannot facilitate the return of defective PerTronix products as they have requested to handle these directly with the consumer. Purchasers of a product who wish to make a warranty claim based upon an alleged product defect should email the

    CARB Warning

    For race/ off road use or for use on pre-1966 vehicles.

    Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway, or if installed in vehicles model-year 1965 or older; motorcycles model-year 1977 or older; or off-highway recreational vehicles (such as off-road motorcycles and all-terrain vehicles) model-year 1996 and older. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.

    PerTronix D7151801 Specifications

    KEY SPECS
    MFG. Part #D7151801
    BrandPerTronix
    Cap TypeSocket / Female
    Advance TypeMechanical
    GENERAL
    External Ignition Box RequiredNo
    Cap Terminal StyleSocket / Female
    Trigger StyleMagnetic
    Hall EffectYes
    Sync SignalNo
    Trigger SensorsDual
    Gear MaterialSteel
    Gear RotationStandard
    Distributor Cap ColorRed
    Ignition Box RequiredNo
    Mechanical Tach DriveNo
    Slip CollarNo
    Housing MaterialBillet Aluminum
    Housing FinishPolished
    Marine UseNo
    Sold in QuantityEach
    GTIN Code694342536282

    Ratings & Reviews

    Questions & Answers

    Fitment

    • Buick 350

    • Buick 350

    • Buick 350

    • Buick 350

    • Buick 350

    • Buick 350

    • Buick 215

    • Buick 215

    • Buick 340

    • Buick 350

    • Buick 350

    • Buick 350

    • 215 Buick Small Block V8

    • 215 Buick Small Block V8
